1. Overview

DoliChocolat turns Dolibarr into a vertical...

3 people are viewing this right now

Product variants

Quantity

Guarantee safe & secure checkout

View full product details

Description

1. Overview

DoliChocolat turns Dolibarr into a vertical ERP for artisanal and industrial chocolate factories. It covers the whole business chain from the cocoa bean to the end customer: sourcing, cocoa processing, recipes and formulation, production (MES/GPAO), tempering, moulding, enrobing, packaging, quality, laboratory, HACCP, traceability, stock, maintenance (CMMS), energy, costing and performance analysis — with no external software.

Technical profile

· Dolibarr 16.0+ (validated on 17.0.3); PHP 7.1 minimum, PHP 8.x compatible; MySQL/MariaDB.

· Module number 523800, rights class 'dolichocolat', family 'products'.

· Dependencies: modSociete (Third parties) and modProduct (Products).

· 24 business objects, 24 SQL tables, 23 permissions in 9 groups, 31 menu entries.

· 5 languages: French, English, Italian, German, Spanish (595 keys each).

· Object-oriented: every object extends CommonObject and uses createCommon/fetchCommon/updateCommon/deleteCommon.

· REST API, scheduled job (cron), boxes, extrafields-ready, GED and multi-entity support.

2. Architecture

The module follows the official Dolibarr external-module layout and is generated from a single field specification, which keeps the SQL schema, the PHP classes, the list/card pages and the language files structurally in sync.

Path	Responsibility
core/modules/modDoliChocolat.class.php	Module descriptor: number, rights, menus, constants, boxes, cron job, init()/remove().
class/<object>.class.php	One CommonObject subclass per business object (24), with $fields, create/fetch/update/delete, getNomUrl and getLibStatut.
class/dolichocolatsampledata.class.php	Demonstration dataset generator and purge (import_key tagged, versioned).
class/dolichocolatcron.class.php	Scheduled job: recompute yields, late orders, machine availability and HACCP deviations.
class/api_dolichocolat.class.php	REST API (Restler): list, read, create, update, delete and the traceability endpoint.
lib/dolichocolat.lib.php	Shared helpers: registry access, permissions, vocabularies, KPI card renderer, schema self-heal.
lib/dolichocolat_objects.php	Generated object registry: class, table, picto, menu label, fields, hub/lines relations.
lib/dolichocolat_menu.php	Menu synchronisation helper and the in-page tab bar.
objectlist.inc.php / objectcard.inc.php	Generic list and card engines driven by the registry.
<object>_list.php / <object>_card.php	Thin stubs setting $dch_object_key and including the generic engine.

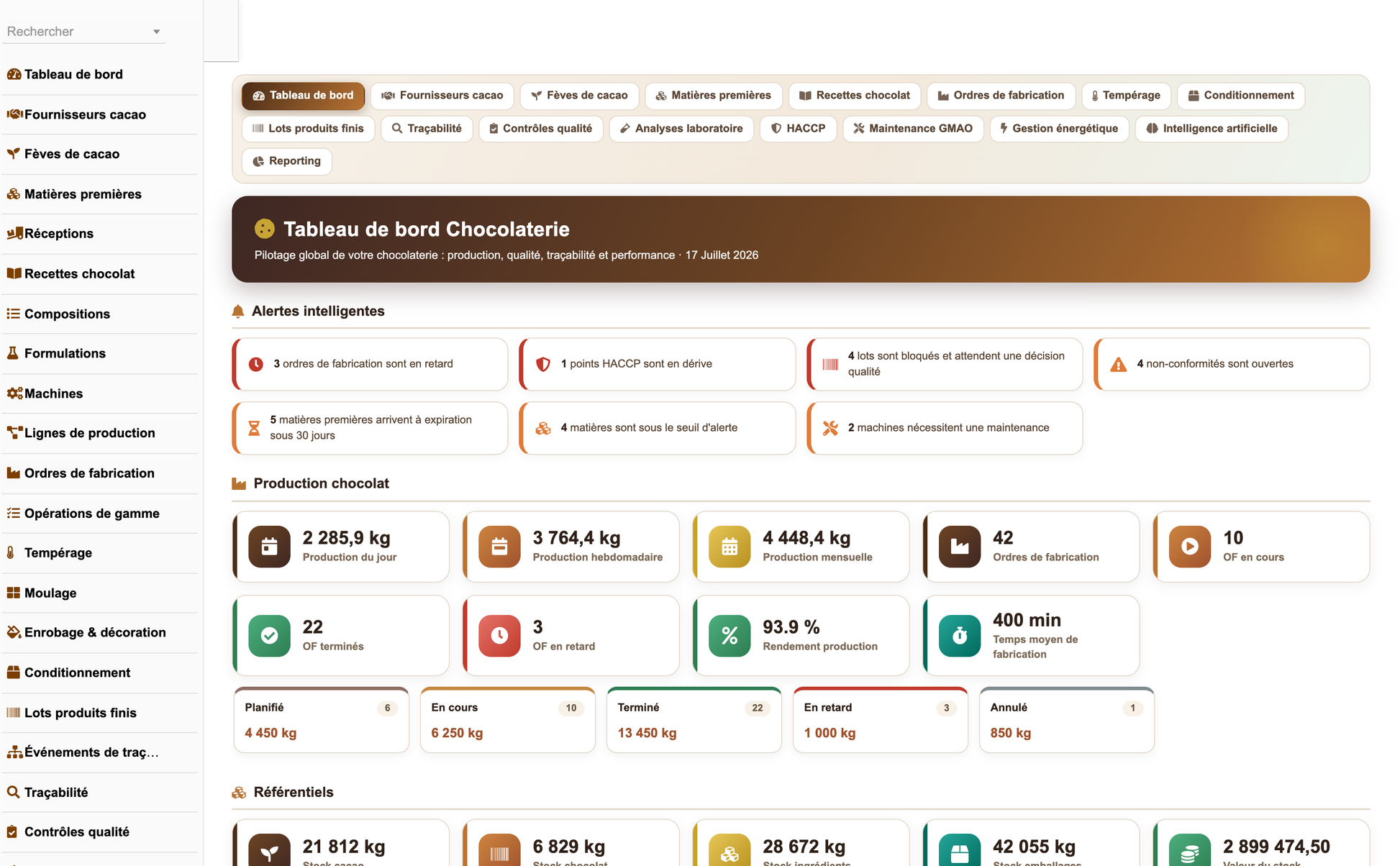

dashboard.php	Chocolate-charter dashboard: KPI cards, gauges, charts, alerts, kanban, timeline.

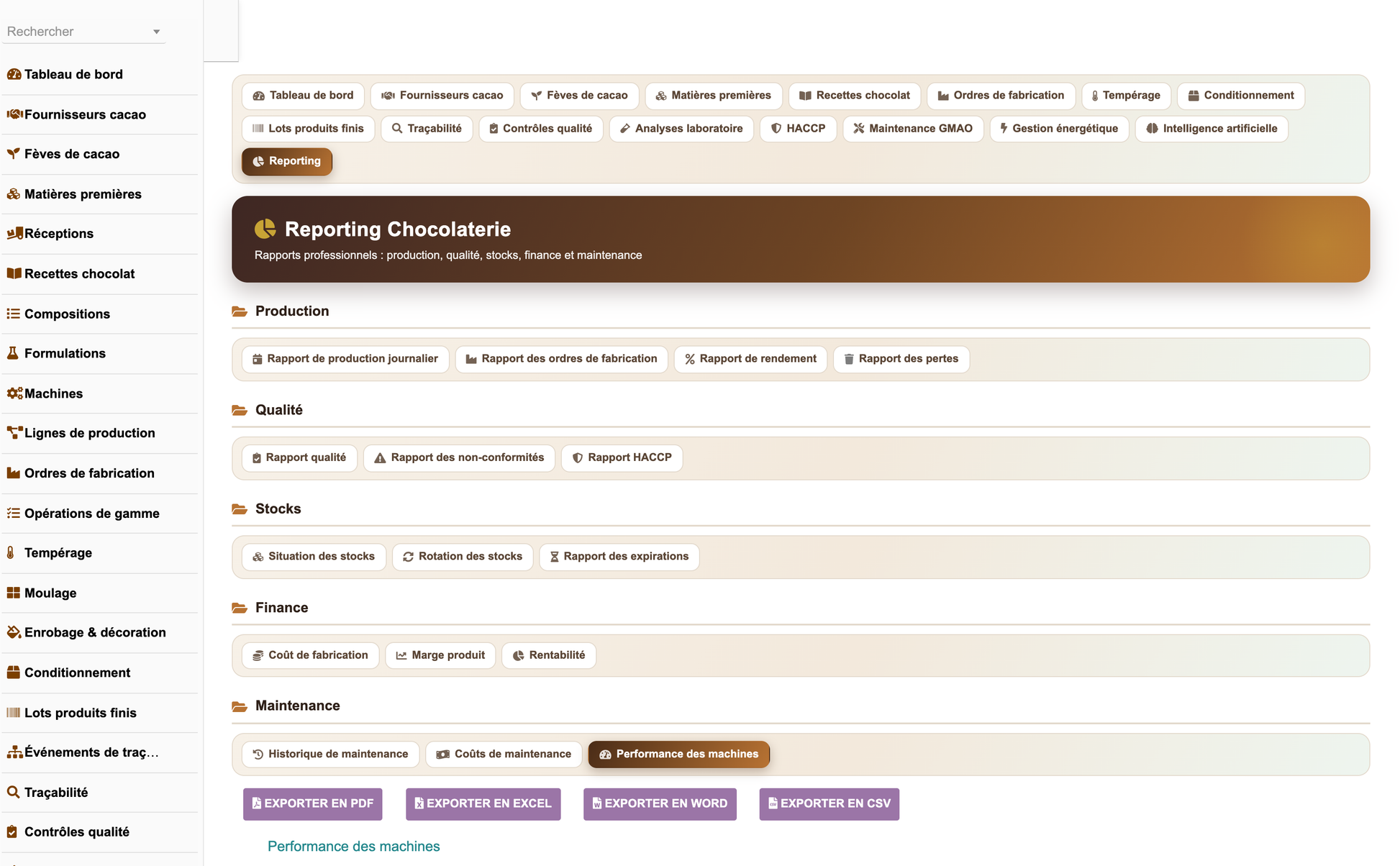

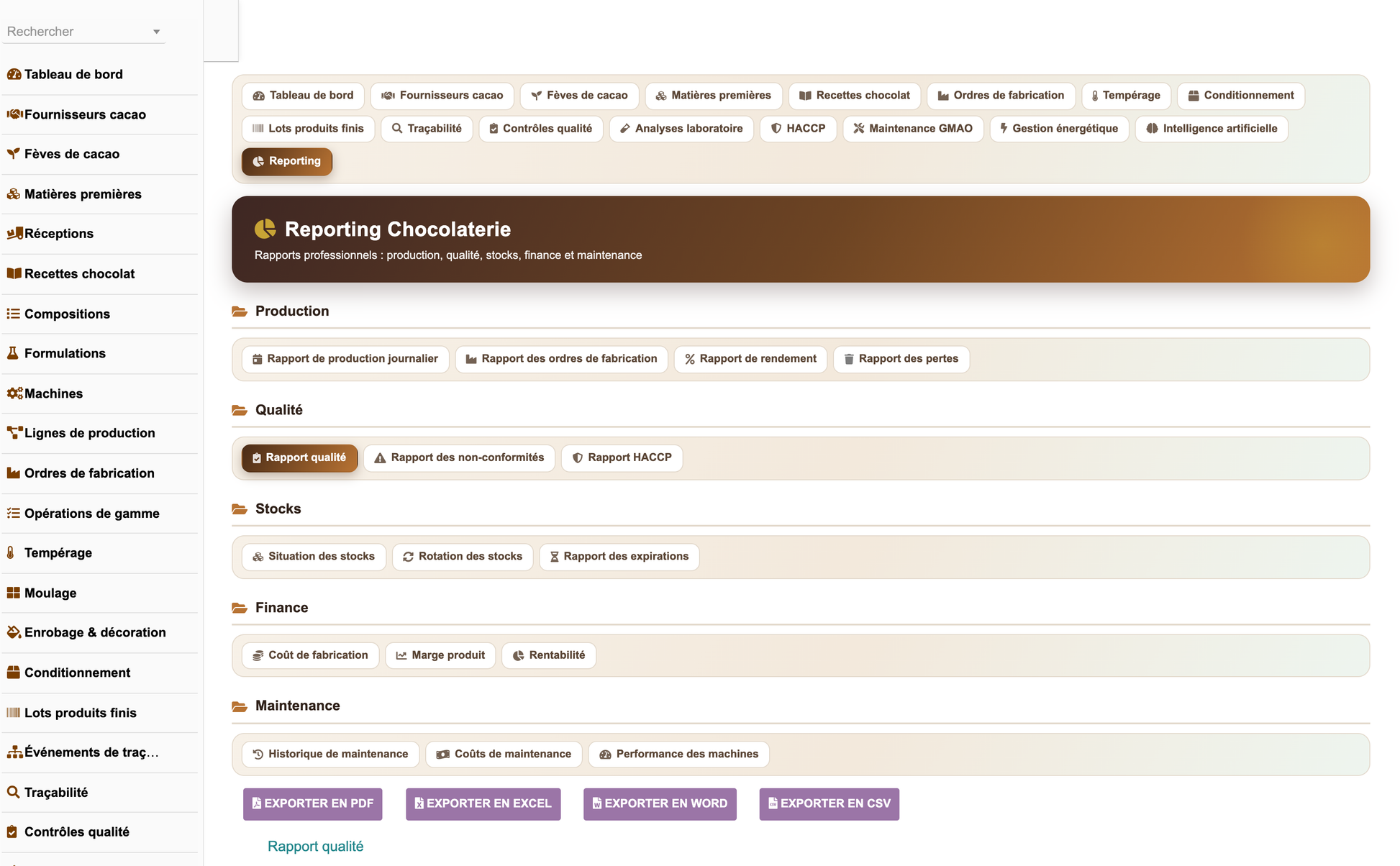

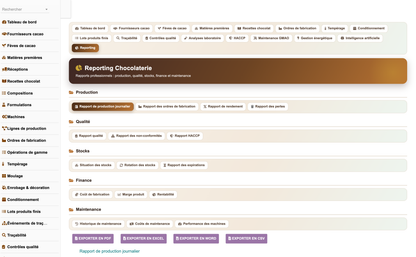

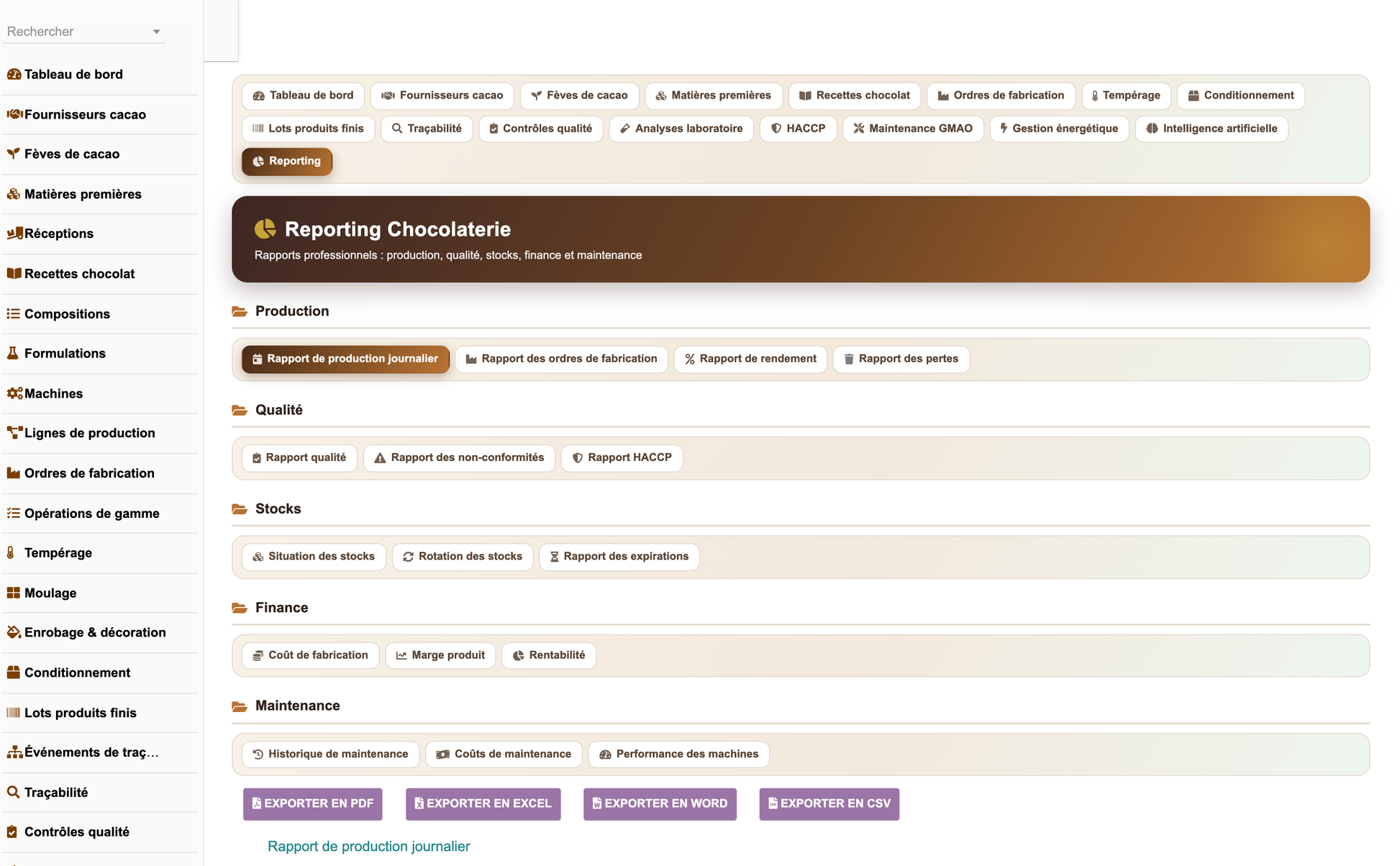

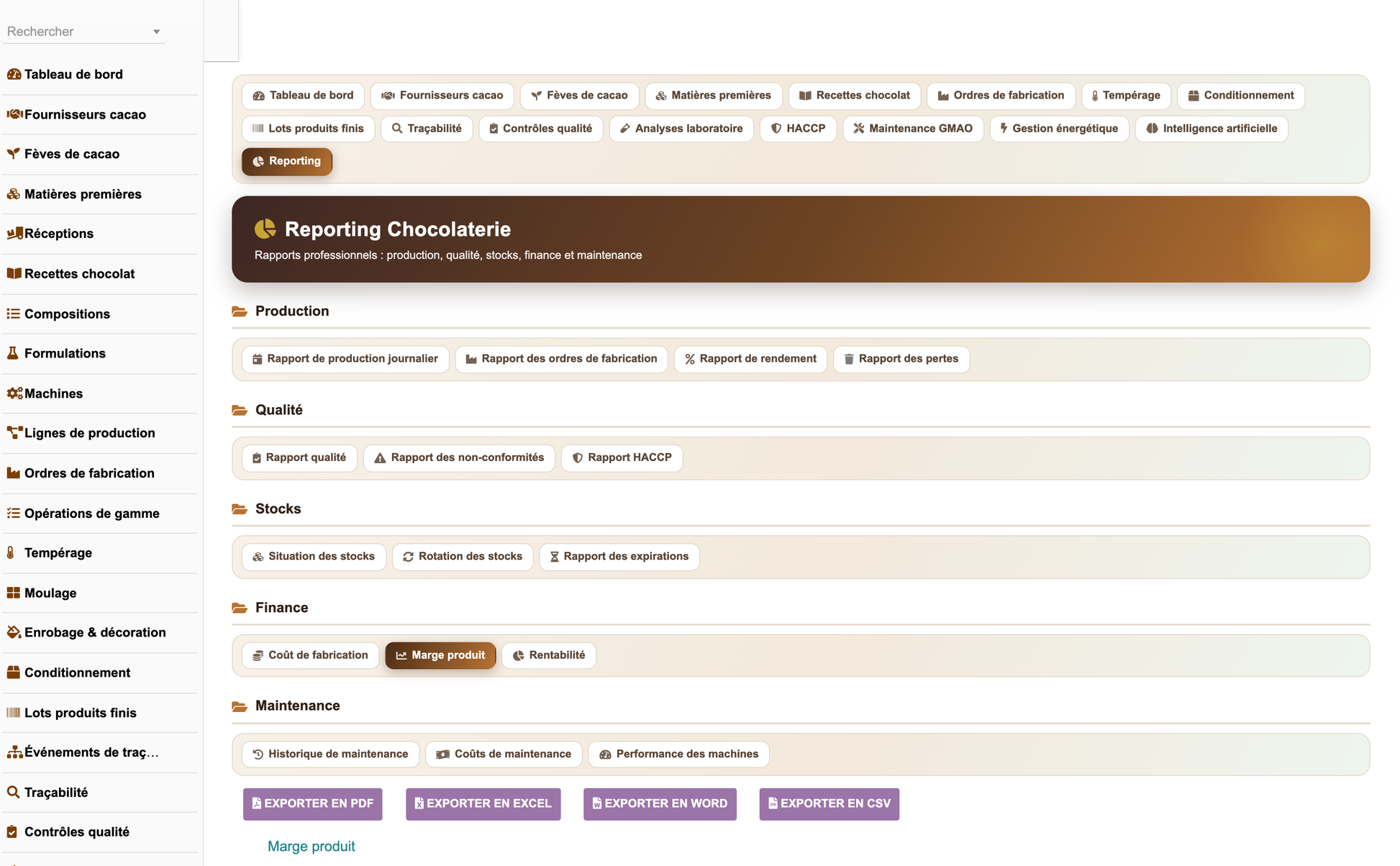

reporting.php	16 reports with PDF / Excel / Word / CSV export.
traceability.php / haccp.php / ai.php	Bespoke pages: traceability chain, HACCP cockpit, AI workspace.

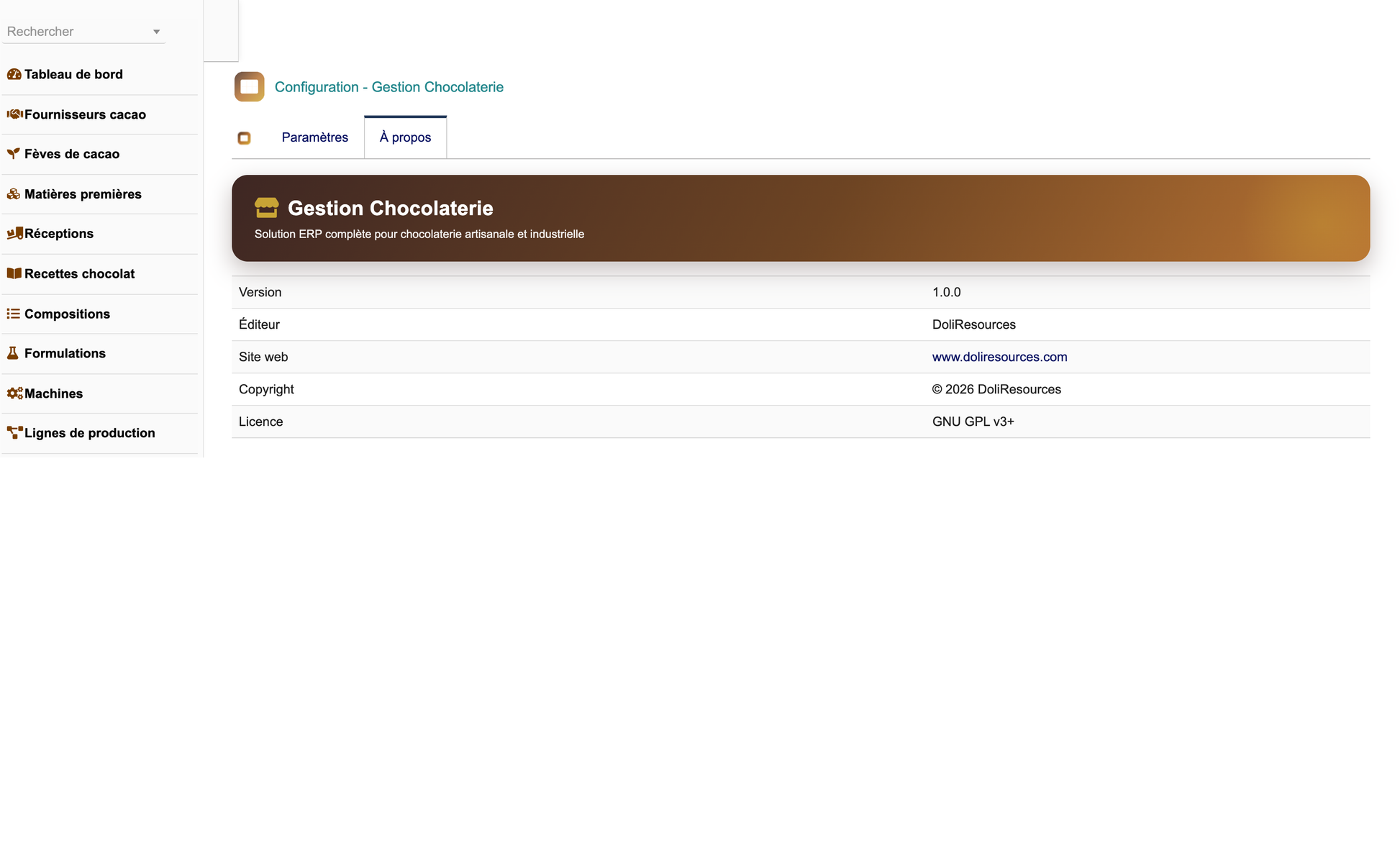

admin/setup.php / admin/about.php	Configuration page and about page.
*sql/llx_dch_.sql**	Table definitions and indexes (24 tables).
langs/<lang>/dolichocolat.lang	Language files (fr_FR, en_US, es_ES, it_IT, de_DE).
css/dolichocolat.css.php / js/dolichocolat.js.php	Module stylesheet (chocolate charter) and script, injected via module_parts.

Design decisions

· Every language key is prefixed 'Dch'. Dolibarr merges all active modules' language files into a single tab_translate and the last loaded value wins, so unprefixed generic keys (Ref, Qty, Note, Machine) silently render another module's wording. The prefix removes the collision surface instead of fighting it at runtime.

· table_element carries no llx_ prefix; the live prefix comes from $db->prefix().

· ensureSchema() runs after _load_tables(): Dolibarr only CREATEs tables and never ALTERs them, so new columns are added on upgrade by parsing the SQL files.

· Menu positions use a module-unique high base (100000) and every URL is module-local, so the (menu_handler, fk_menu, position, url, entity) dedup key cannot collide with another module.

· Costs and margins ignore rows without both a sale price and a cost: a missing value is unknown, not zero.

3. Data model and SQL tables

24 tables, all prefixed llx_dch_. Every table shares the same technical envelope: rowid (auto-increment PK), entity (multi-company), status, date_creation, tms, fk_user_creat, fk_user_modif and import_key (used to tag and purge demonstration data). Column counts below are read from the live schema.

Table	Object	Cols	Purpose

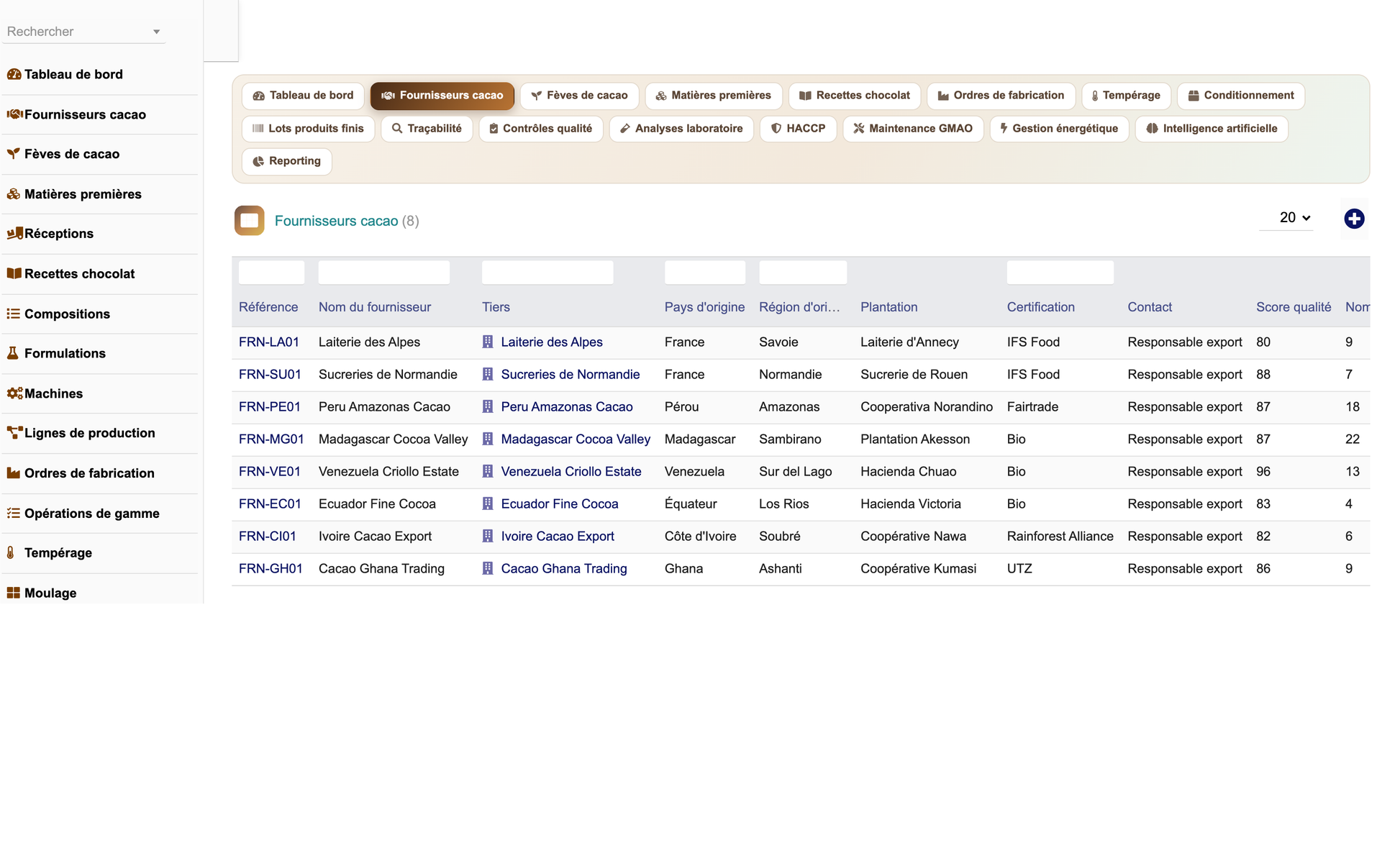

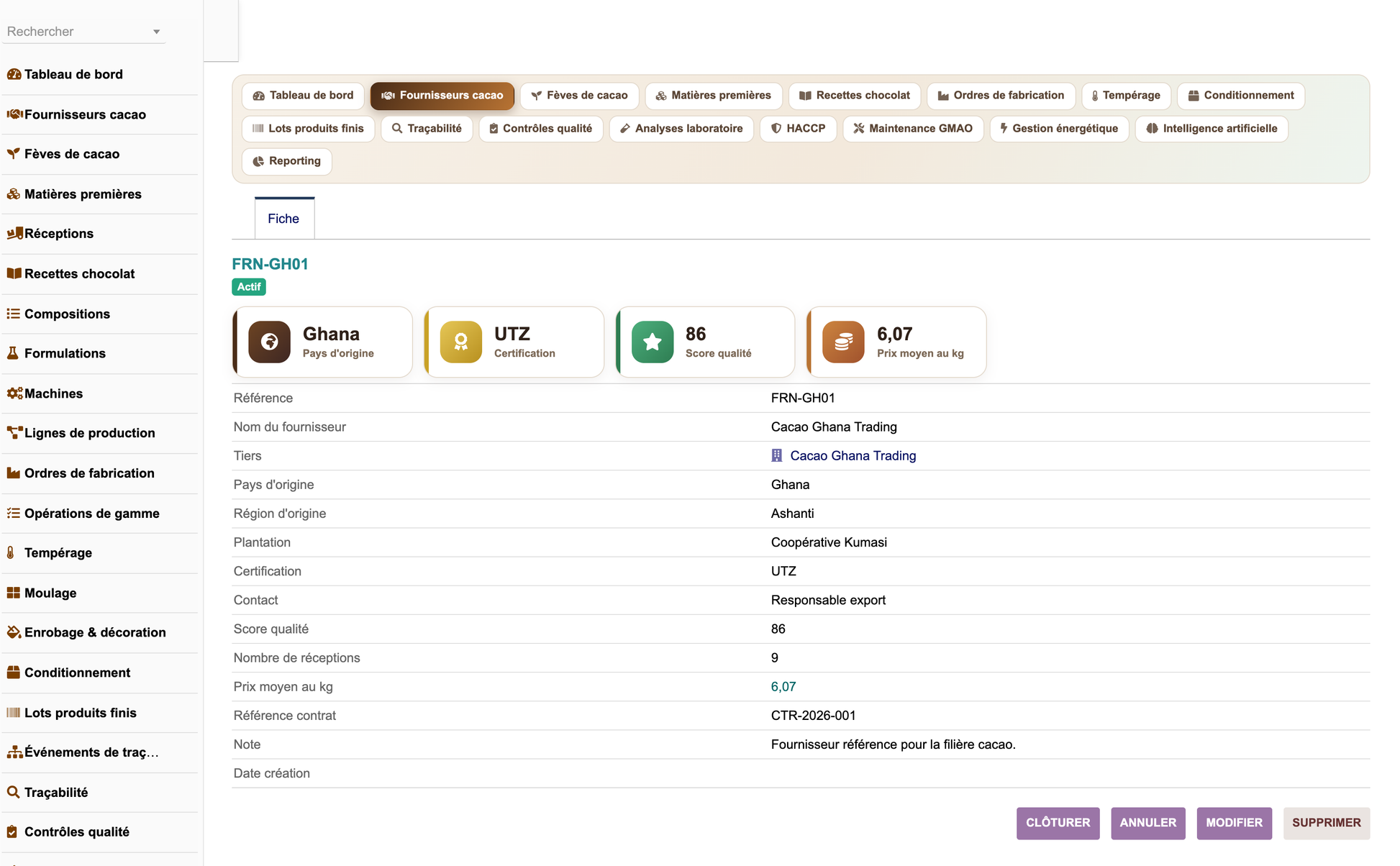

llx_dch_supplier	Cocoa supplier	21	Supplier of cocoa or ingredients: origin country/region, plantation, certification, quality score, average price per kg. Linked to llx_societe.

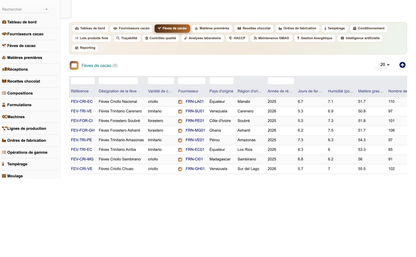

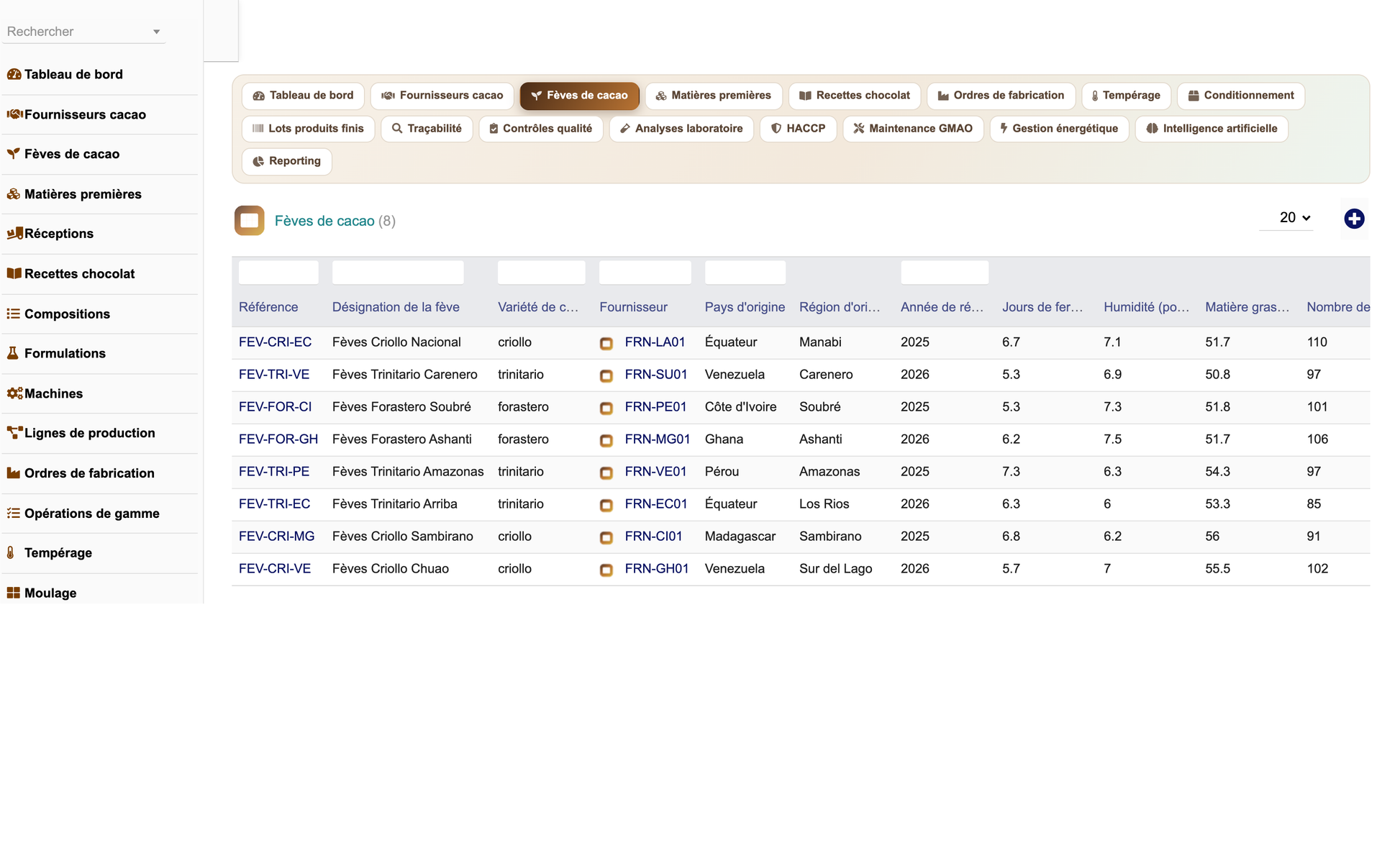

llx_dch_bean	Cocoa bean	24	Bean reference: variety (Criollo/Forastero/Trinitario), origin, harvest year, fermentation days, humidity, fat content, aroma profile, stock.

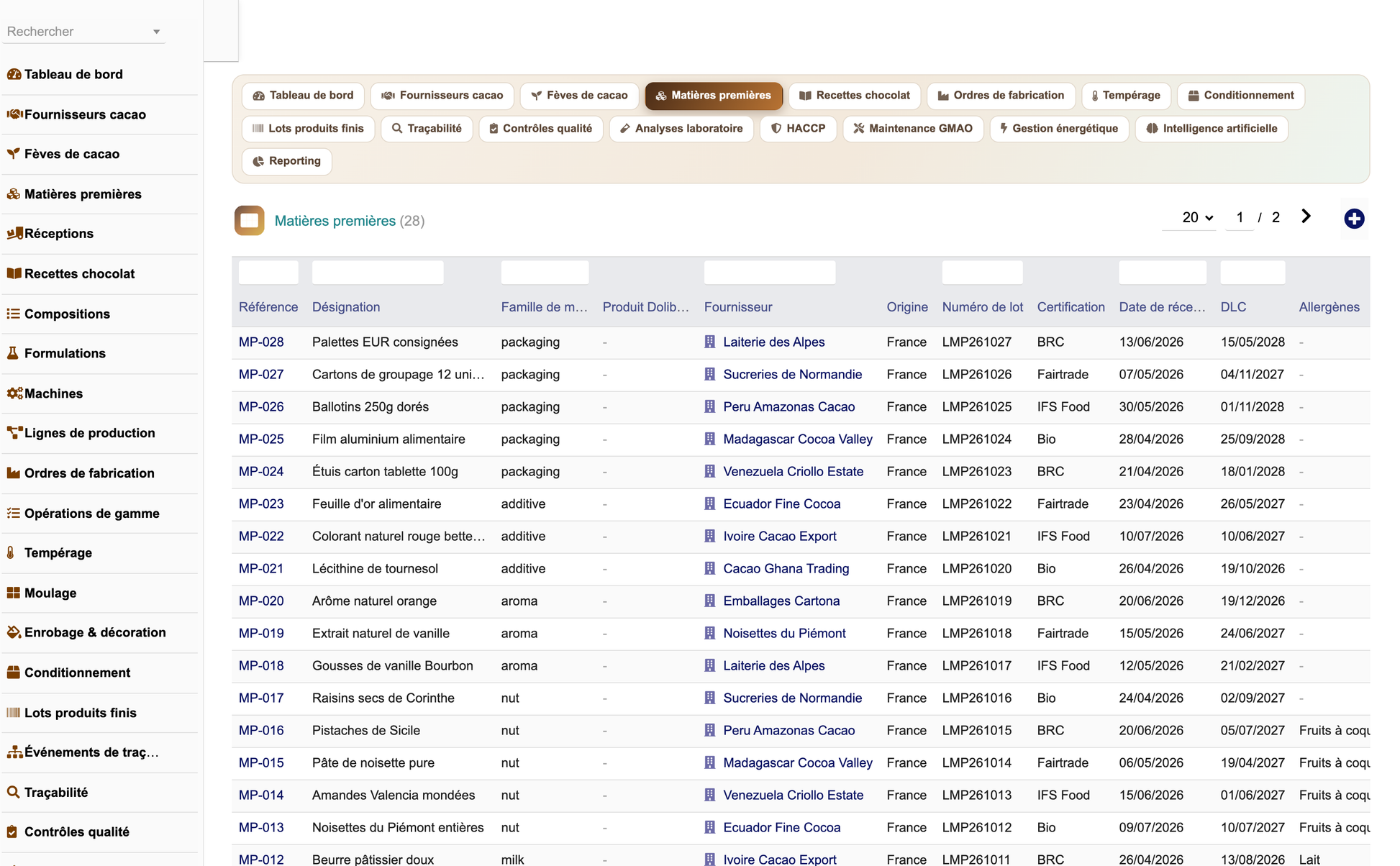

llx_dch_material	Raw material	25	Cocoa mass/butter/powder, sugar, milk, nuts, aromas, additives, packaging. Carries lot number, DLC, allergens, cost/kg, stock and alert threshold.

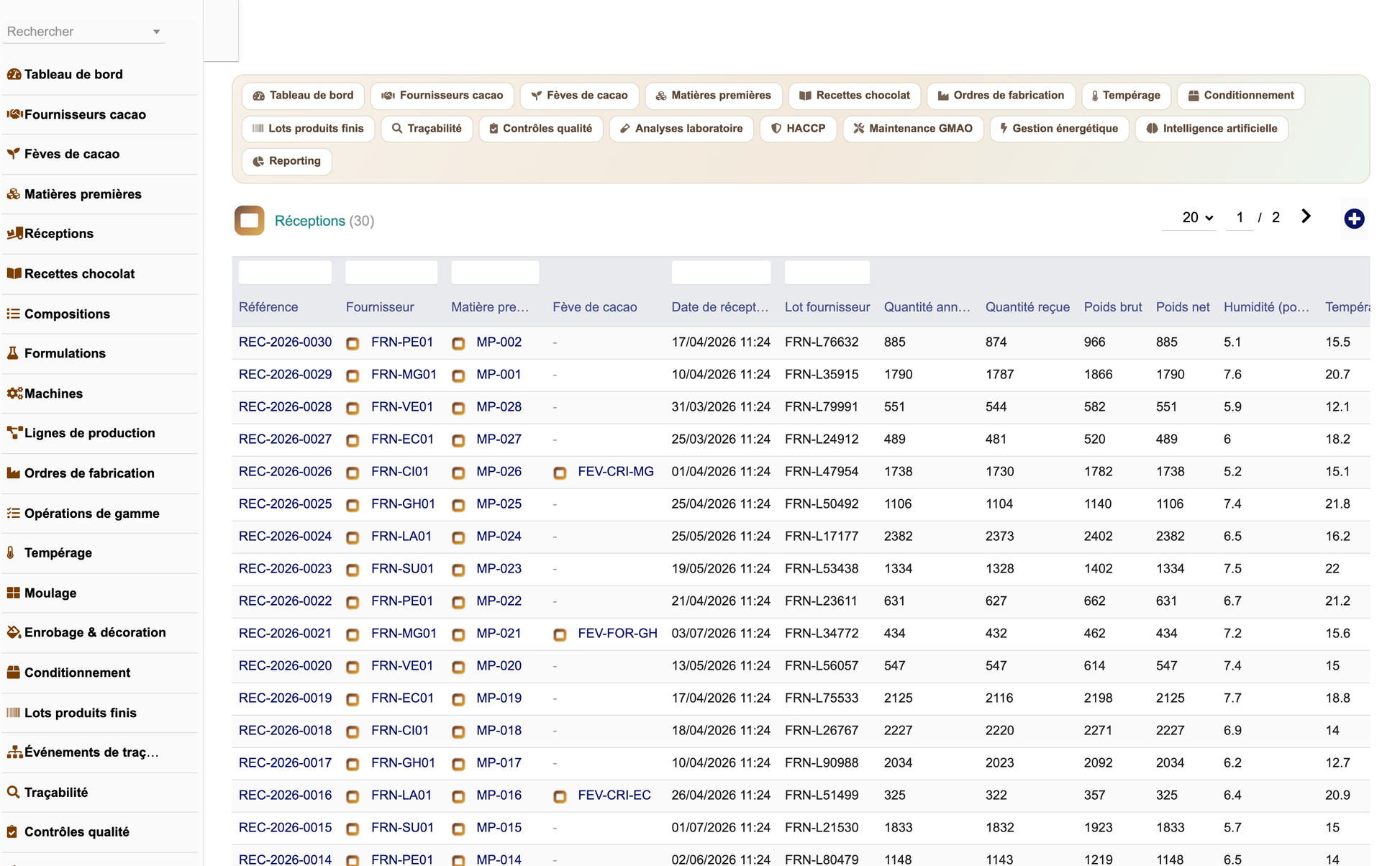

llx_dch_reception	Goods reception	25	Inbound reception with announced/received quantity, gross/net weight, humidity, temperature and control verdict.

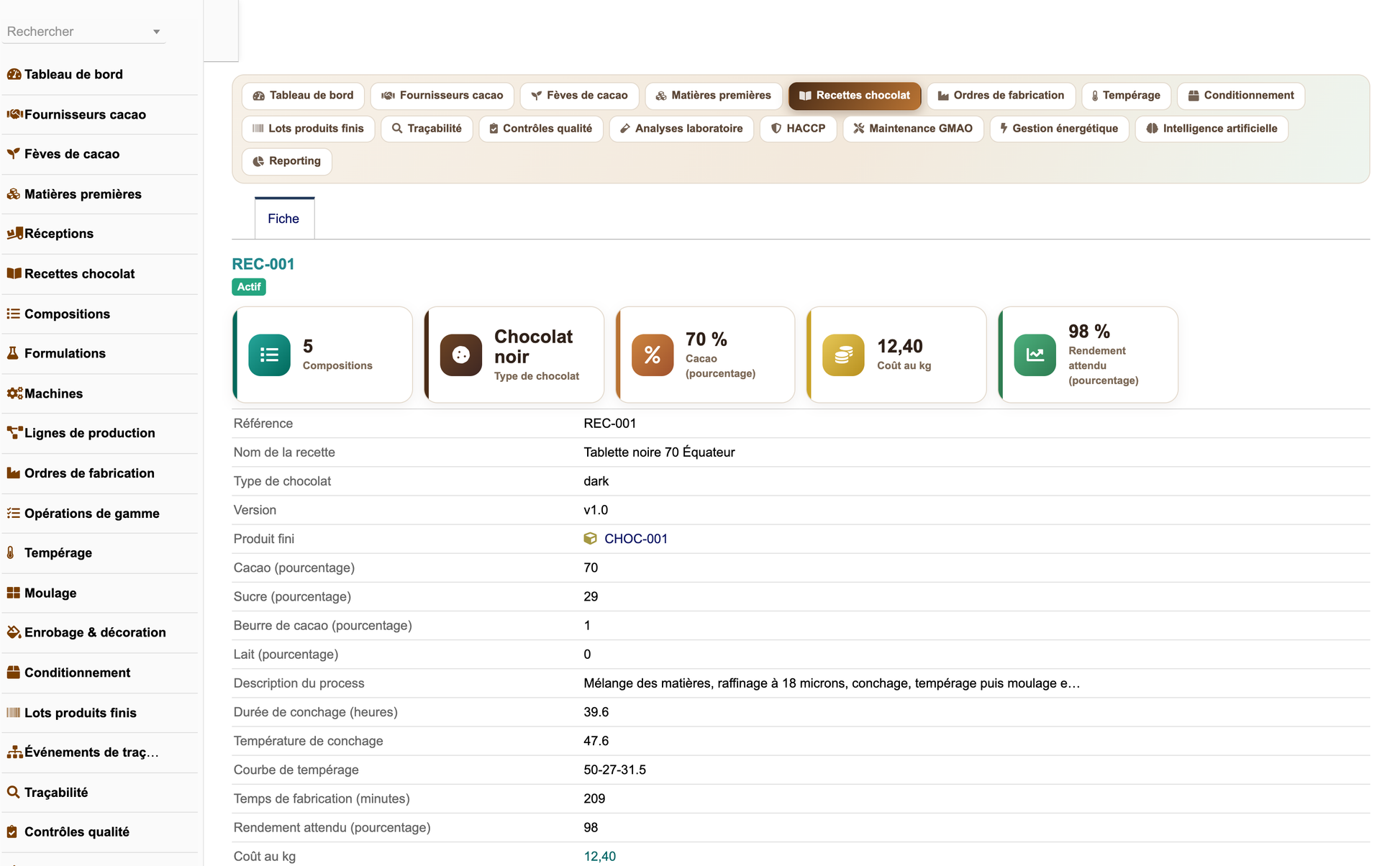

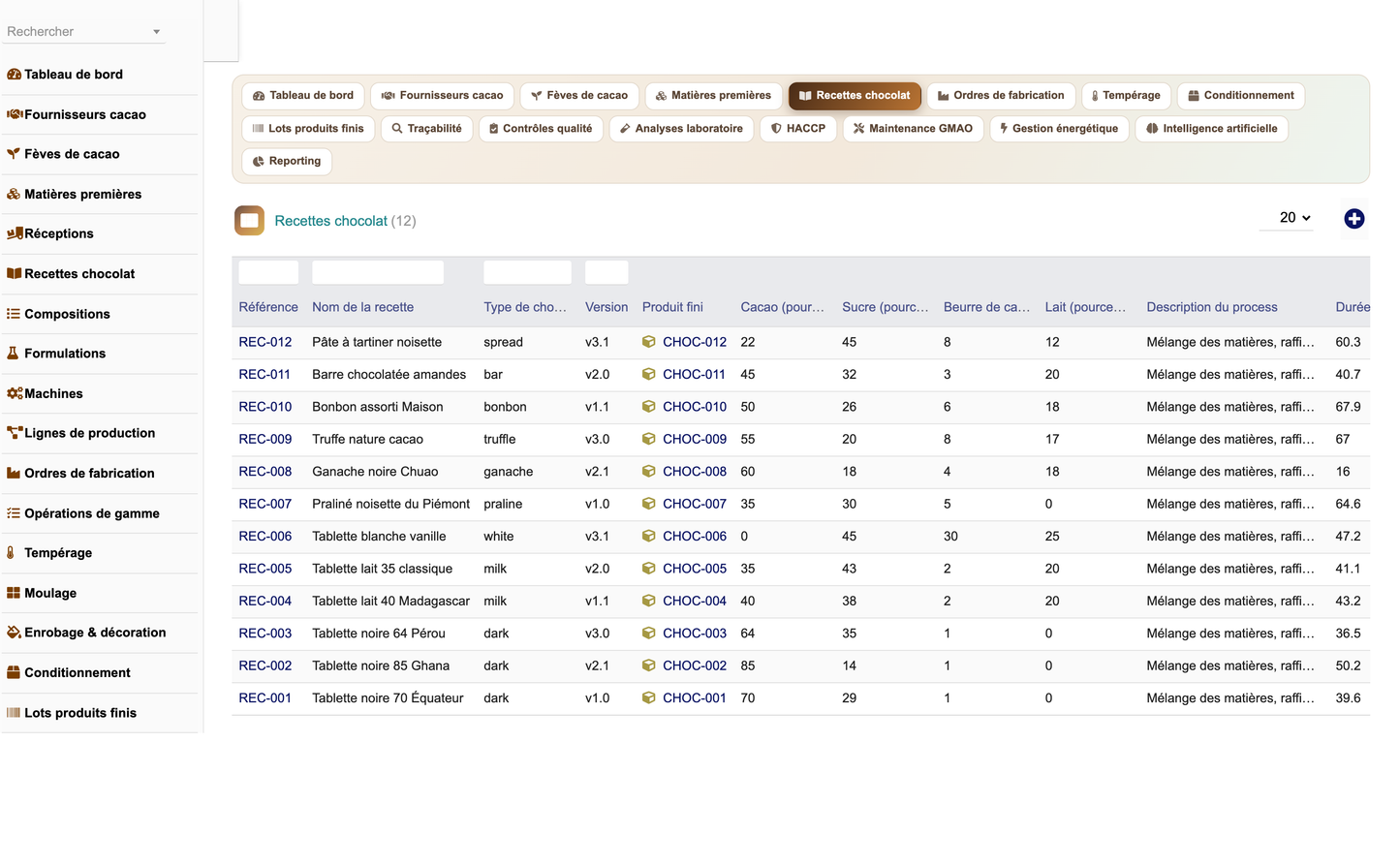

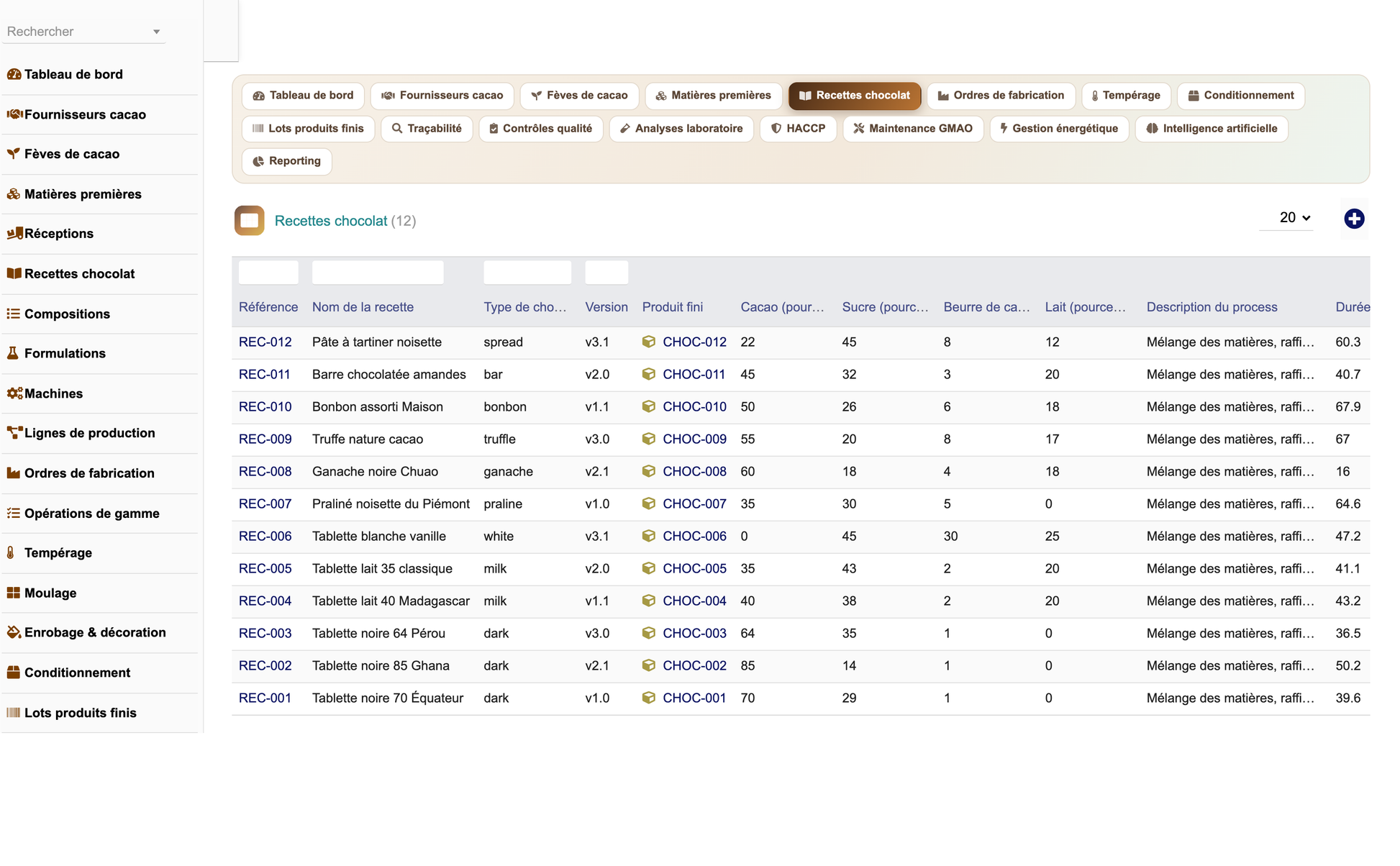

llx_dch_recipe	Chocolate recipe	32	Versioned recipe: chocolate type, cocoa/sugar/butter/milk percentages, process, conching, tempering curve, yield, cost, allergens, nutrition. Linked to llx_product.
llx_dch_recipe_line	Recipe composition line	16	One raw material in a recipe: dosage, unit, share of batch, line cost, allergen flag. Child of llx_dch_recipe.

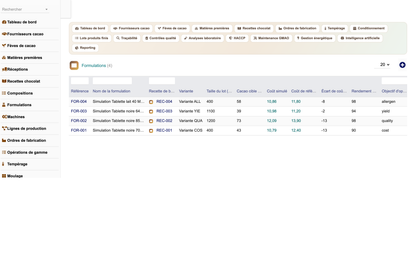

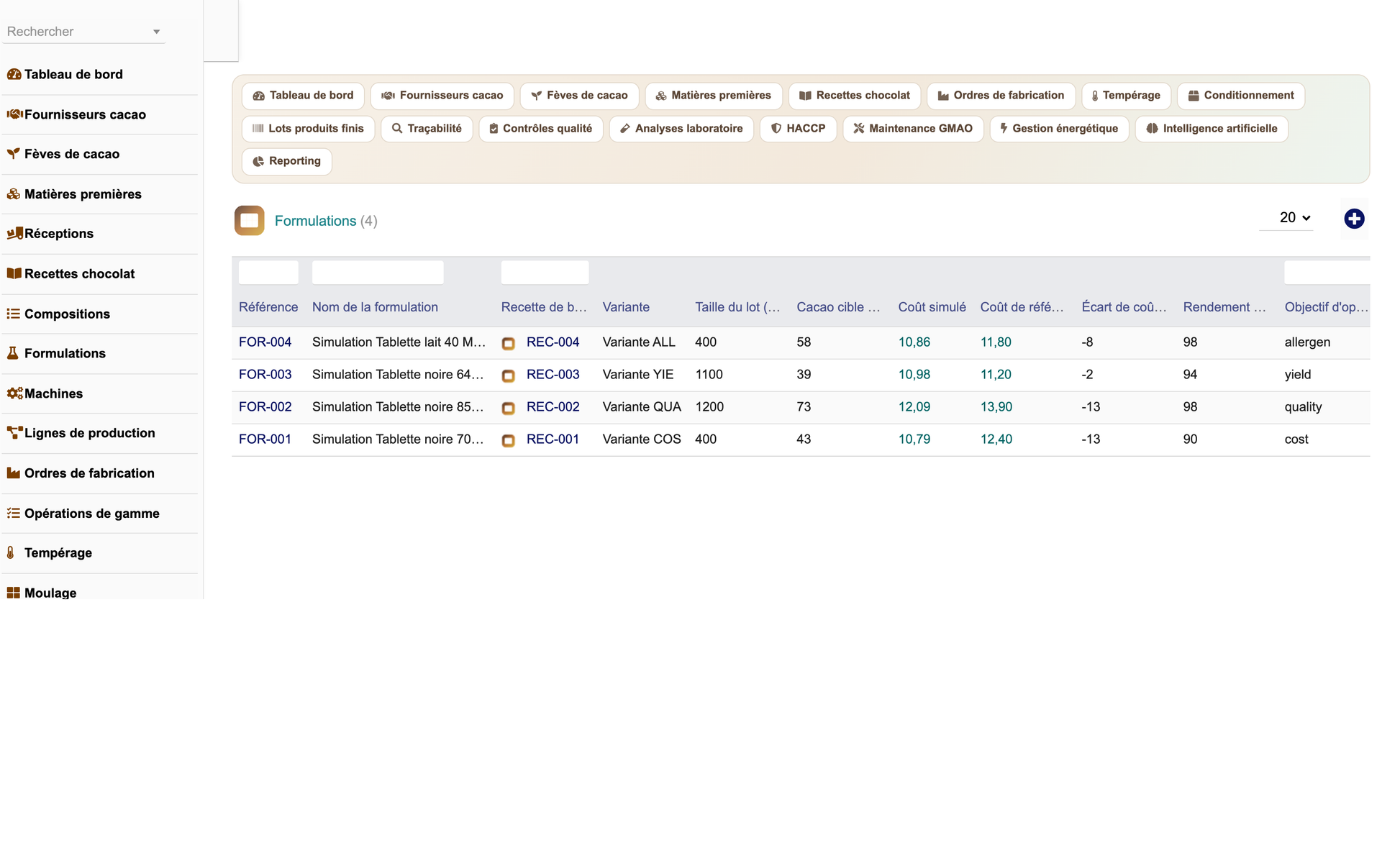

llx_dch_formulation	Formulation / simulation	21	Cost simulation of a recipe variant: batch size, target cocoa, simulated vs reference cost, deviation, optimization goal.

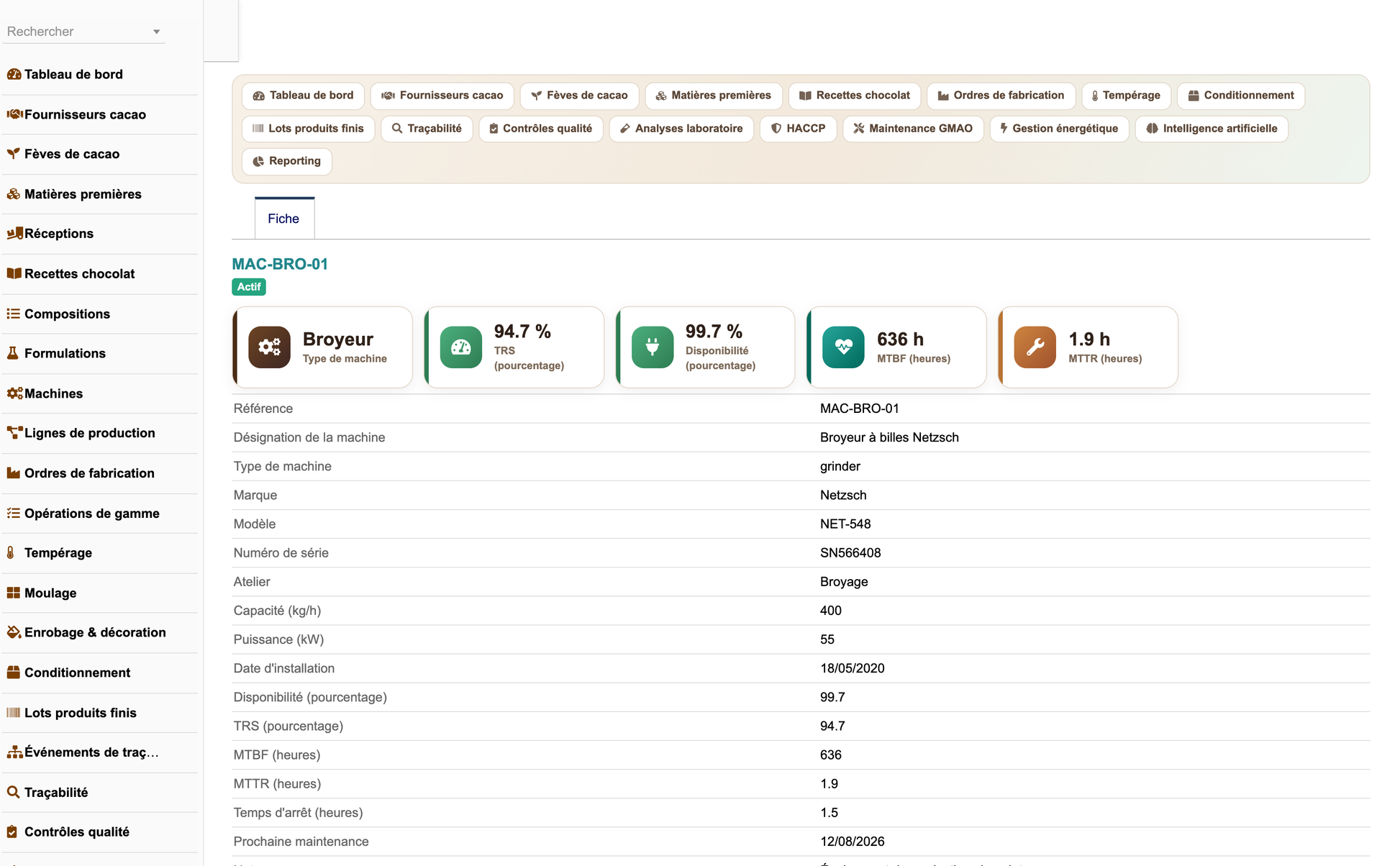

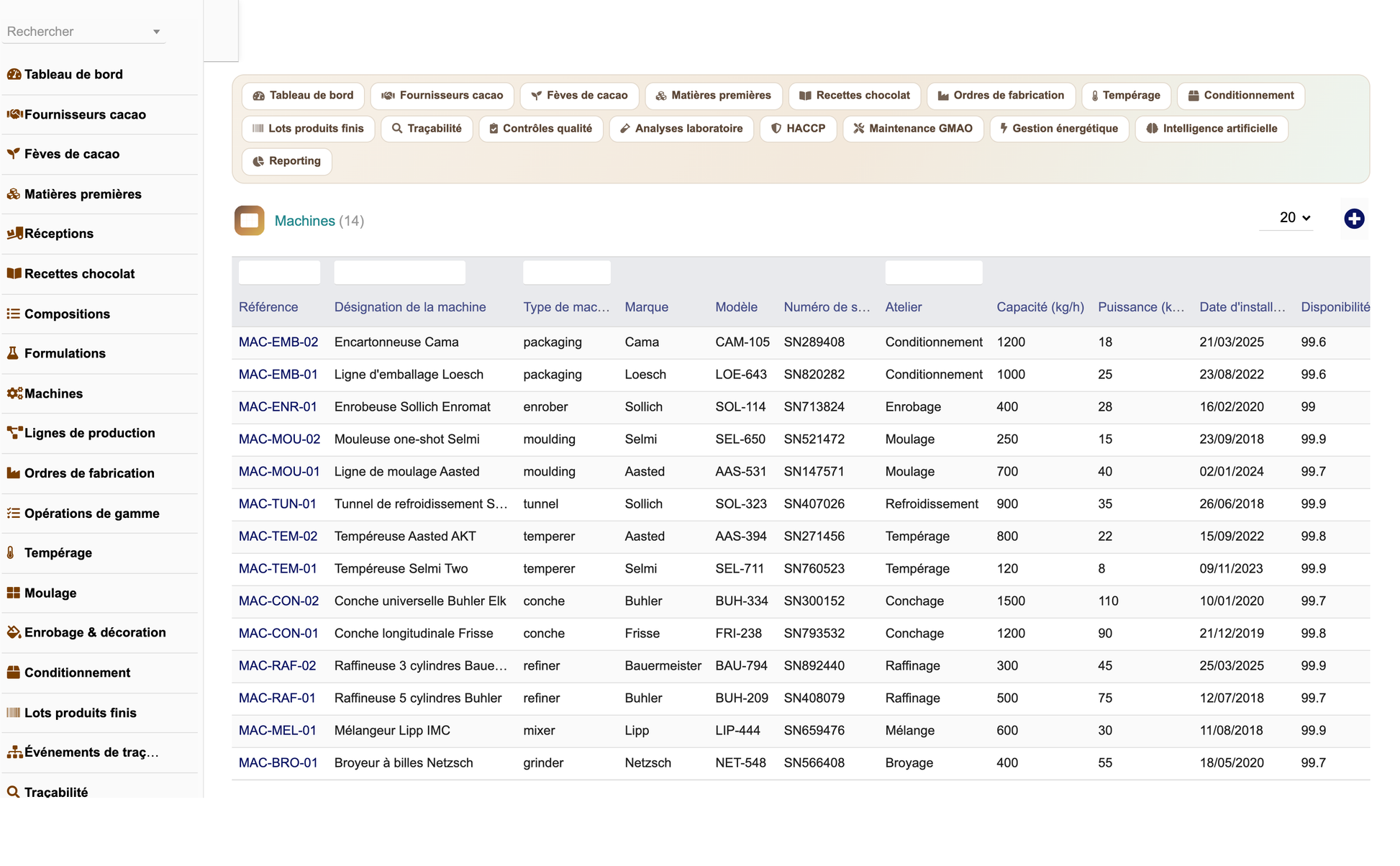

llx_dch_machine	Machine	25	Grinder, mixer, refiner, conche, temperer, cooling tunnel, moulding, enrober, packaging line. Carries capacity, power, OEE, availability, MTBF, MTTR.

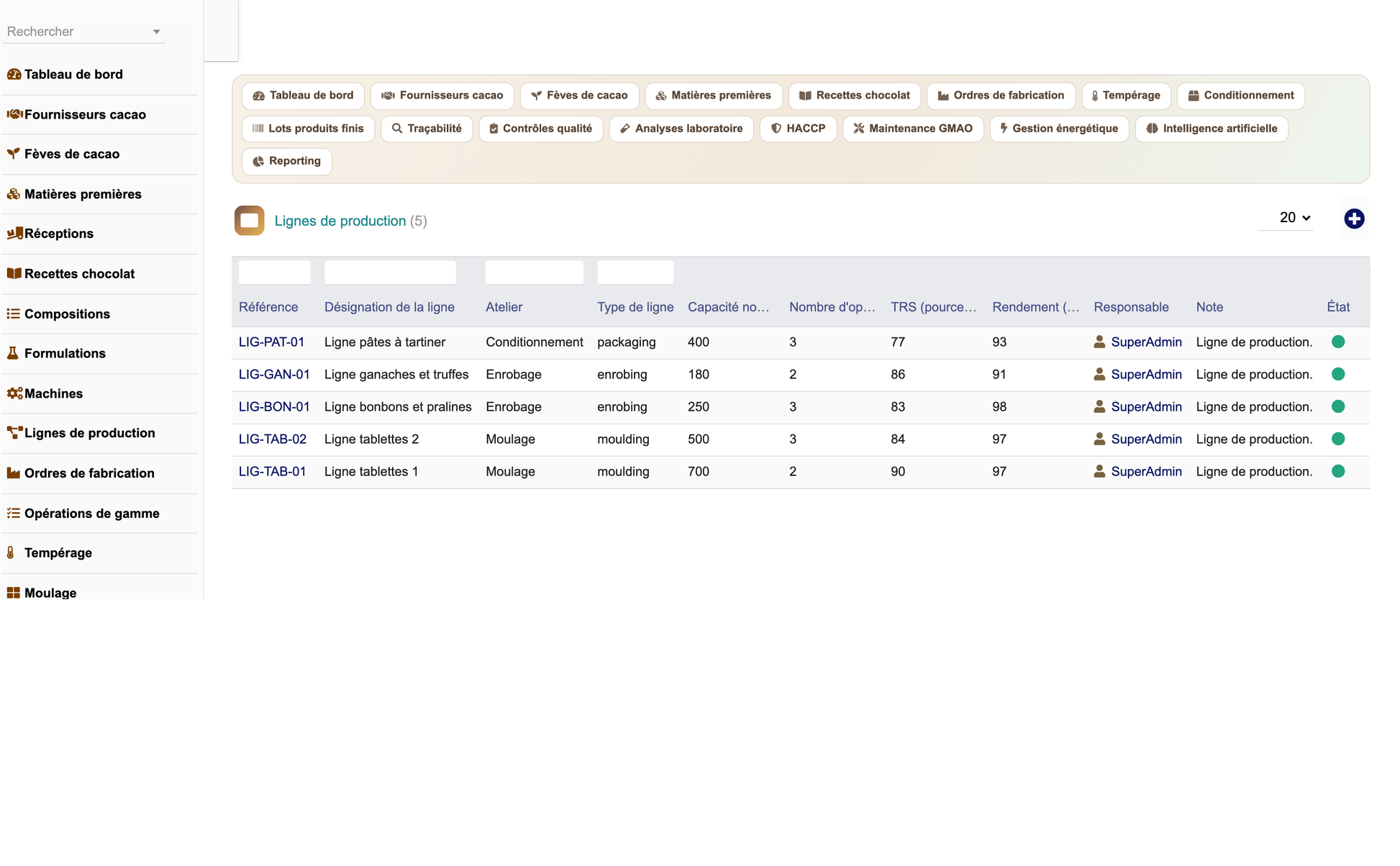

llx_dch_line	Production line	18	Workshop line with nominal capacity, operators, OEE and yield.

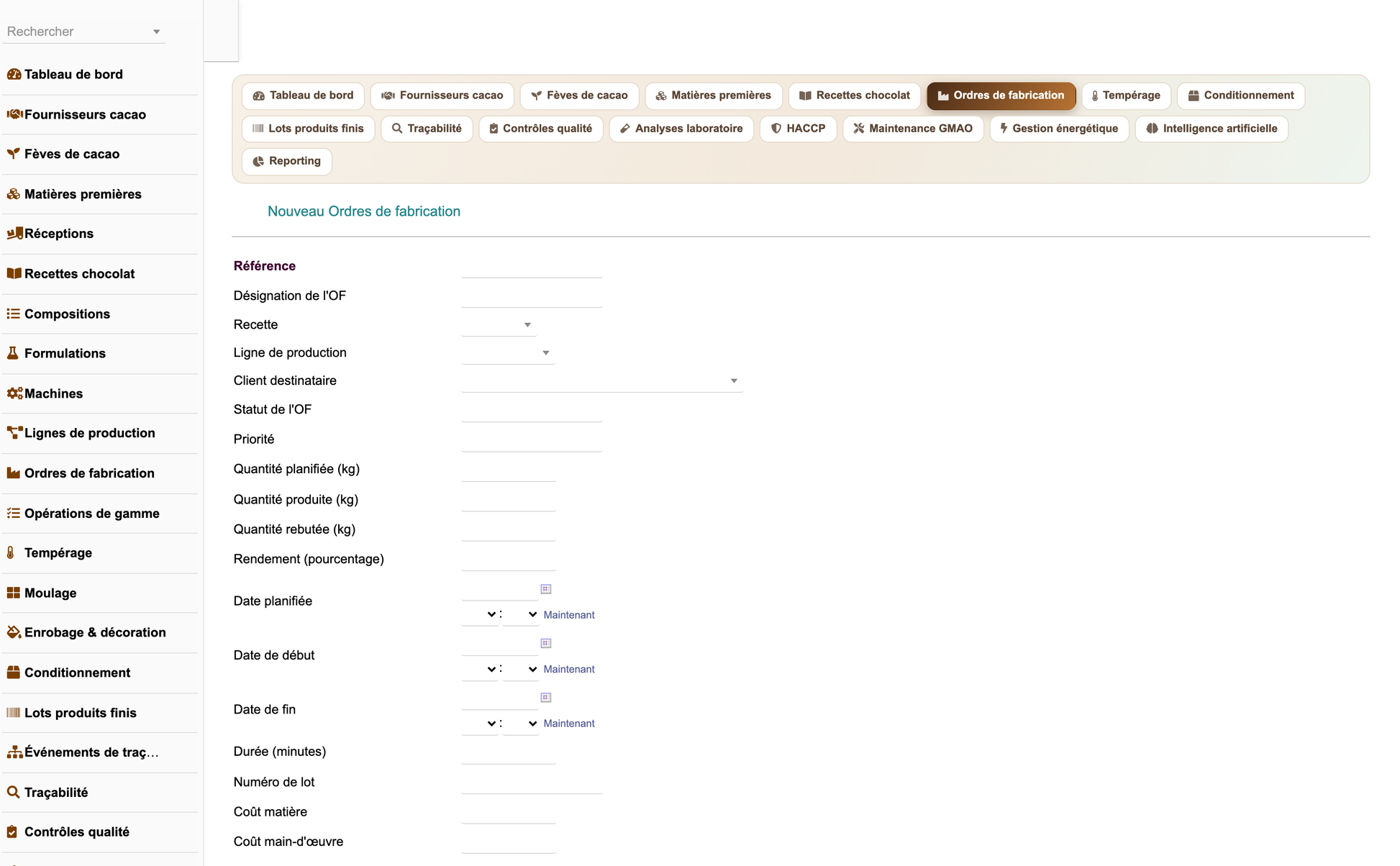

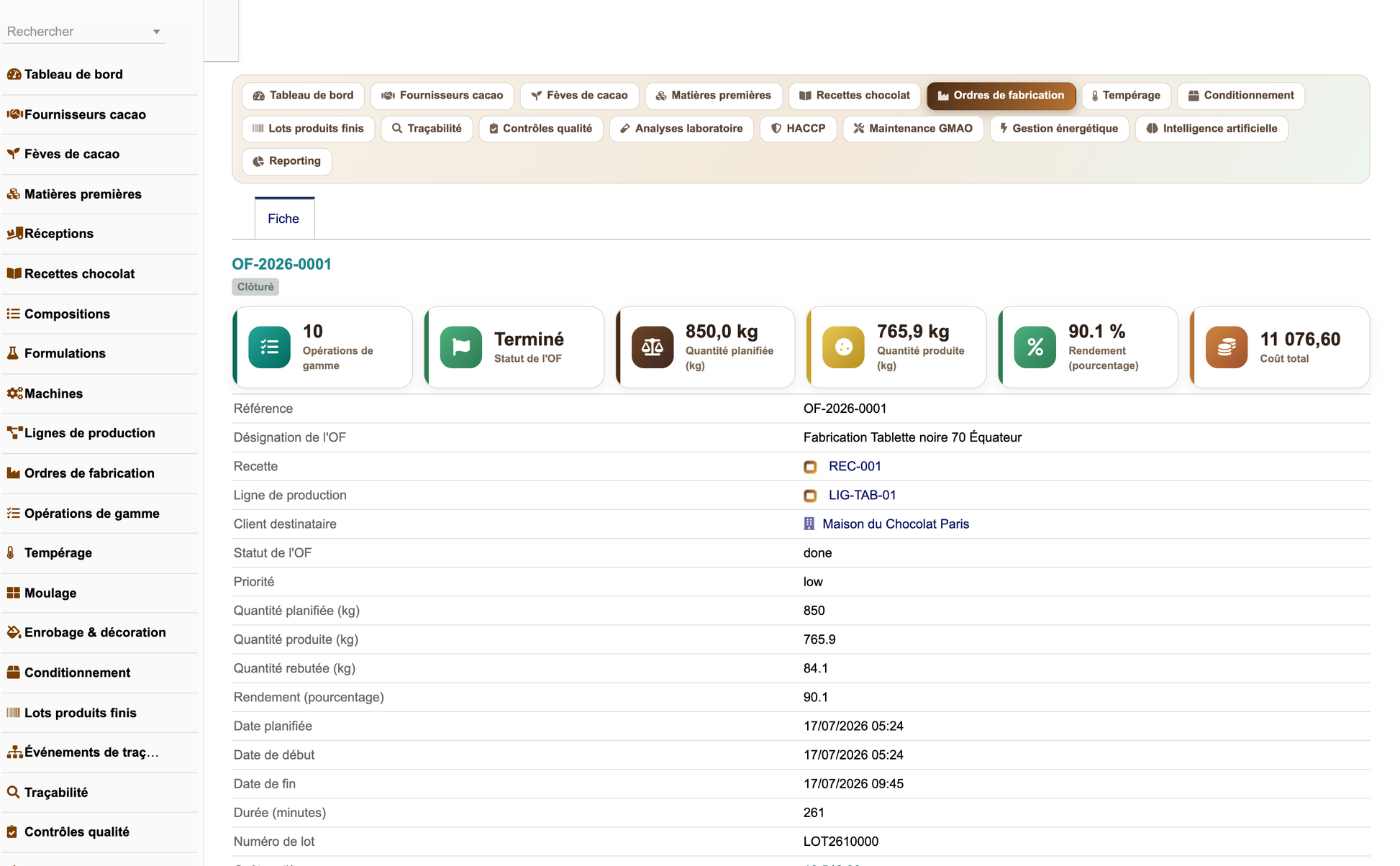

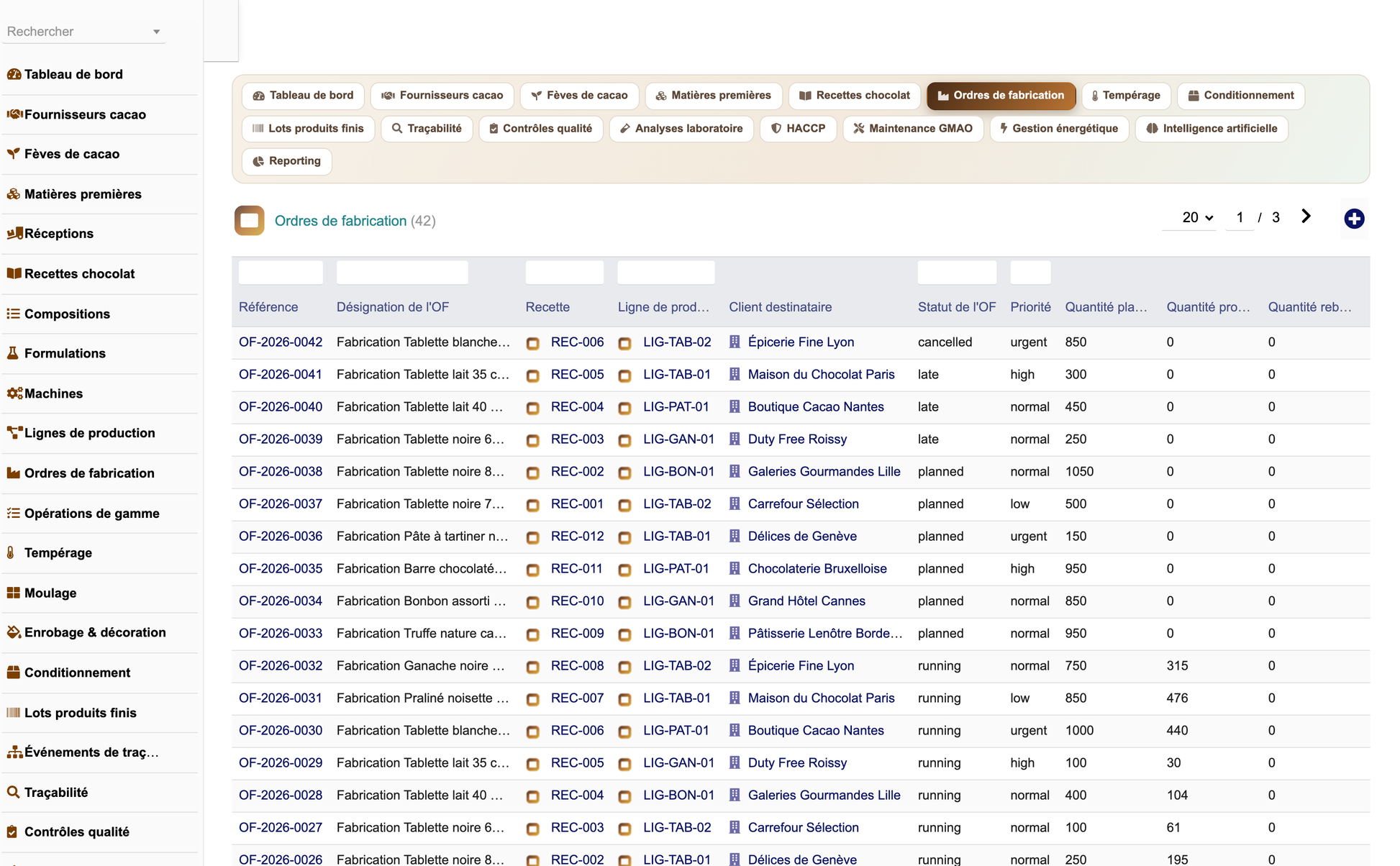

llx_dch_order	Production order	30	The GPAO hub: recipe, line, status, priority, planned/produced/scrap quantities, yield, dates, lot number and cost breakdown.

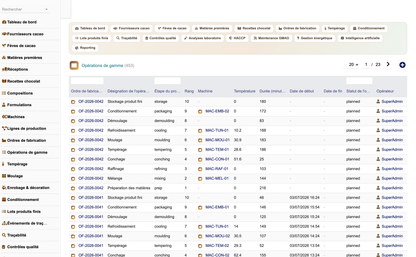

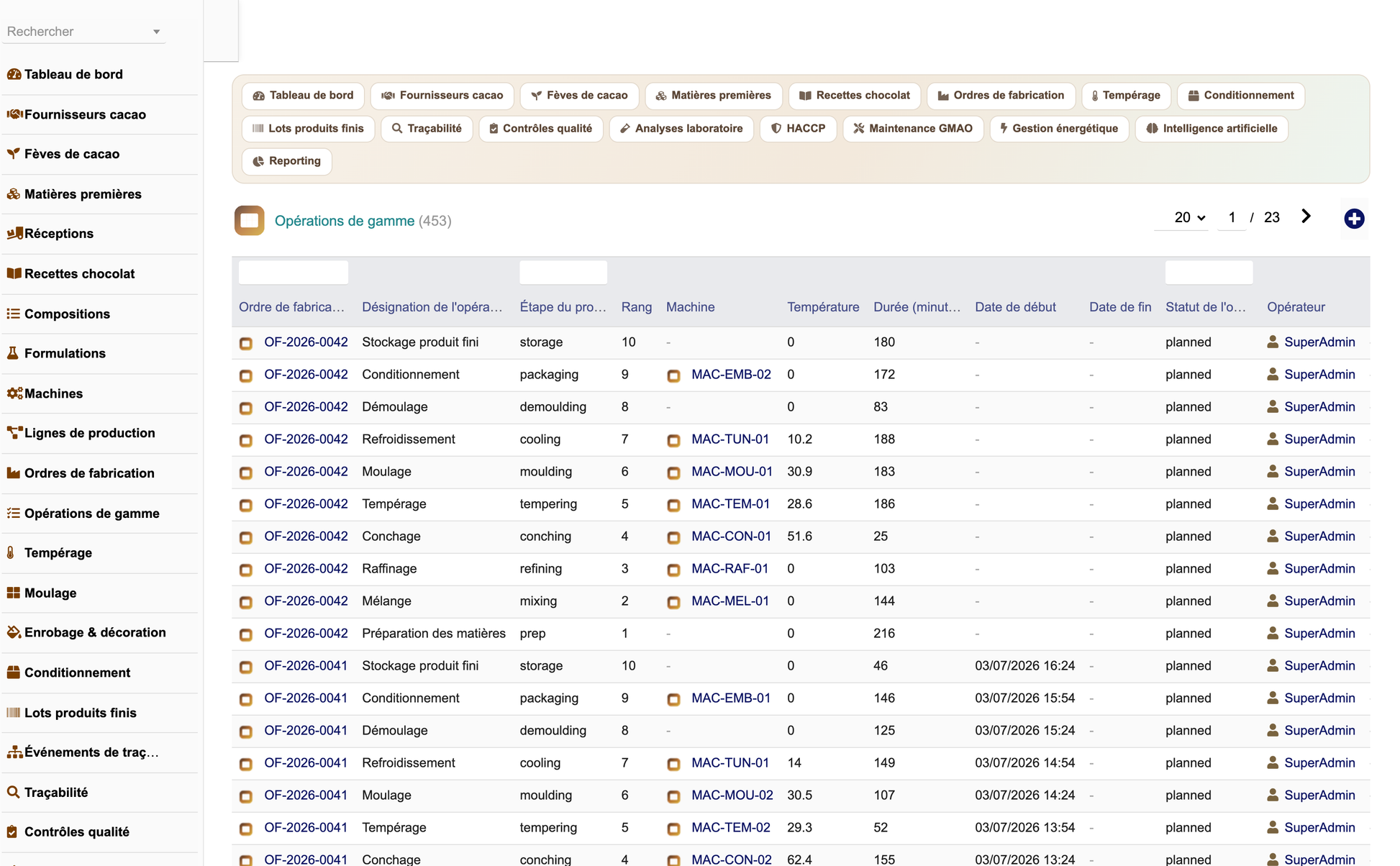

llx_dch_operation	Routing operation	20	One step of the chocolate cycle for a production order: step code, rank, machine, temperature, duration, operator. Child of llx_dch_order.

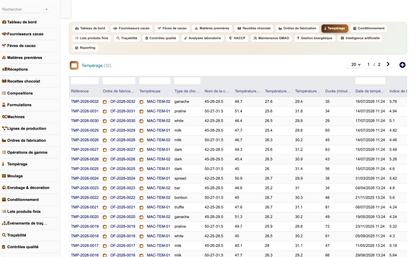

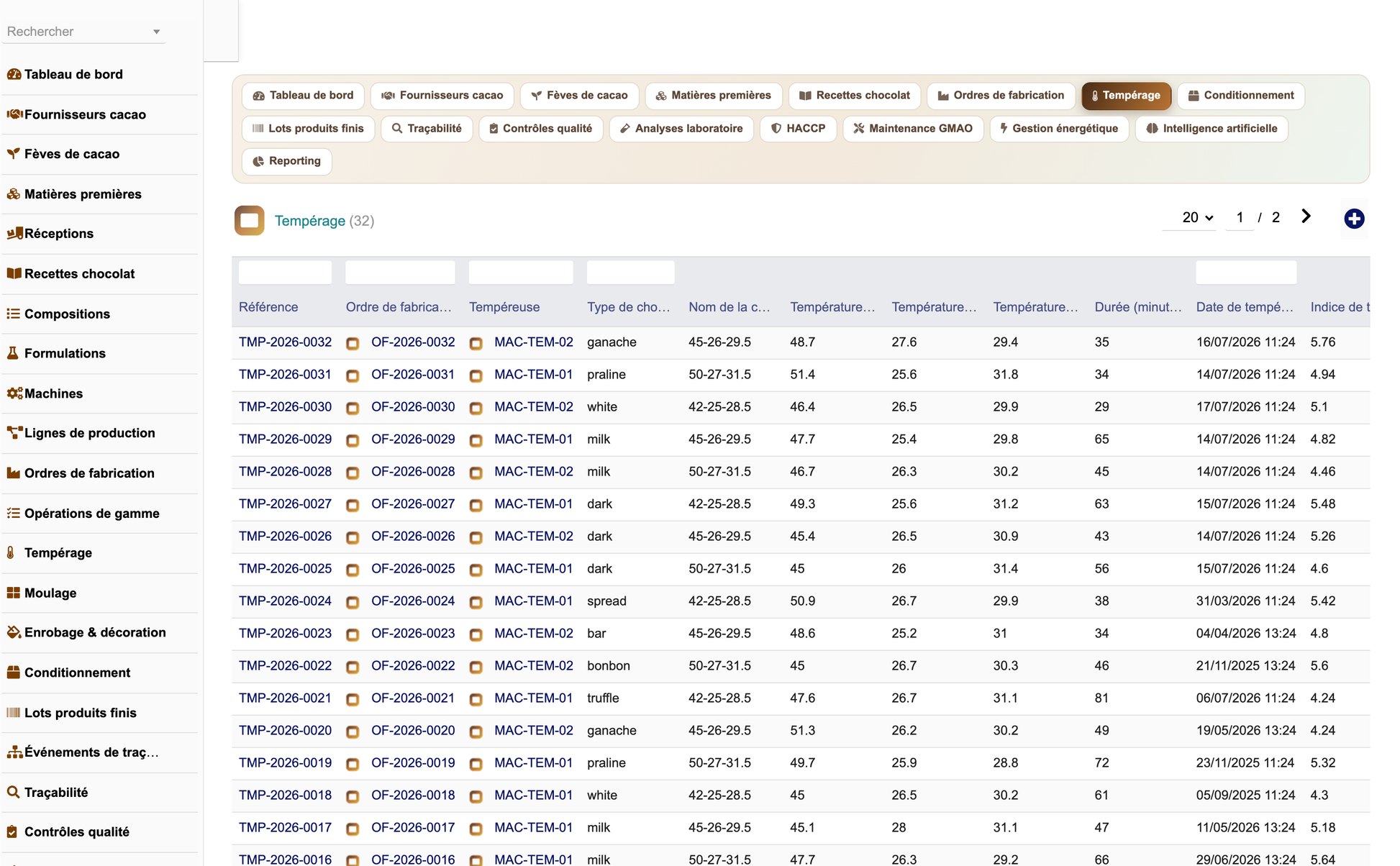

llx_dch_tempering	Tempering record	23	Tempering curve (melting/cooling/working temperatures), temper index, gloss and snap scores, verdict.

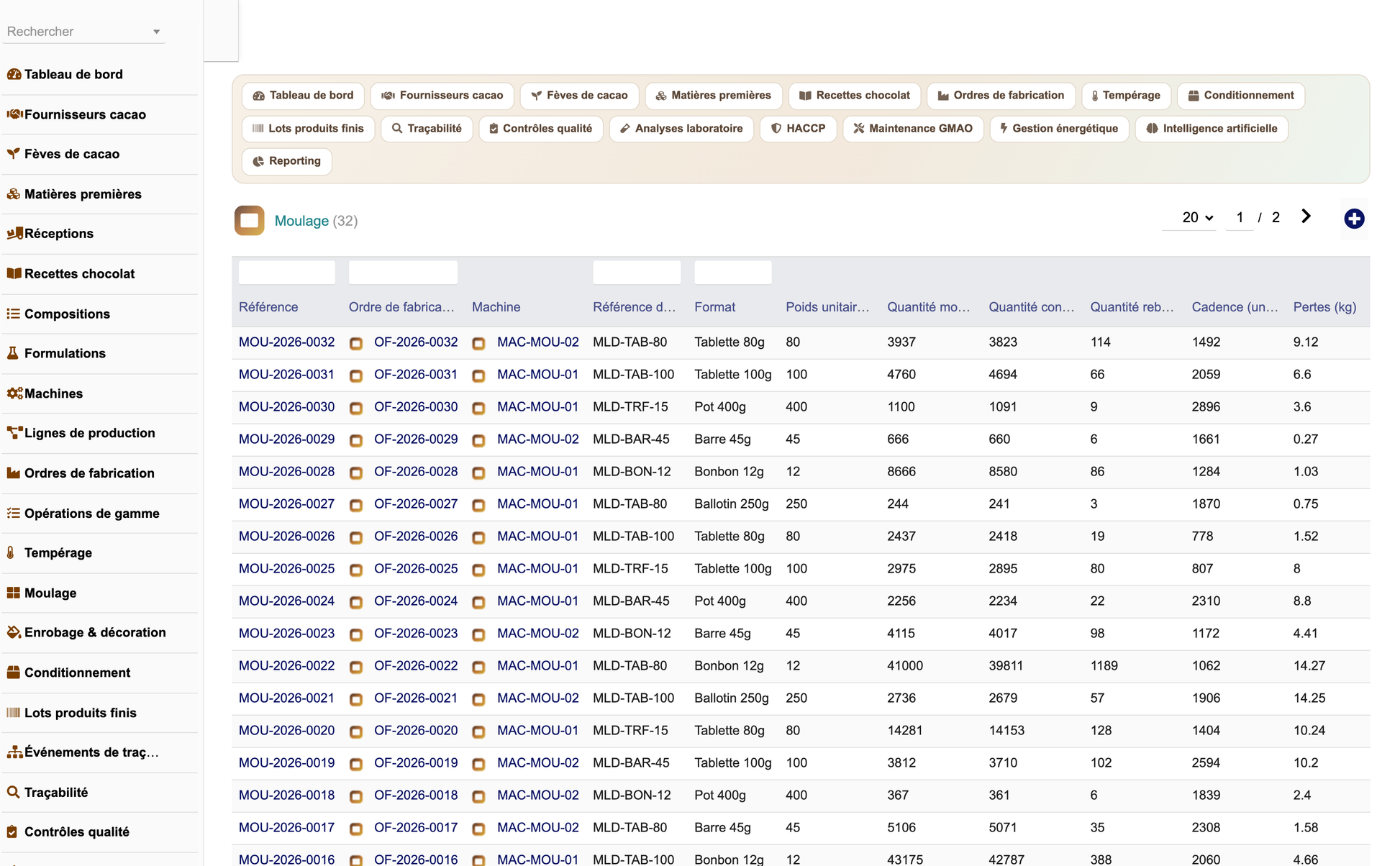

llx_dch_moulding	Moulding record	23	Mould, format, unit weight, moulded/ok/reject quantities, cadence, losses, yield, cooling time.

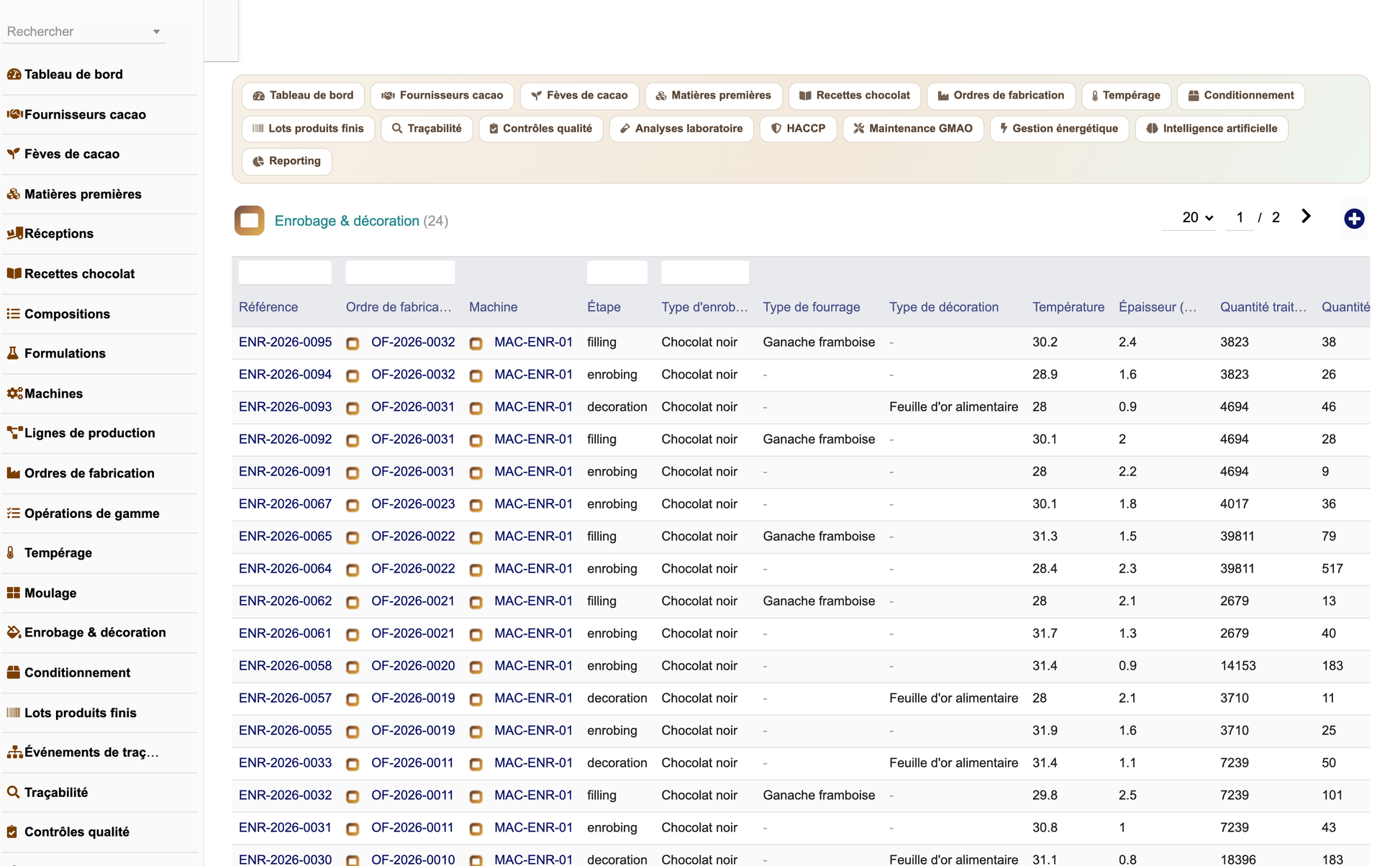

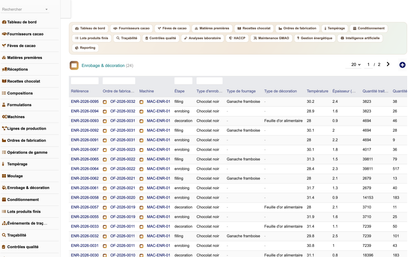

llx_dch_enrobing	Enrobing / filling / decoration	22	Step type, coating, filling, decoration, temperature, thickness, treated/reject quantities, consumption.

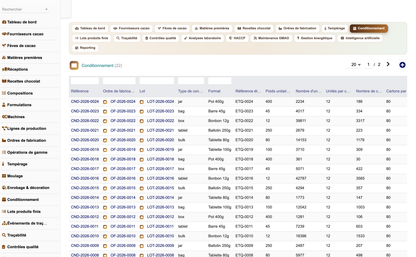

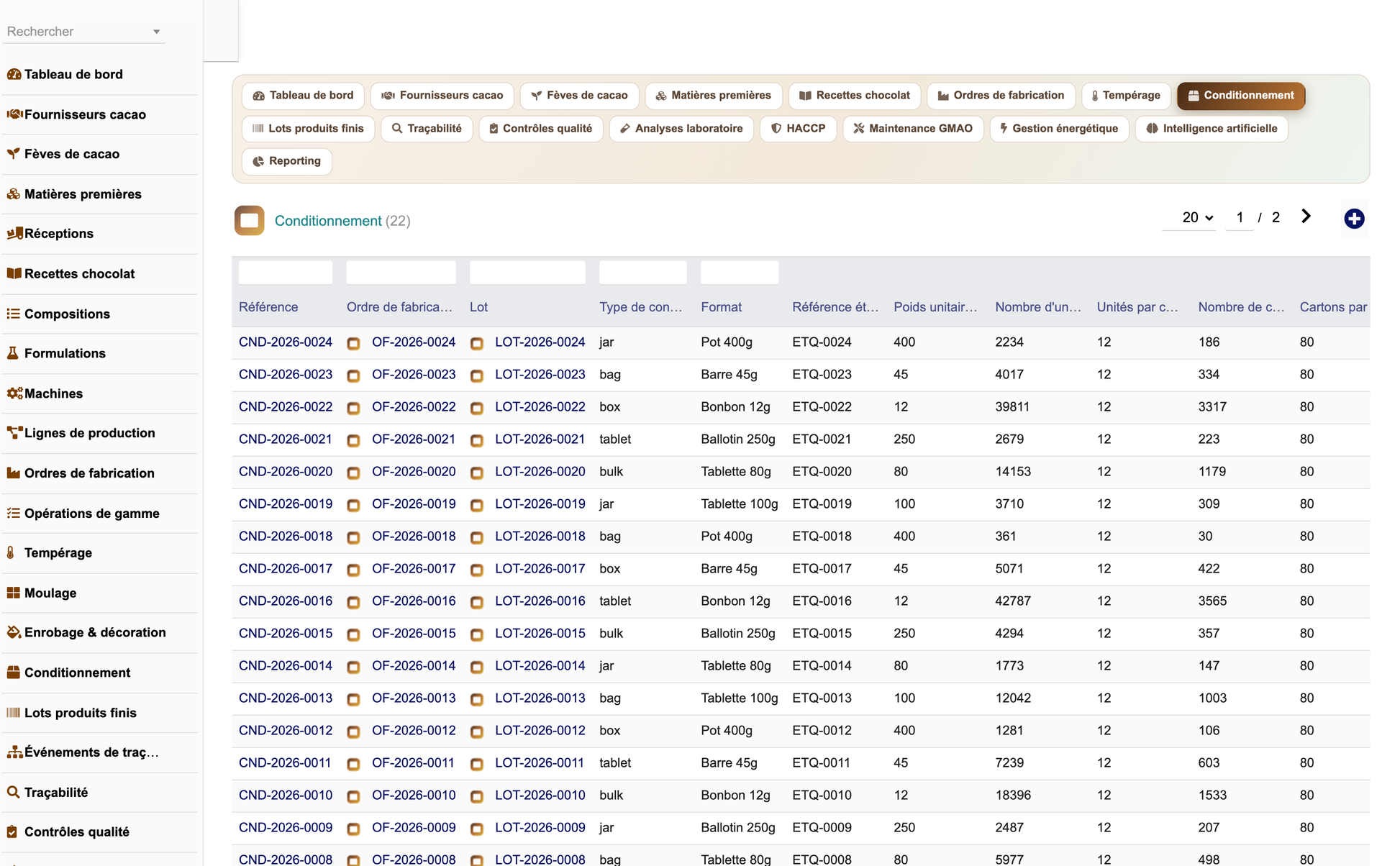

llx_dch_packaging	Packaging record	23	Packaging type, format, label, units, units per box, boxes, boxes per pallet, pallets, packaging consumed.

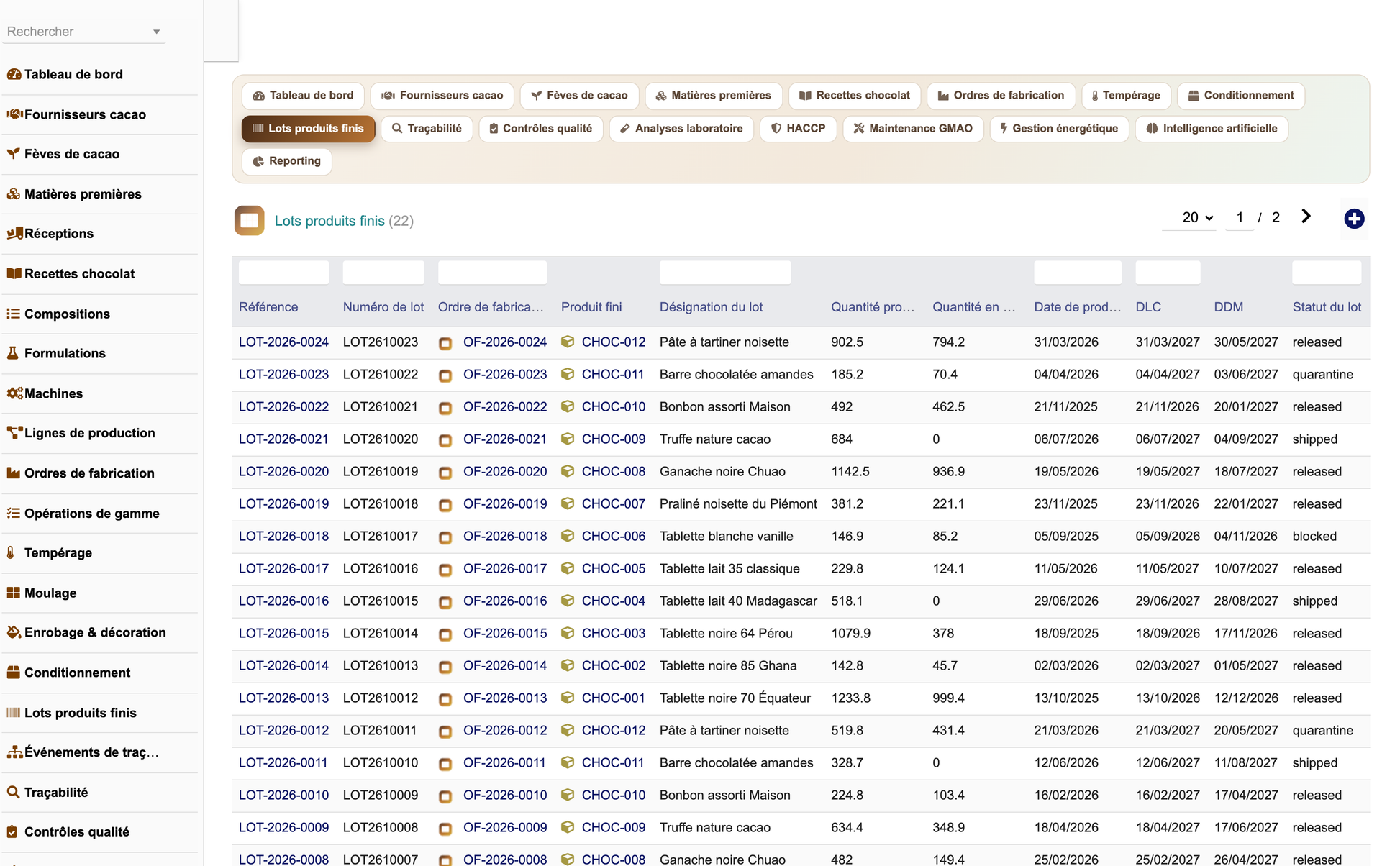

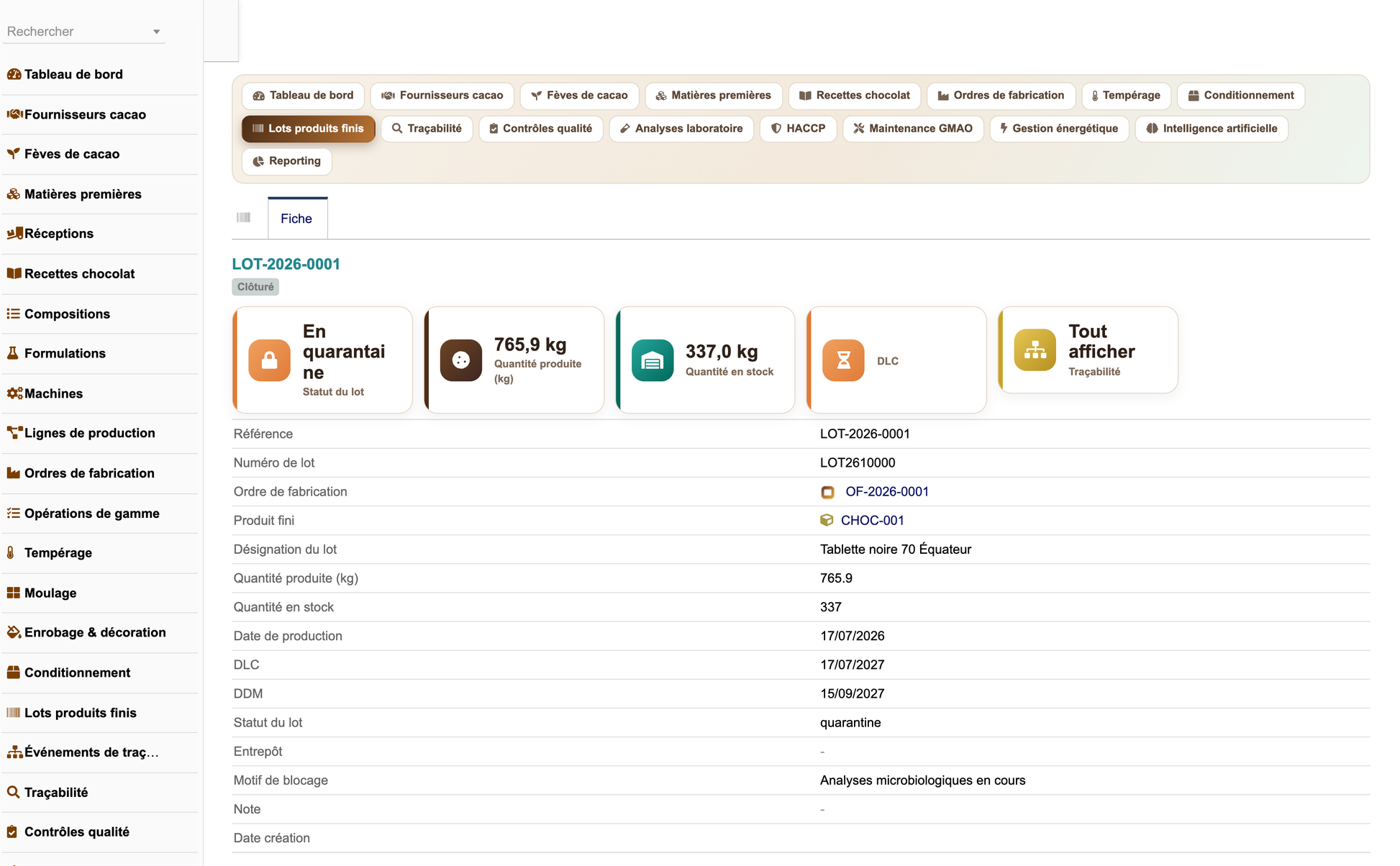

llx_dch_lot	Finished product lot	22	Traceability pivot: lot number, production order, product, quantities, production date, DLC/DDM, status, blocking reason.
llx_dch_trace	Traceability event	20	One upstream / internal / downstream link between a supplier, a material, a lot, a production order and a customer.

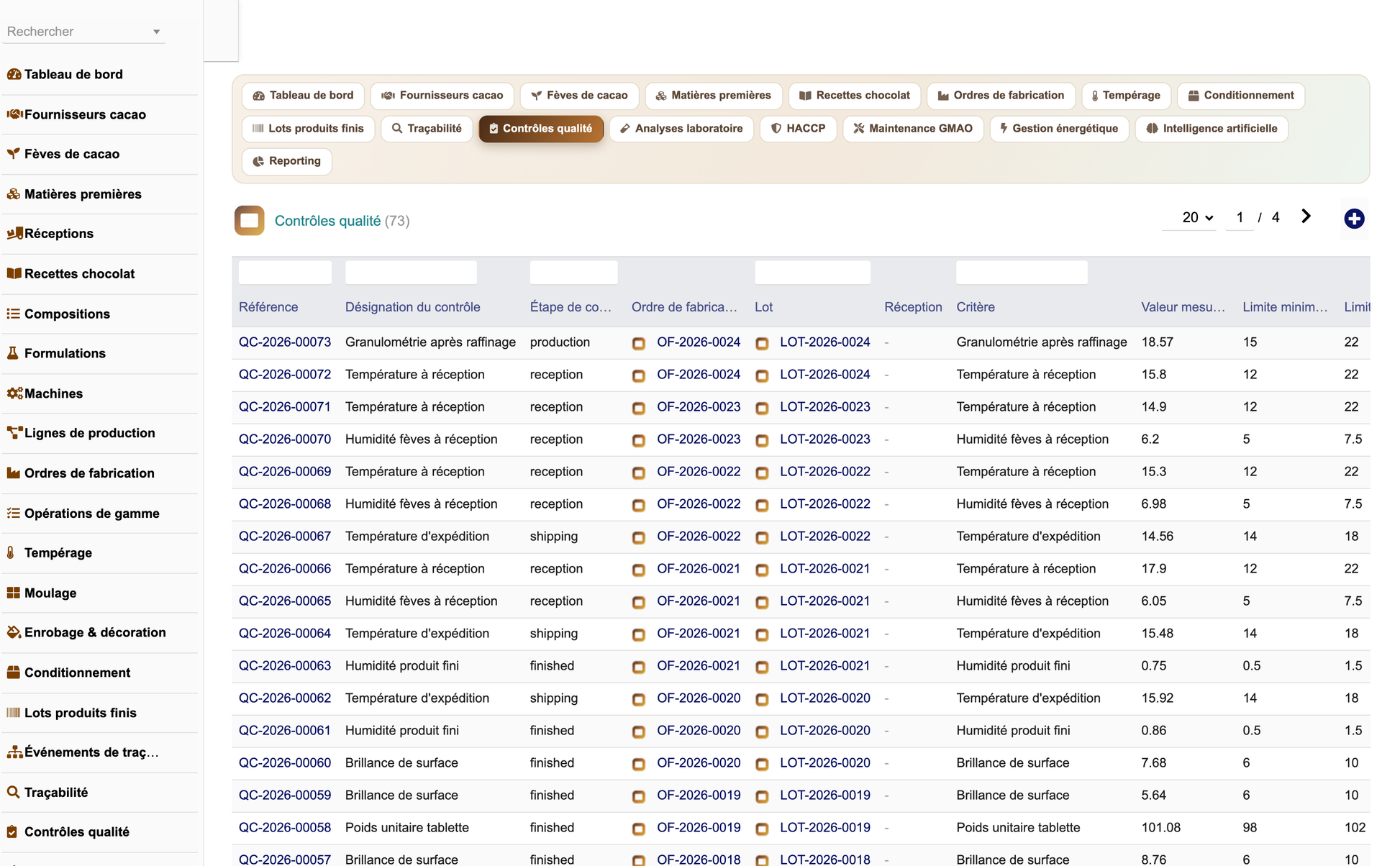

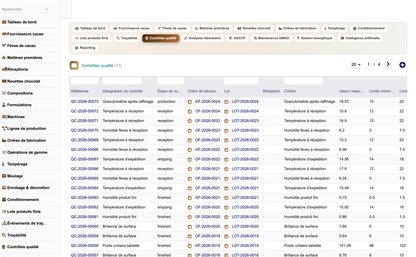

llx_dch_quality	Quality control	23	Control at reception/production/finished/shipping: criterion, measured value, min/max limits, unit, verdict.

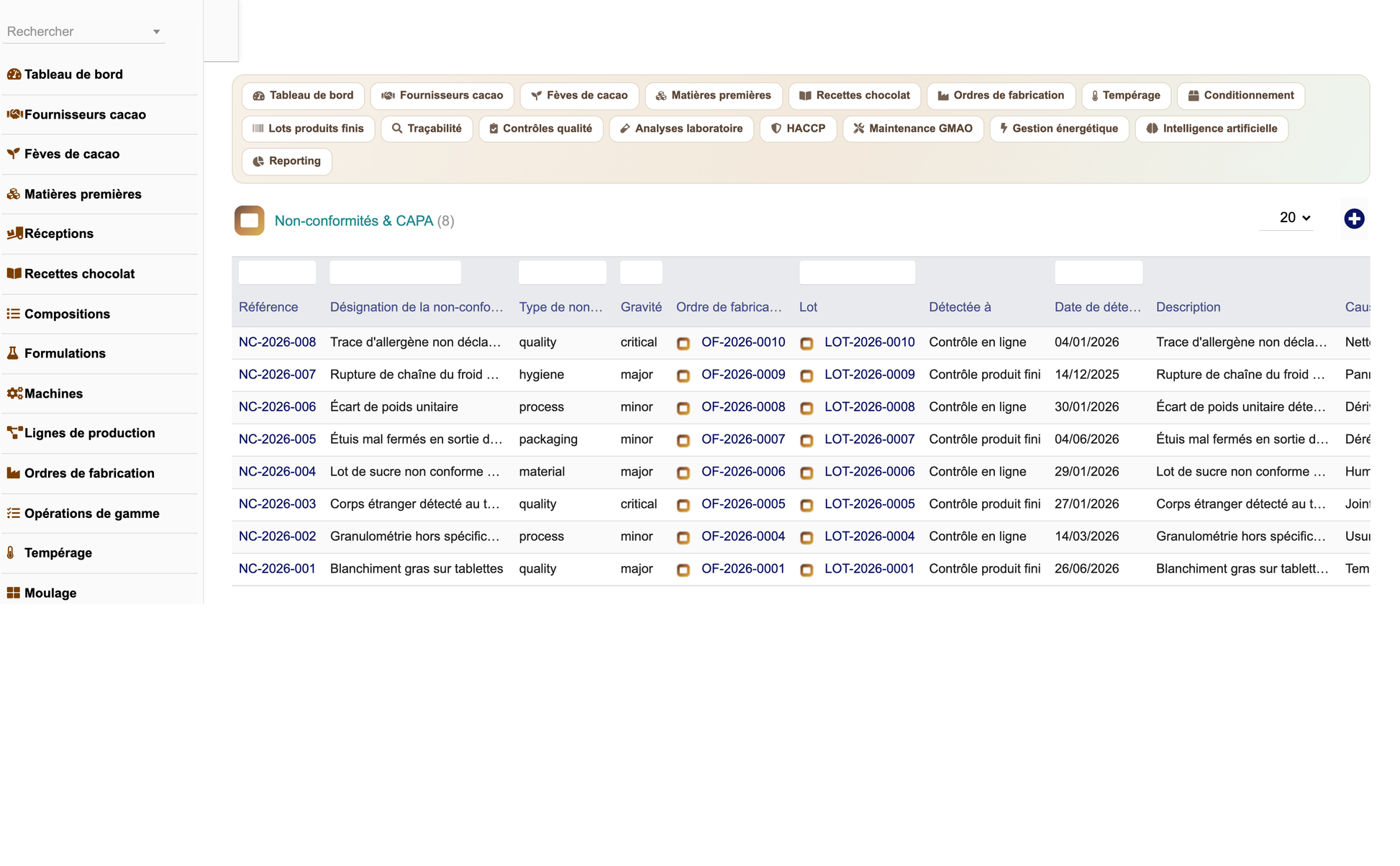

llx_dch_nonconformity	Non-conformity / CAPA	26	Type, severity, detection, description, root cause, corrective and preventive action, cost impact, status.

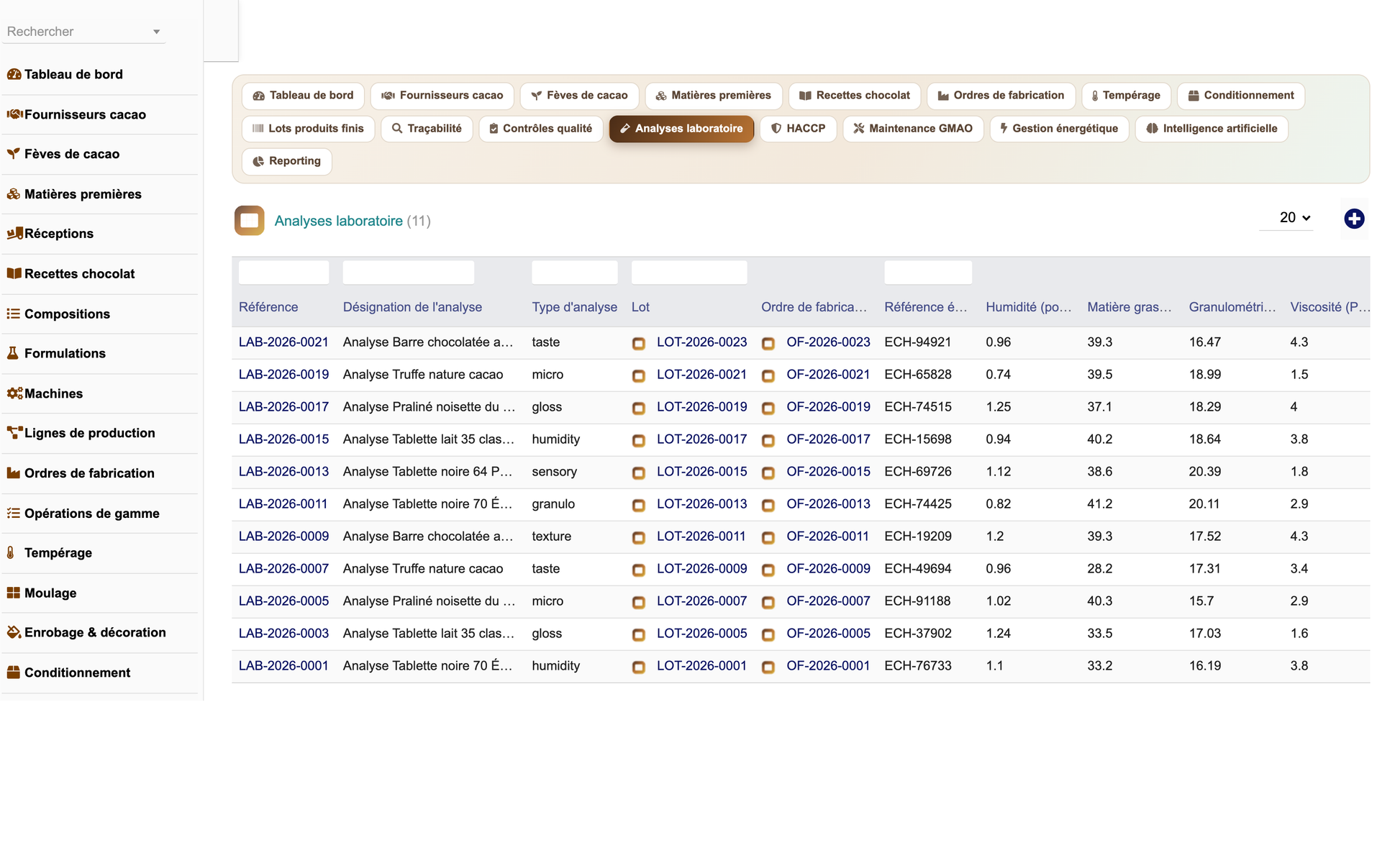

llx_dch_lab	Laboratory analysis	29	Humidity, fat, particle size, viscosity, gloss/texture/taste/aroma scores, sensory total, microbiology, salmonella.

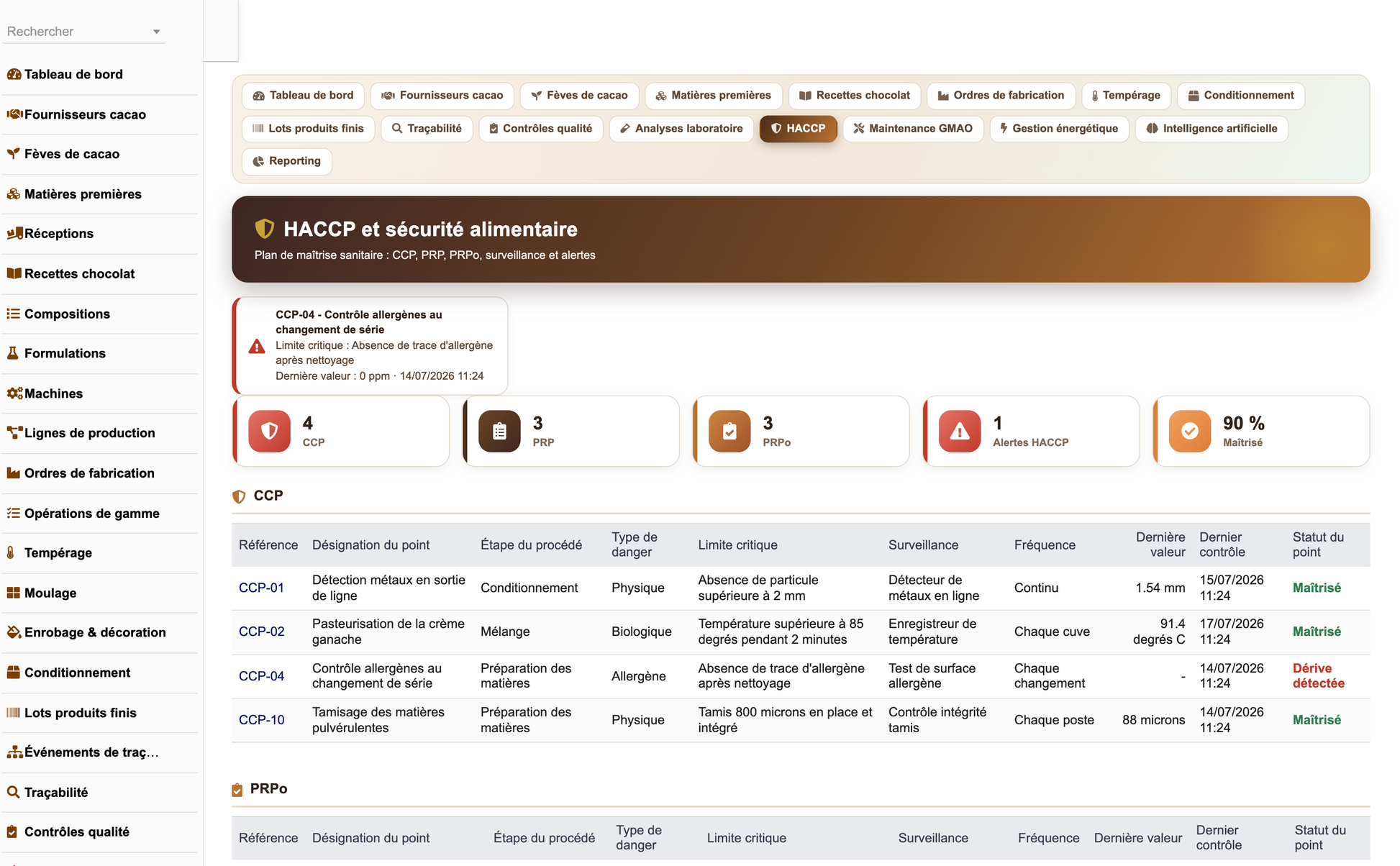

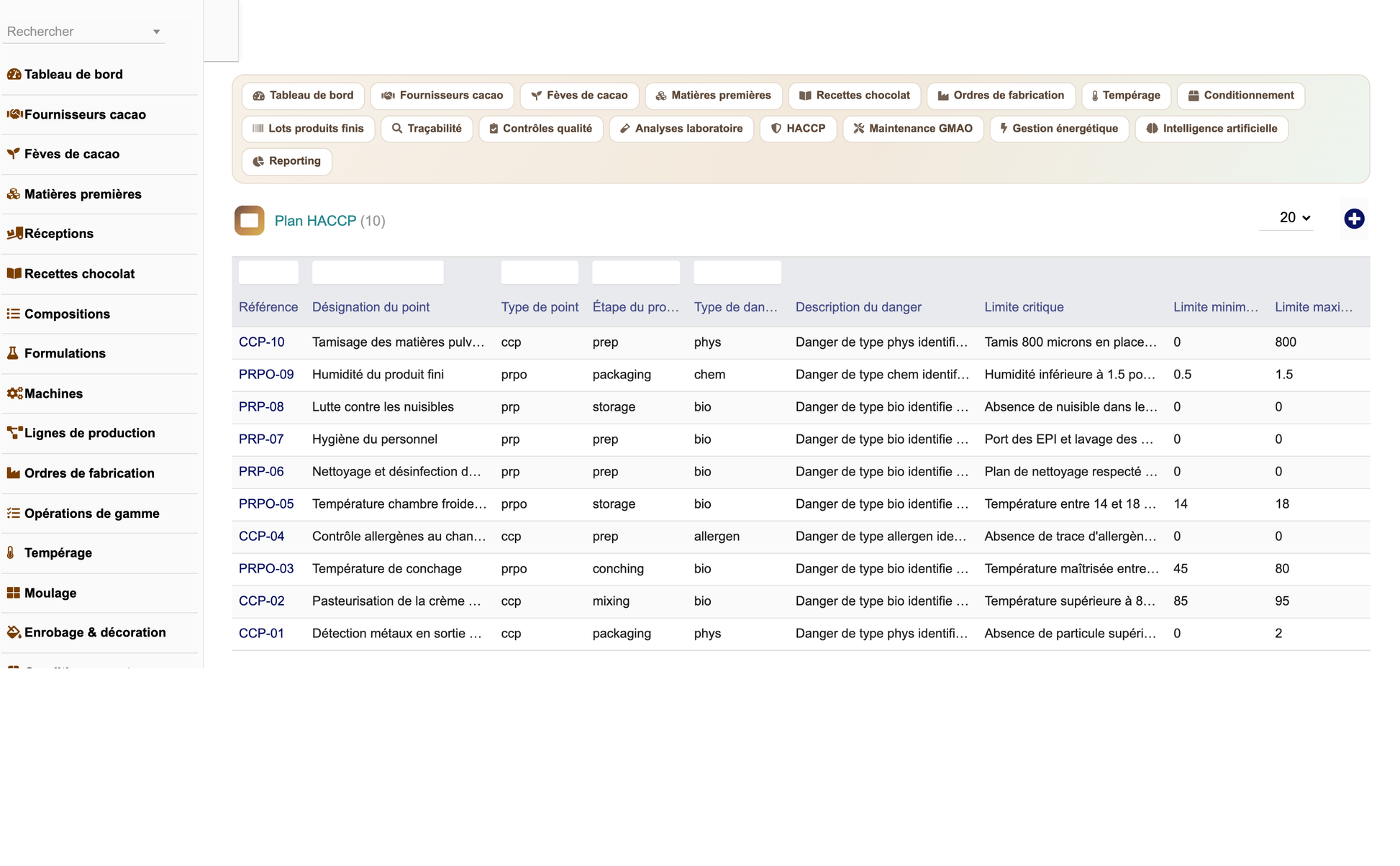

llx_dch_haccp	HACCP point	26	CCP / PRP / PRPo: process step, hazard type, critical limit, monitoring, frequency, last value, status.

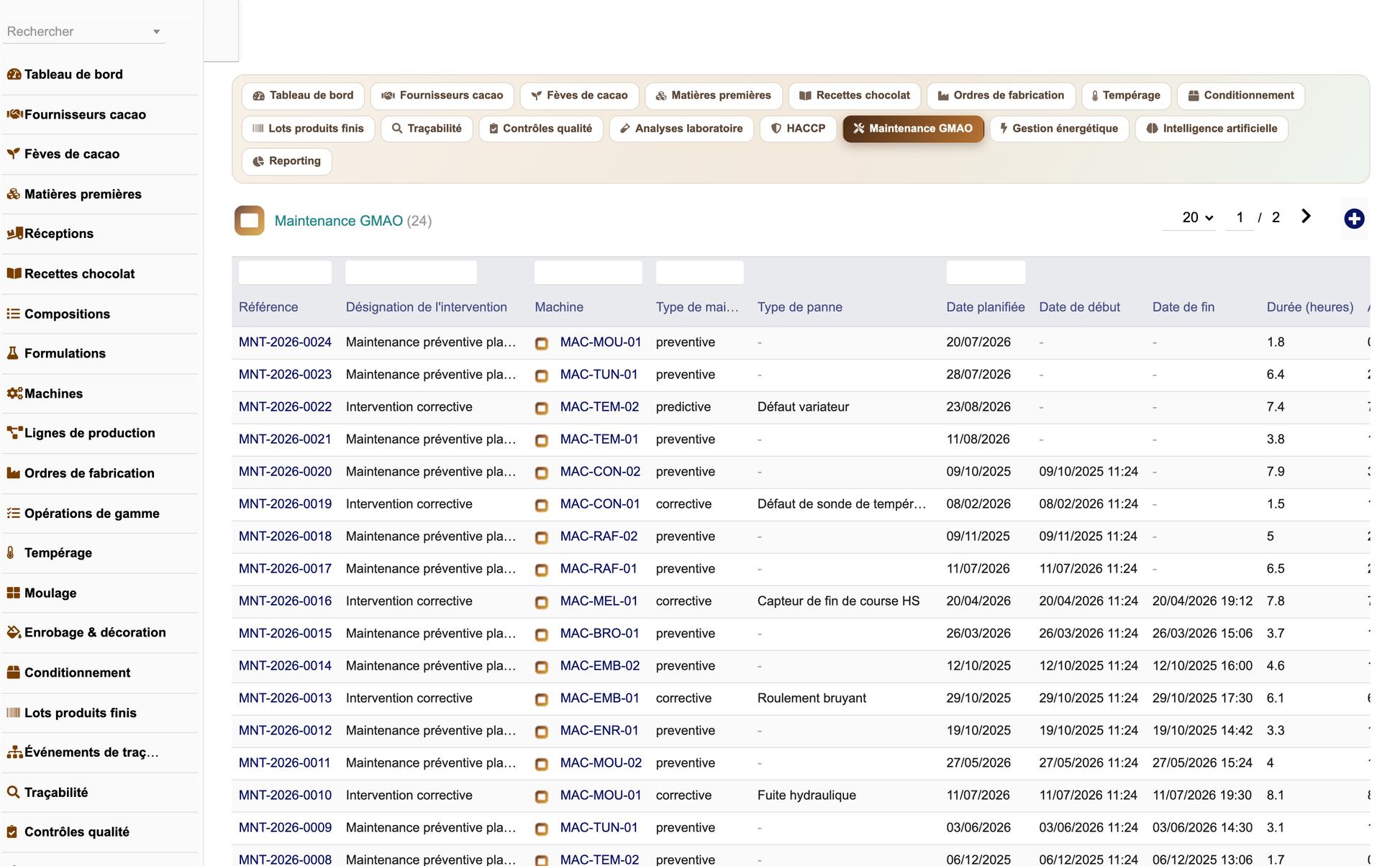

llx_dch_maintenance	Maintenance intervention	25	Preventive/corrective/predictive: failure type, dates, duration, downtime, spare parts, costs, status.

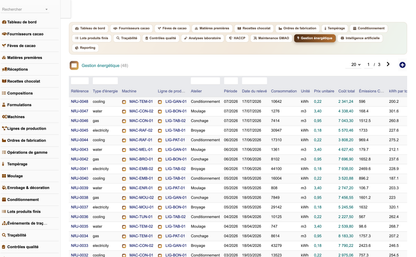

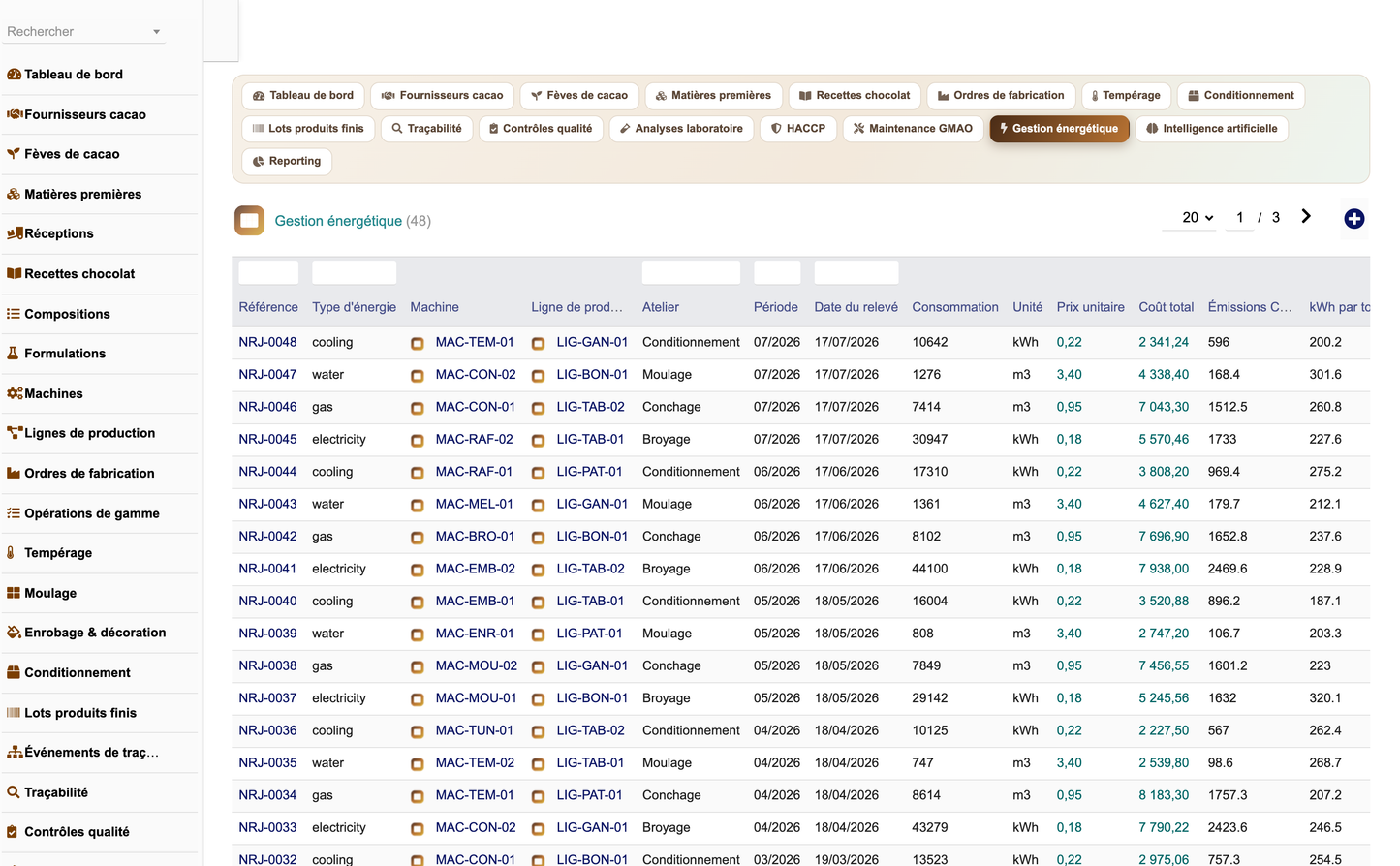

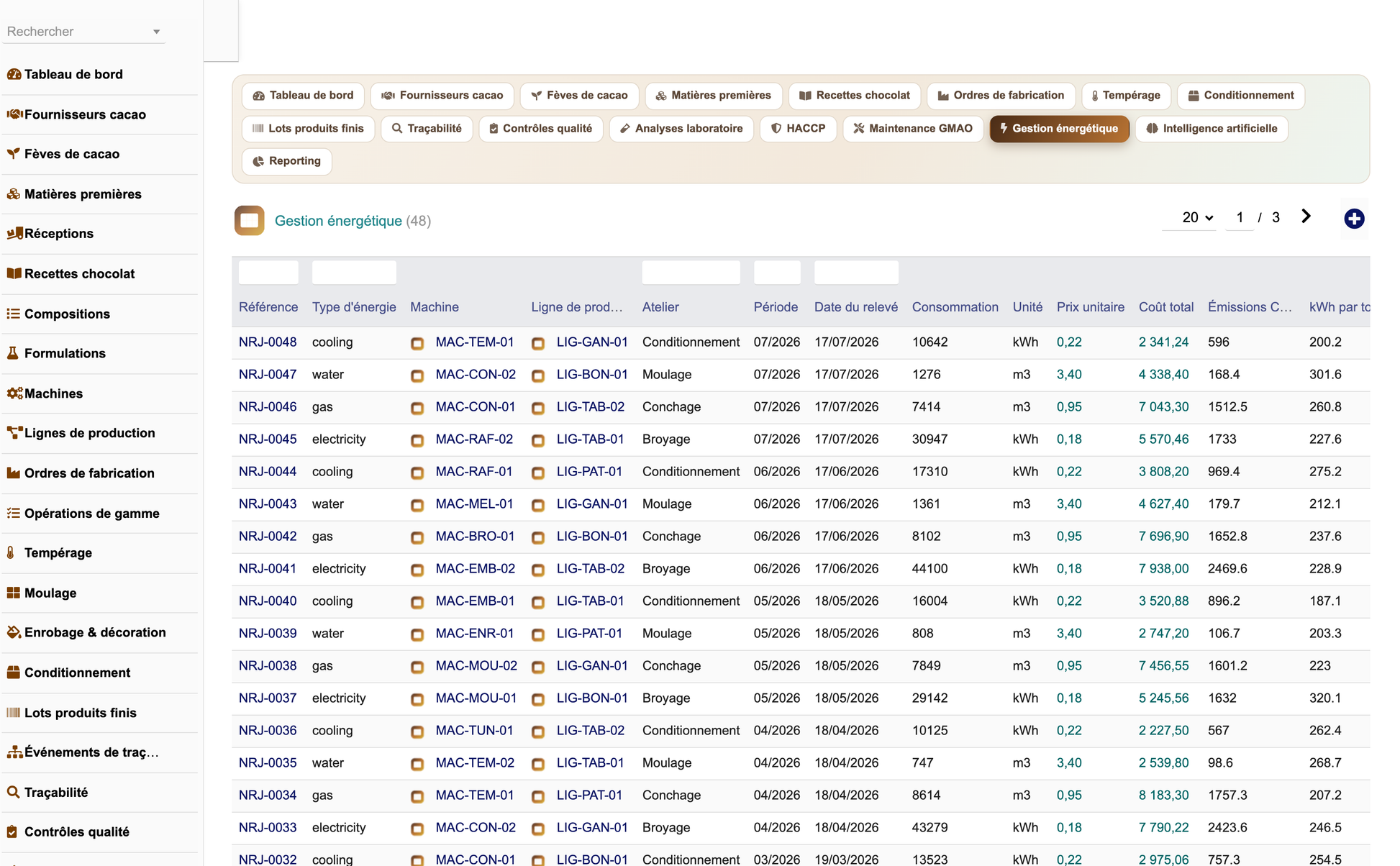

llx_dch_energy	Energy record	22	Electricity/gas/water/industrial cooling per workshop and machine: consumption, unit price, total cost, CO2, kWh per ton.

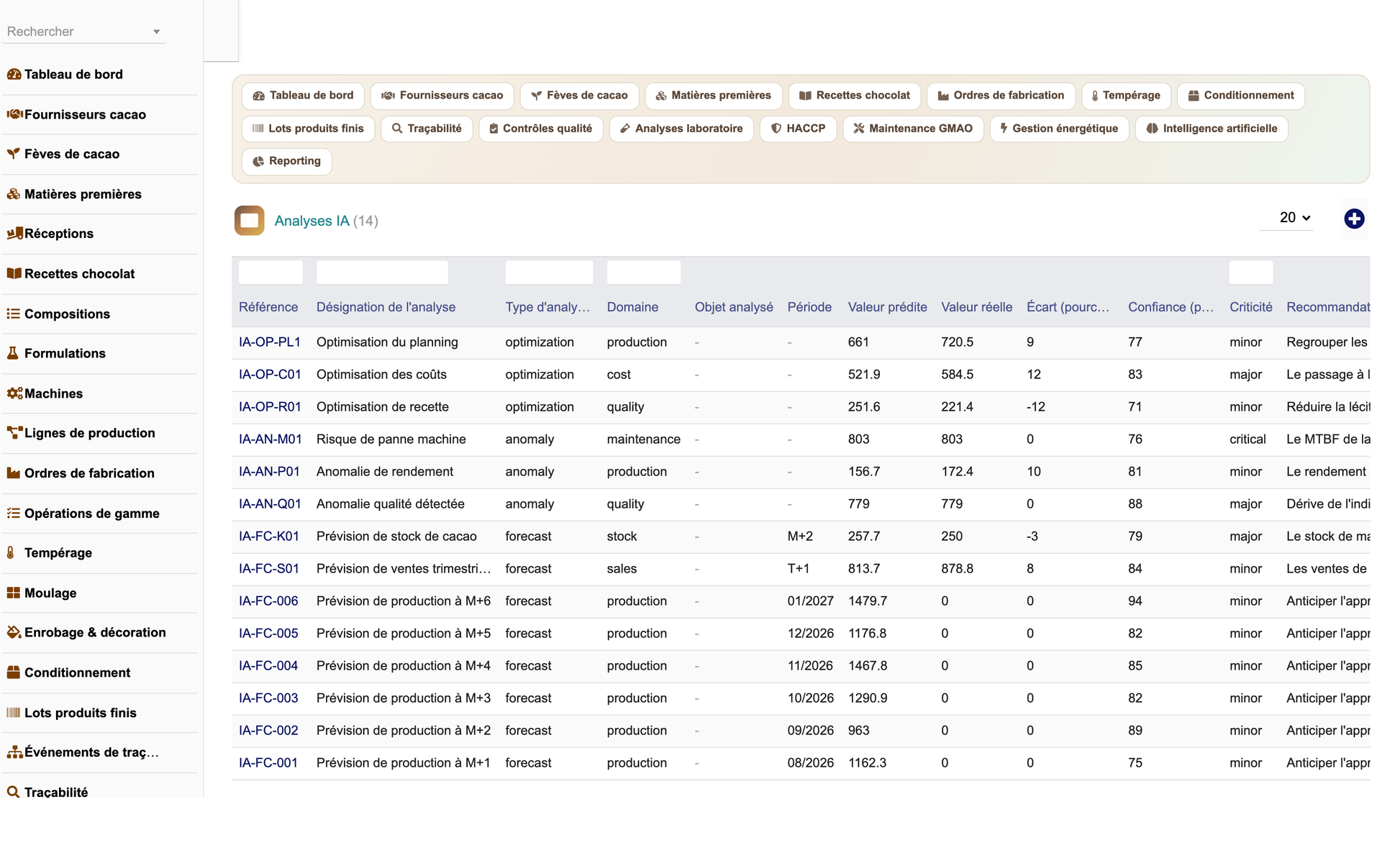

llx_dch_ai_insight	AI insight	23	Forecast / anomaly / optimization: domain, period, predicted vs actual value, deviation, confidence, severity, recommendation.

Key relations

· dch_bean.fk_supplier -> dch_supplier; dch_reception.fk_supplier/fk_material/fk_bean.

· dch_recipe_line.fk_recipe -> dch_recipe (composition lines); dch_formulation.fk_recipe -> dch_recipe.

· dch_order.fk_recipe -> dch_recipe; dch_order.fk_line -> dch_line; dch_operation.fk_order -> dch_order.

· dch_tempering / dch_moulding / dch_enrobing / dch_packaging .fk_order -> dch_order.

· dch_lot.fk_order -> dch_order; dch_lot.fk_product -> llx_product; dch_packaging.fk_lot -> dch_lot.

· dch_trace.fk_lot -> dch_lot, .fk_material -> dch_material, .fk_supplier -> dch_supplier, .fk_soc -> llx_societe.

· dch_quality / dch_lab / dch_nonconformity .fk_lot -> dch_lot and .fk_order -> dch_order.

· dch_maintenance.fk_machine -> dch_machine; dch_energy.fk_machine -> dch_machine, .fk_line -> dch_line.

· Native links: dch_supplier.fk_soc and dch_material.fk_soc -> llx_societe; dch_recipe.fk_product and dch_lot.fk_product -> llx_product; dch_reception.fk_warehouse and dch_lot.fk_warehouse -> llx_entrepot.

4. Features

Area	Capability
Referentials	Cocoa suppliers with origin and certification; cocoa beans by variety (Criollo, Forastero, Trinitario) with fermentation, humidity, fat and aroma profile; raw materials with lot, DLC, allergens, cost and alert threshold; receptions with weighing and control.
Recipes & formulation	Versioned recipes with dosed composition, process, conching, tempering curve, yield, cost, allergens and nutrition; validation workflow; formulation with cost simulation, comparison and optimization goal.
Production (GPAO/MES)	Planning, production orders, routing operations over the 13-step chocolate cycle, machines, lines and operators; per-order cost breakdown (material, labour, energy).
Tempering	Curves, melting/cooling/working temperatures, temper index, gloss and snap scoring.
Moulding & packaging	Moulds, formats, cadences, losses, rejects, yield; packaging, labels, boxes, pallets and packaging consumption.
Lots & traceability	Finished-product lots with DLC/DDM and status; one-click upstream, internal and downstream traceability searchable by lot, product, customer, supplier, date or order.
Quality, lab & HACCP	Controls at four stages; non-conformities with CAPA; laboratory analyses (humidity, particle size, viscosity, gloss, texture, sensory, microbiology); HACCP plan with CCP/PRP/PRPo, critical limits, monitoring and deviation alerts.
CMMS & energy	Preventive/corrective/predictive maintenance, spare parts, costs, MTBF, MTTR, availability; electricity, gas, water and industrial cooling with cost and CO2.

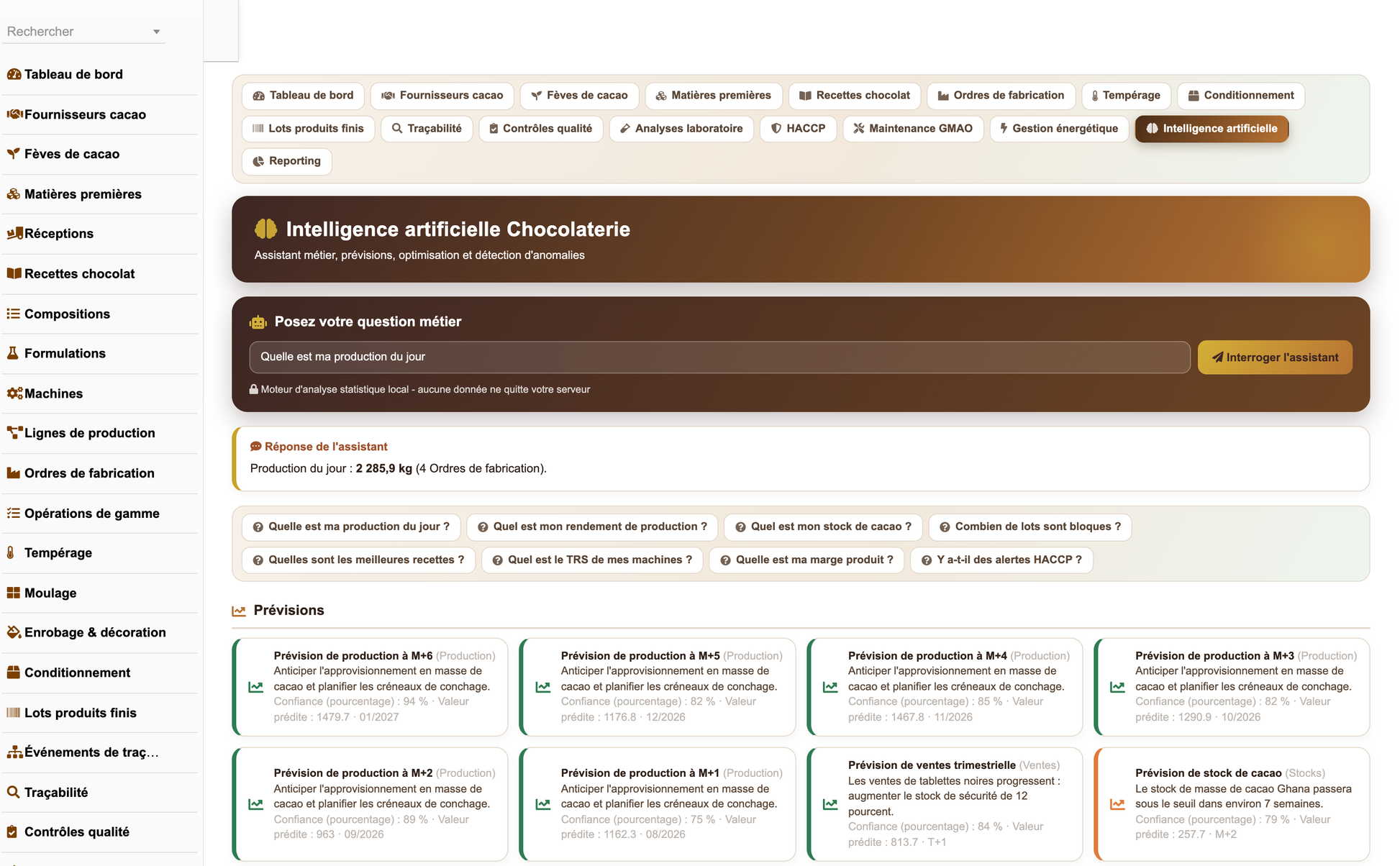

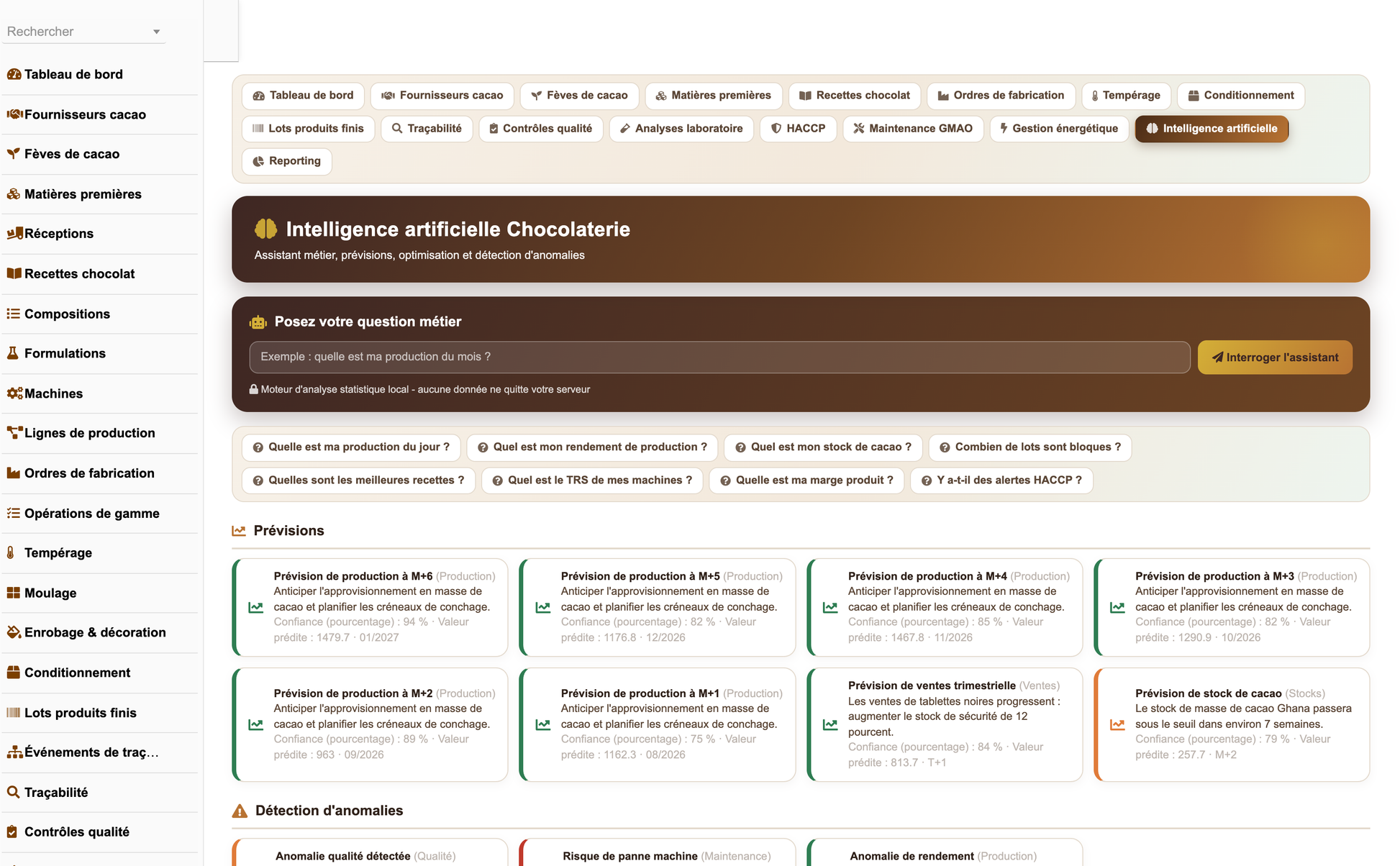

Artificial intelligence	Local statistical engine (no data leaves the server): natural-language business assistant, forecasts, optimization proposals and anomaly detection.
Dashboard & reporting	Chocolate-charter dashboard with KPI cards, gauges, 8 charts, smart alerts, kanban and production timeline; 16 reports exportable to PDF, Excel, Word and CSV.

5. Workflows

5.1 Manufacturing cycle

Material preparation -> Mixing -> Refining -> Conching -> Tempering -> Moulding -> Cooling -> Demoulding -> Enrobing -> Filling -> Decoration -> Packaging -> Finished-goods storage. Steps that do not apply to a chocolate family are skipped automatically (a plain bar has no filling or decoration step).

5.2 Production order lifecycle

planned -> running -> done, with late and cancelled as terminal deviations. The scheduled job moves a 'planned' order whose planned date is in the past to 'late'. On completion, yield is recomputed as produced / planned.

5.3 Lot lifecycle

A finished order produces a lot: released, quarantine, blocked, shipped or consumed. A blocked or quarantined lot carries its reason and is raised on the dashboard as a smart alert.

5.4 Non-conformity / CAPA

open -> analysis -> action -> closed, capturing root cause, corrective action, preventive action, impacted quantity and financial impact.

5.5 HACCP monitoring

Each CCP/PRPo carries a critical limit. The scheduled job compares the last recorded value against the band and flags 'deviation' or 'ok'; deviations appear at the top of the HACCP cockpit and on the dashboard.

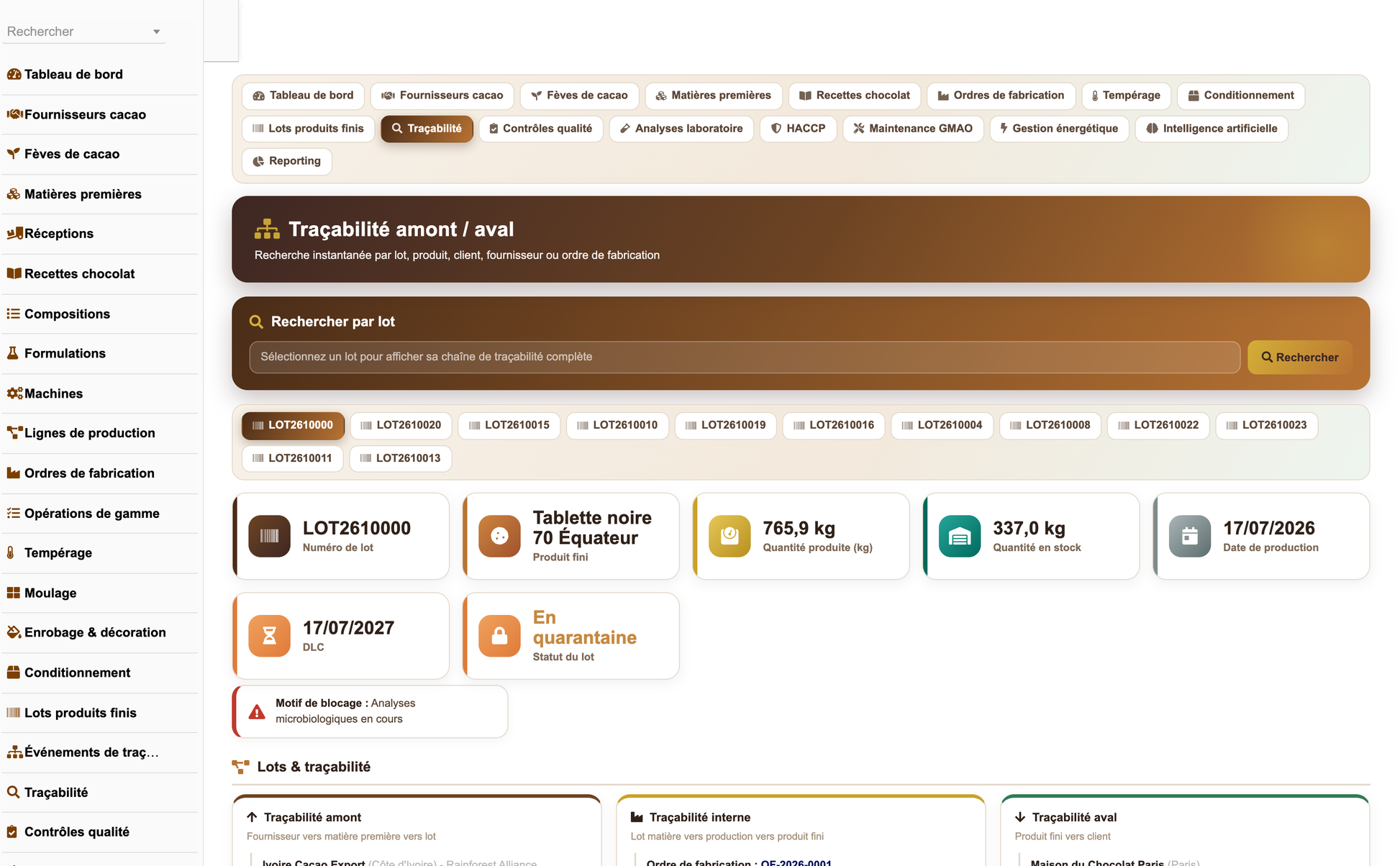

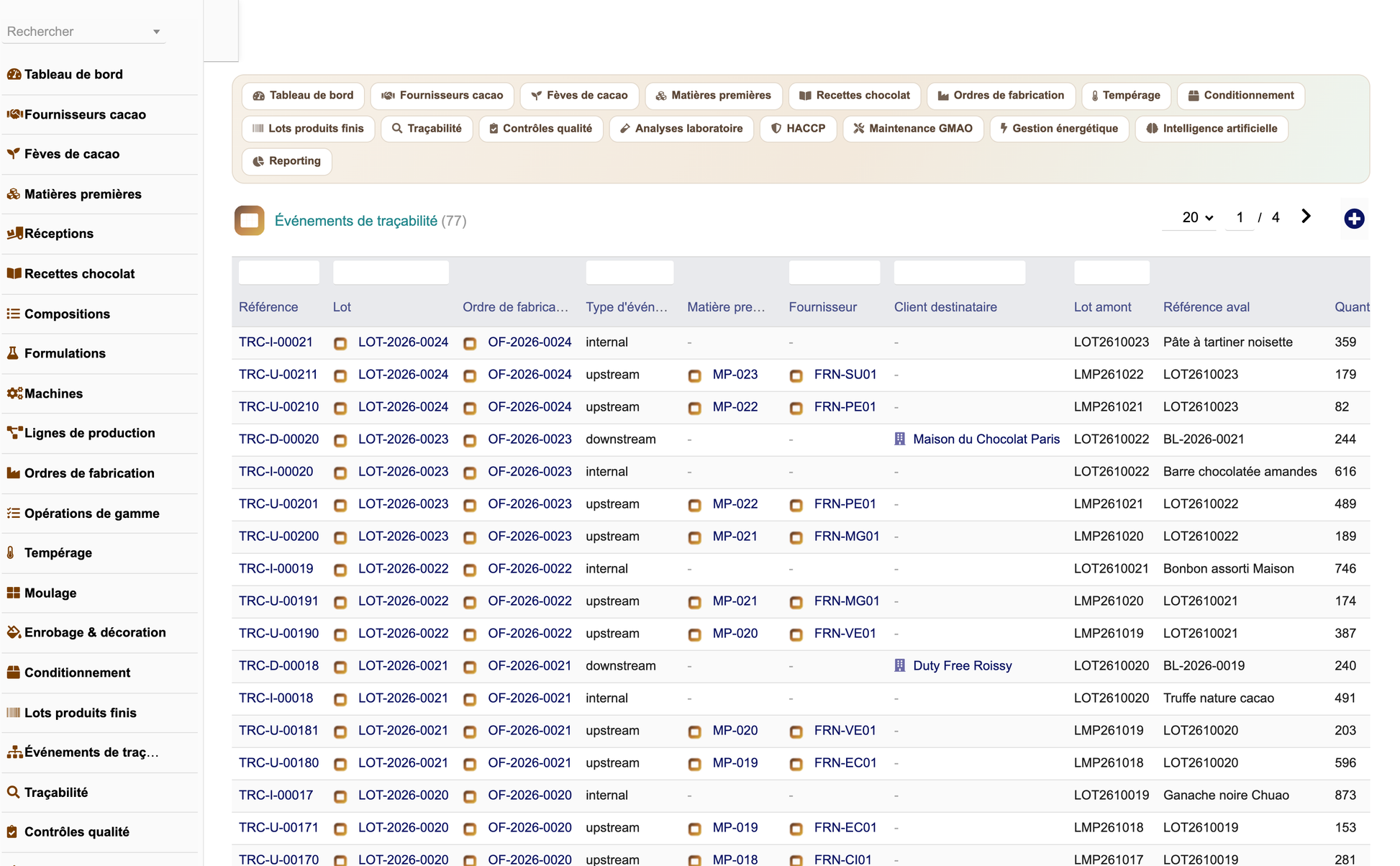

5.6 Traceability construction

Traceability events are written as the chain progresses: upstream events link supplier and material lots to the production order; the internal event links the order to the finished product; downstream events link the lot to the customer delivery. The traceability page reassembles the three chains for any lot in one click.

6. REST API

The module exposes a Restler API. The URL segment is the lowercased class name, so all routes live under /api/index.php/dolichocolat/. Authentication uses the standard Dolibarr DOLAPIKEY header; an invalid key returns 401. Every route is guarded by the matching right group, and sort fields are whitelisted against the real table columns.

Verb	Route	Right	Description
GET	indicators	reporting/read	Key indicators: production today/total, running and late orders, yield, OEE, conformity, blocked lots, HACCP deviations, cocoa stock.
GET	suppliers	referential/read	List cocoa suppliers.
GET	beans	referential/read	List cocoa beans.
GET	materials	referential/read	List raw materials.
GET	recipes	recipe/read	List chocolate recipes.
GET	orders	production/read	List production orders.
GET	orders/{id}	production/read	Read one production order.
POST	orders	production/write	Create a production order.
PUT	orders/{id}	production/write	Update a production order.
DELETE	orders/{id}	production/delete	Delete a production order.
GET	lots	traceability/read	List finished product lots.
GET	lots/{id}/traceability	traceability/read	Full traceability chain of a lot: upstream, internal and downstream events.
GET	machines	maintenance/read	List machines with OEE, availability, MTBF and MTTR.
GET	qualitycontrols	quality/read	List quality controls.
POST	qualitycontrols	quality/write	Record a quality measurement; conformity is derived from the declared tolerance band when not supplied.
GET	haccp	quality/read	List HACCP points.

Example

curl -H "DOLAPIKEY: <key>" https://<host>/api/index.php/dolichocolat/indicators

{"production_today":2285.9,"production_total":15628.6,"orders_running":10,"orders_late":3,"yield_pct":93.9,"oee_pct":89.4,"conformity_pct":94.5,"blocked_lots":4,"haccp_deviations":1,"stock_cacao_kg":21812}

7. Integrations

· Third parties (llx_societe): cocoa suppliers and chocolate customers.

· Products (llx_product): finished goods linked to recipes and lots; the product sale price feeds the margin KPI.

· Stock and warehouses (llx_entrepot): receptions and lots reference native warehouses.

· Sales cycle: quotations, customer orders, invoices, supplier orders, receptions and shipments reachable from the module objects.

· Accounting and analytic accounting: production costs are exposed per order for downstream posting.

· Projects and Agenda: standard Dolibarr links on module objects.

· GED (ECM): document storage on module objects.

· REST API and cron as described above.

· Boxes: a dashboard widget exposes production today, running orders, yield, OEE, conformity, blocked lots and HACCP alerts.

· Multi-entity: every table carries `entity` and queries use getEntity(), so the module is multi-company ready.

8. Permissions

23 permissions. Read and write are granted by default so the module is usable immediately after activation; delete and admin are not.

Group	Actions	Scope
referential	read / write / delete	Suppliers, beans, materials, receptions
recipe	read / write / delete	Recipes and formulations
production	read / write / delete	Production orders, tempering, moulding, enrobing, packaging
traceability	read / write / delete	Lots and traceability events
quality	read / write / delete	Quality controls, non-conformities, laboratory, HACCP
maintenance	read / write / delete	Machines and CMMS maintenance
energy	read / write / delete	Energy management
reporting	read	Reporting, analytics and artificial intelligence
admin	-	Module administration

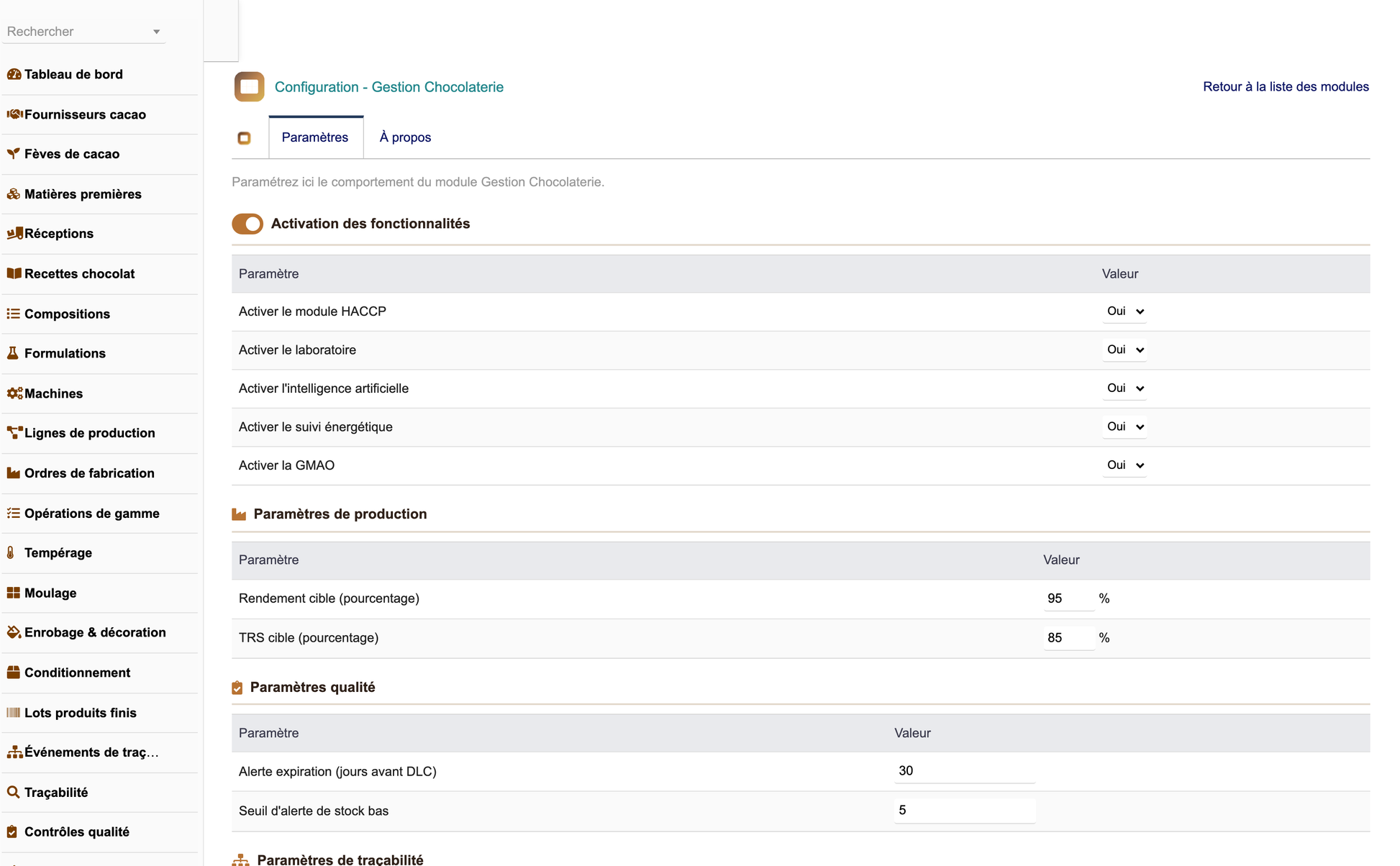

9. Configuration constants

Constant	Default	Purpose
DOLICHOCOLAT_EXPIRY_ALERT_DAYS	30	Days before DLC that raise an expiry alert
DOLICHOCOLAT_LOW_STOCK_THRESHOLD	5	Low-stock alert threshold
DOLICHOCOLAT_TARGET_YIELD	95	Target production yield (percent)
DOLICHOCOLAT_TARGET_OEE	85	Target OEE (percent)
DOLICHOCOLAT_ENERGY_PRICE	0.18	Average kWh price
DOLICHOCOLAT_LABOR_COST_HOUR	32	Hourly labour cost
DOLICHOCOLAT_LOT_PREFIX	LOT	Lot number prefix
DOLICHOCOLAT_SHELF_LIFE_DAYS	365	Default finished-product shelf life (days)
DOLICHOCOLAT_ENABLE_HACCP	1	Enable the HACCP module
DOLICHOCOLAT_ENABLE_LAB	1	Enable the laboratory
DOLICHOCOLAT_ENABLE_AI	1	Enable artificial intelligence
DOLICHOCOLAT_ENABLE_ENERGY	1	Enable energy monitoring
DOLICHOCOLAT_ENABLE_GMAO	1	Enable the CMMS
DOLICHOCOLAT_SAMPLE_DATA_DONE	-	Demonstration dataset version guard

10. Demonstration dataset

A realistic dataset is installed on first activation and can be reinstalled or removed from the configuration page. All rows are tagged with import_key = 'DCHDEMO'; removal deletes only those rows plus the native third parties and products the generator created, cascading first to any user-created child of a demo parent so no orphan is left on a dead foreign key.

· 8 cocoa suppliers, 8 beans, 28 raw materials, 30 receptions.

· 12 recipes with 71 composition lines, 4 formulations, 12 native finished products with sale and cost prices.

· 14 machines, 5 production lines, 42 production orders with 453 routing operations.

· 32 tempering records, 32 moulding records, 23 enrobing records, 22 packaging records, 22 lots.

· 77 traceability events, 73 quality controls, 8 non-conformities, 11 laboratory analyses, 10 HACCP points.

· 24 maintenance interventions, 48 energy records, 14 AI insights.

· Realism: measured values are drawn inside their own tolerance band with an explicit ~3% reject rate, so conformity lands near 97%; the first production orders are forced to start today so the headline 'production of the day' KPI is never zero.

11. Support
