1. Overview

Plasturgie Management turns Dolibarr into a complete industrial management tool dedicated to the transformation of plastic materials. It lets a plastics-processing company run its entire operation — from prospect and sales order to manufacturing, quality control, dispatch and invoicing — without any external business software.

Covered processes: injection moulding, extrusion, extrusion blow moulding, injection blow moulding, thermoforming, rotomoulding, compression moulding, compounding, granulation, recycling, grinding, assembly, finishing, quality control and the maintenance of machines and moulds.

Main flow: Prospect -> Quotation -> Sales order -> Planning -> Manufacturing order -> Material reservation -> Mould assignment -> Machine assignment -> Production -> Quality control -> Storage -> Dispatch -> Invoicing.

2. Technical compatibility

·       Dolibarr 16 to 23 and later versions; PHP 7.1+ and PHP 8.

·       MySQL / MariaDB; single- and multi-entity installations; SaaS-friendly.

·       Responsive: desktop, tablet, smartphone, industrial touch screen and large supervision display.

·       Never modifies Dolibarr core: uses classes, hooks, extrafields, business objects, REST API, cron jobs, permissions, PDF models, the translation system and declared menus.

3. Multilingual

The module ships fully translated in French, English, Spanish, Italian and German. No user-visible string is hard-coded; every label is prefixed to avoid cross-module translation collisions.

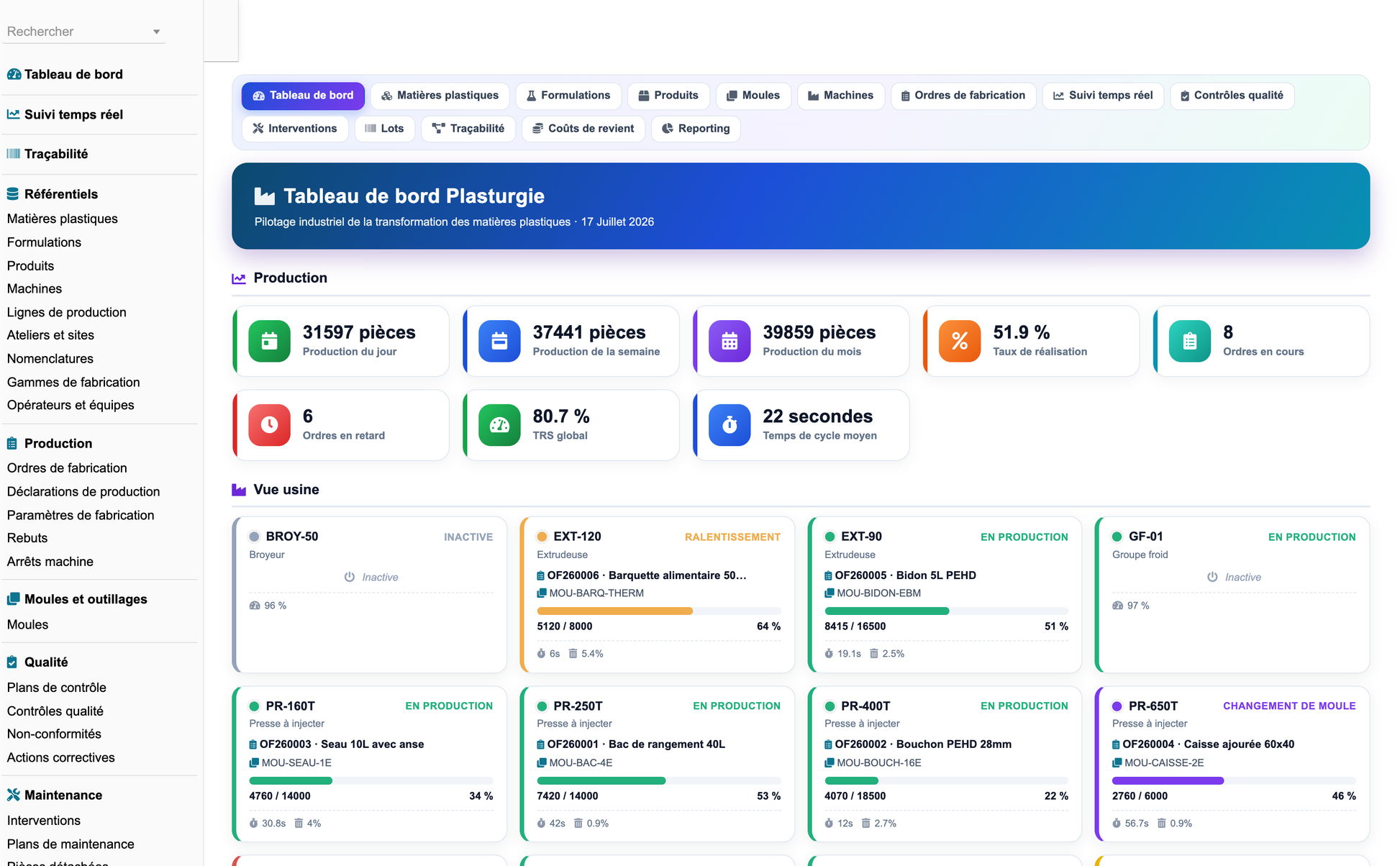

4. Modern dashboard

A dashboard unlike the classic Dolibarr ones, designed to evoke a modern plastics factory (industrial blue, petrol blue, turquoise, performance green, alert orange, incident red, metal grey, technical violet).

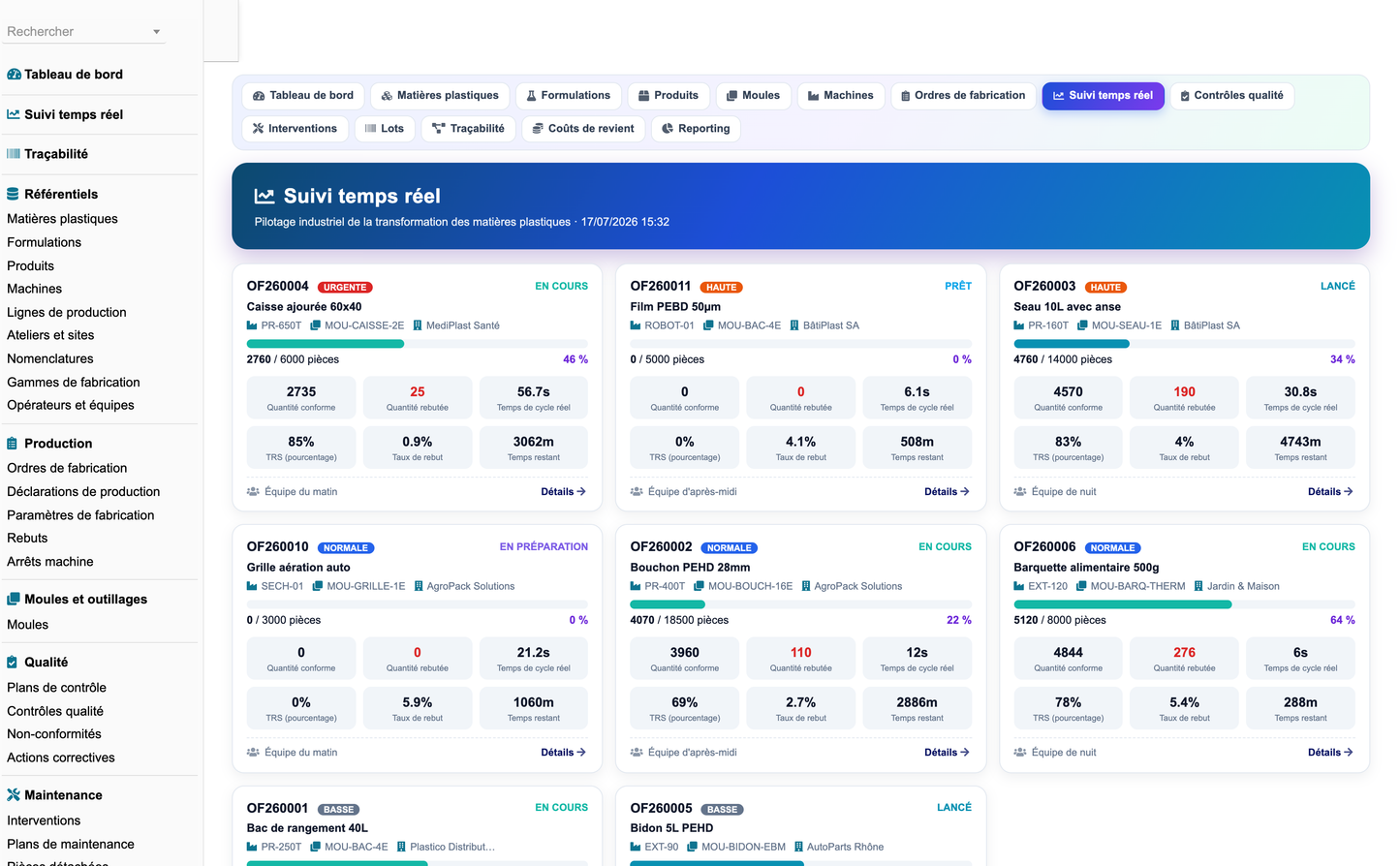

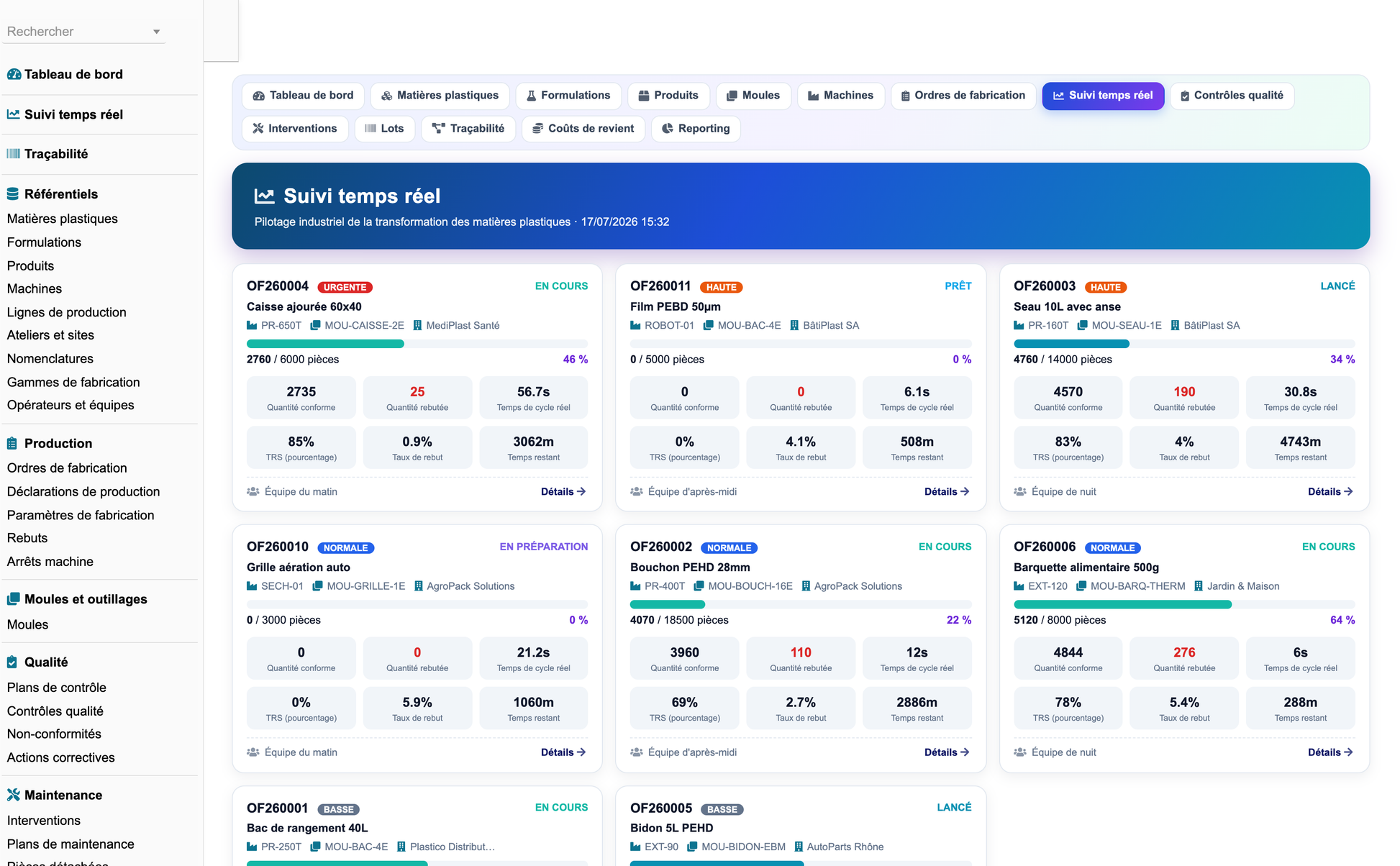

Factory view

·       One card per machine with a colour code: green (in production), blue (preparation), orange (slowdown), red (breakdown), violet (mould change), yellow (maintenance), grey (idle).

·       Each machine card shows the manufacturing order, product, mould, planned and produced quantity, progress, cycle time, scrap rate and operator.

Key performance indicators

·       Production of the day / week / month, planned vs produced quantity, completion rate.

·       Orders in progress and late, average cycle time, yield, OEE / overall equipment effectiveness, machine availability, performance and quality rate.

·       Scrap rate, recycled-material rate, material and energy consumption, downtime, number of breakdowns.

·       Production cost, scrap cost, average margin, critical stock, pending controls and due maintenance.

Charts

·       Planned versus actual production, production by machine, scrap causes, machine-stop causes, and a manufacturing-order kanban by status.

5. Reference data

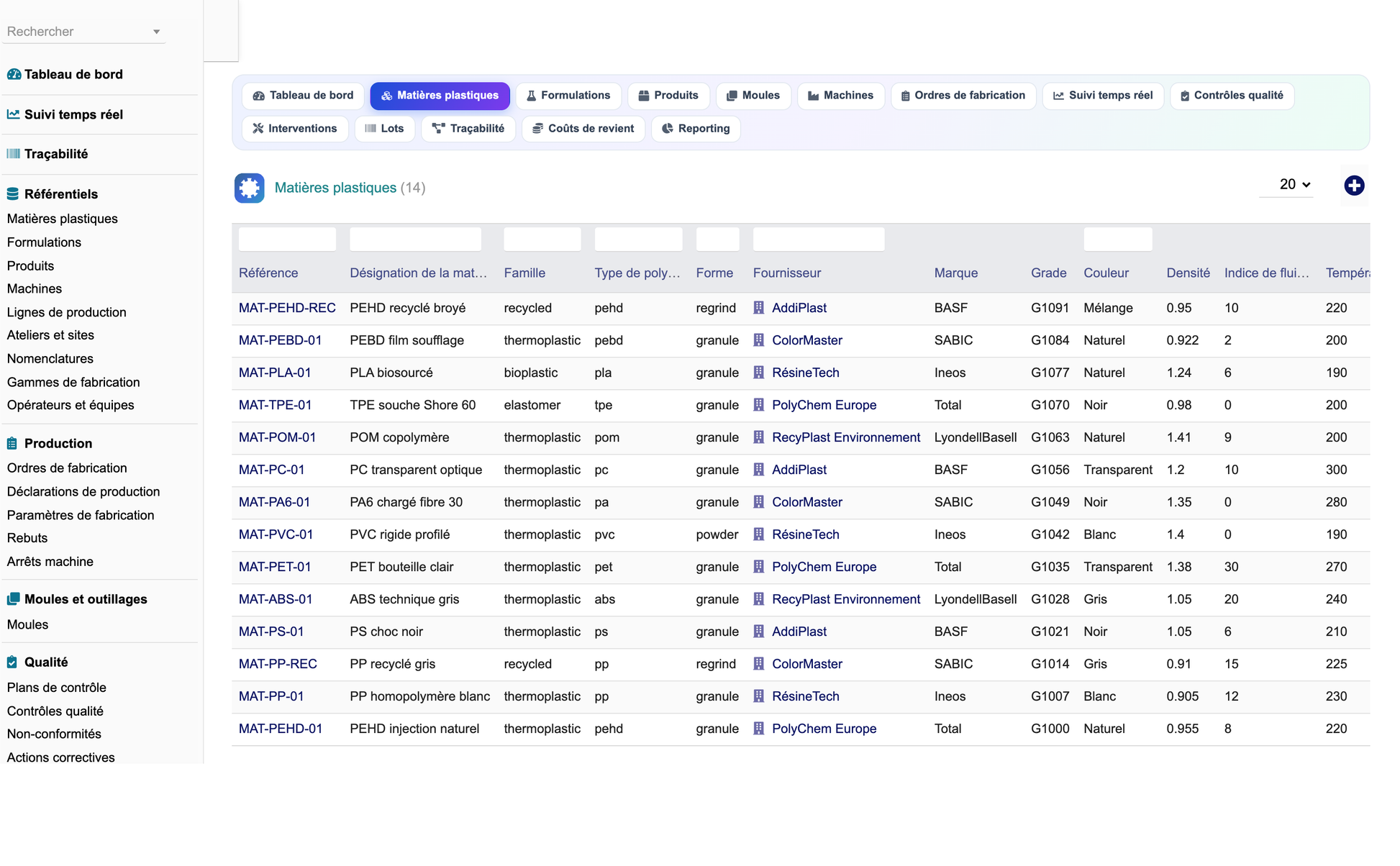

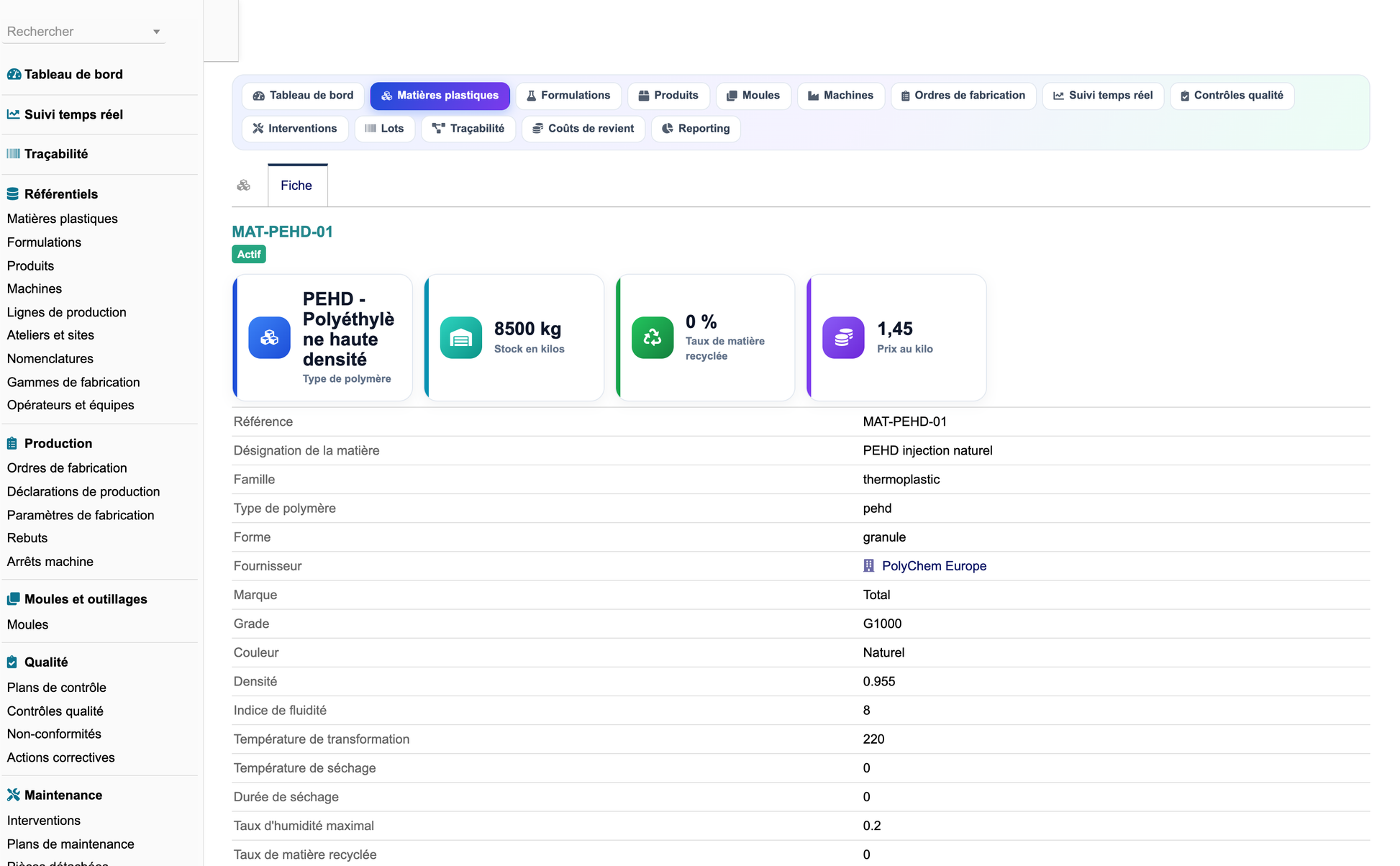

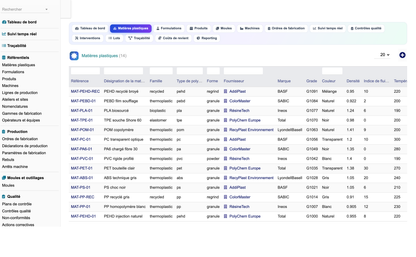

·       Plastic materials: HDPE, LDPE, PP, PVC, PET, PS, ABS, PA, PC, POM, PMMA, TPU, TPE, PEEK, bioplastics and recycled materials, with density, melt flow index, processing/drying temperatures, mechanical properties, food-contact flag, certification, technical and safety datasheets, price and stock.

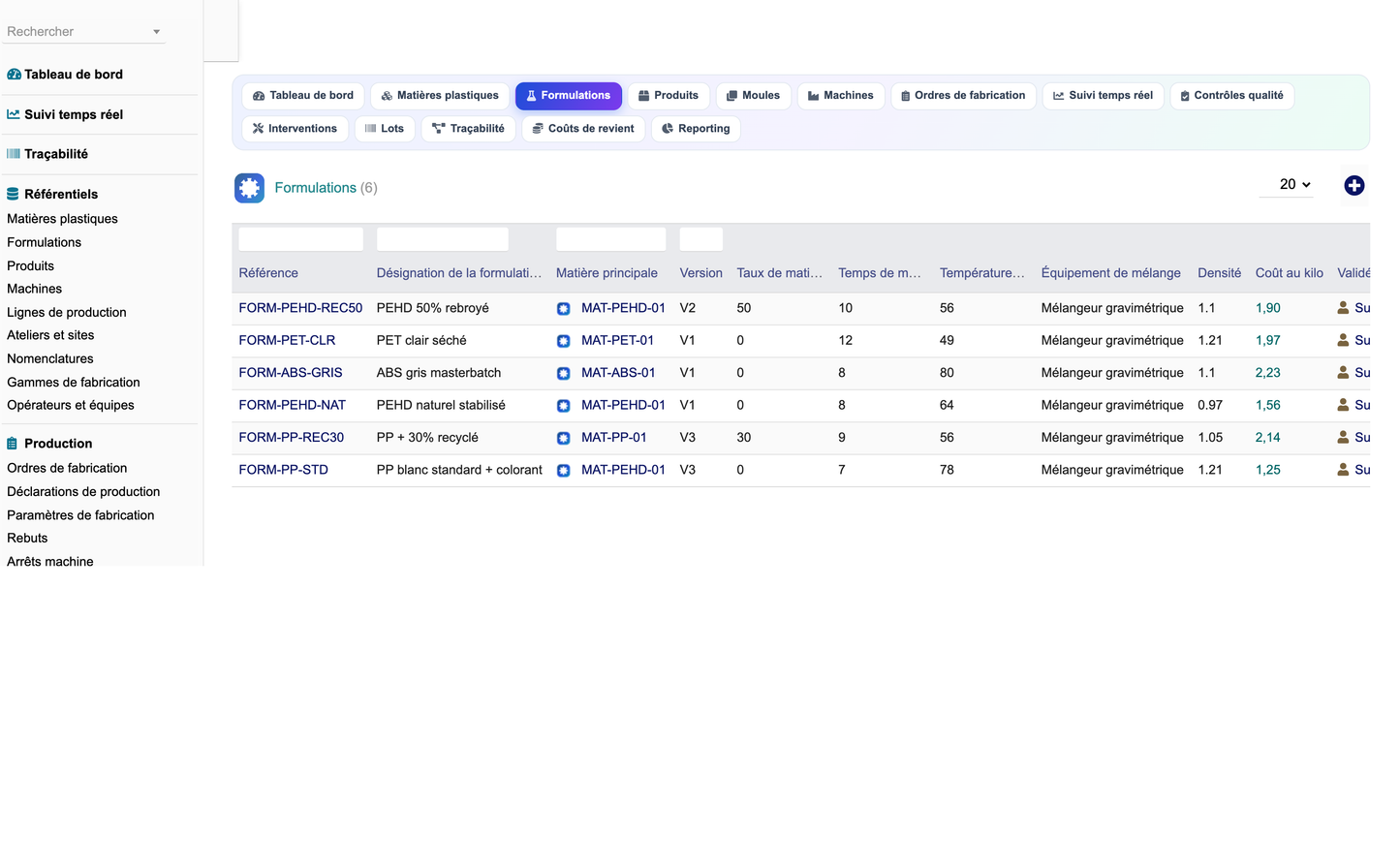

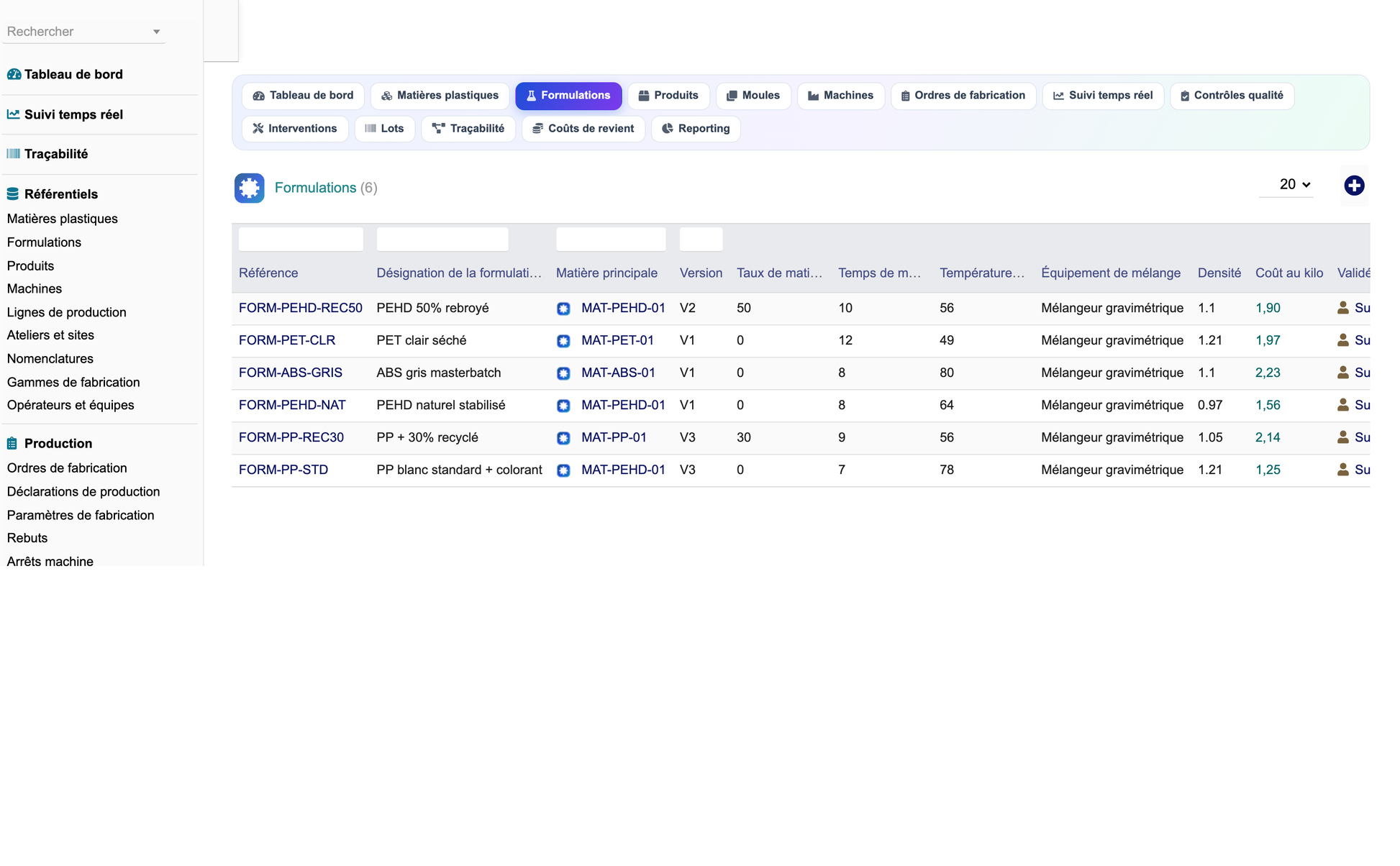

·       Formulations and blends: base material, recycled material, colorant, masterbatch, additives, stabilisers, fillers, plasticisers with percentage, tolerance and incorporation order; versioning and validation.

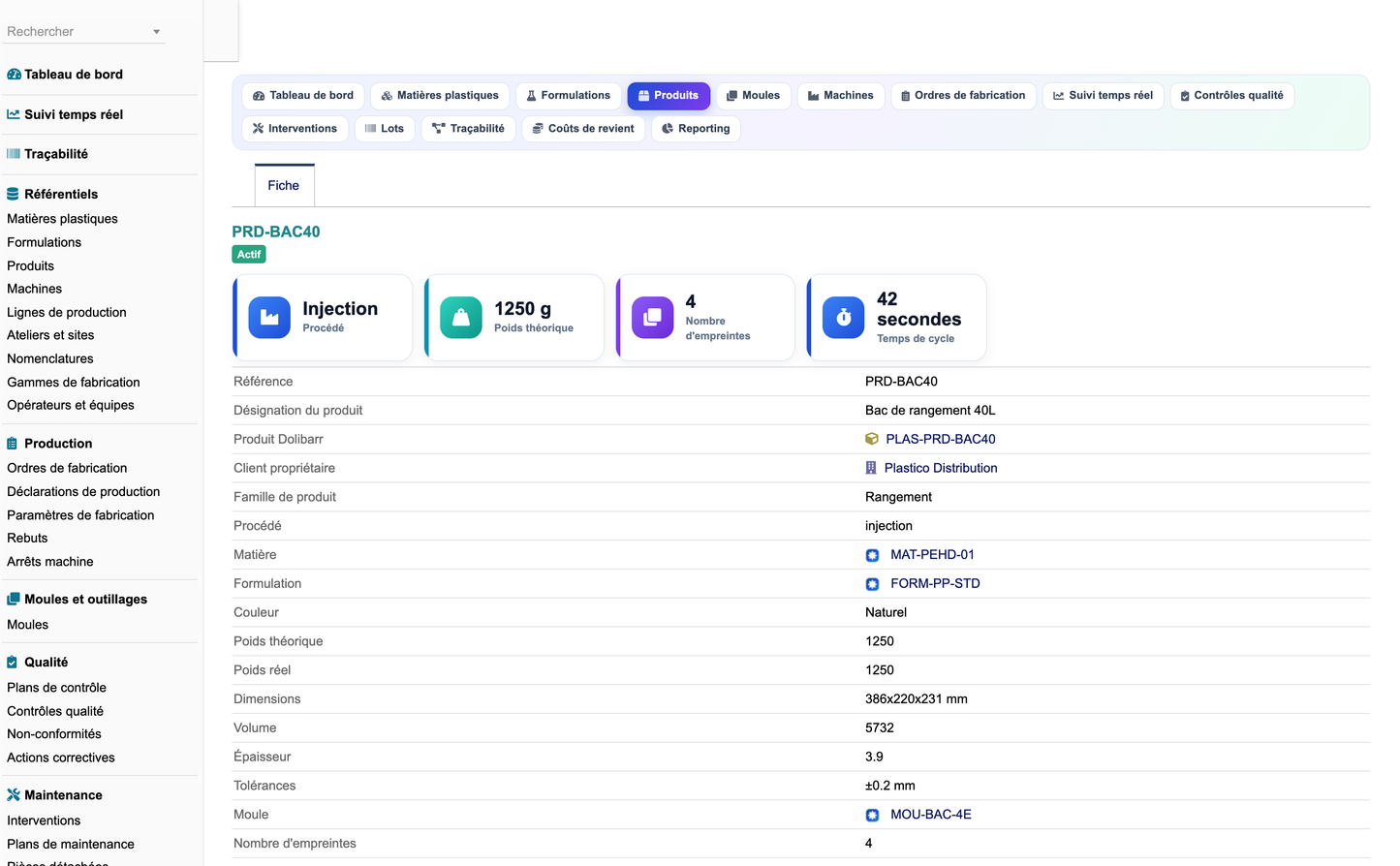

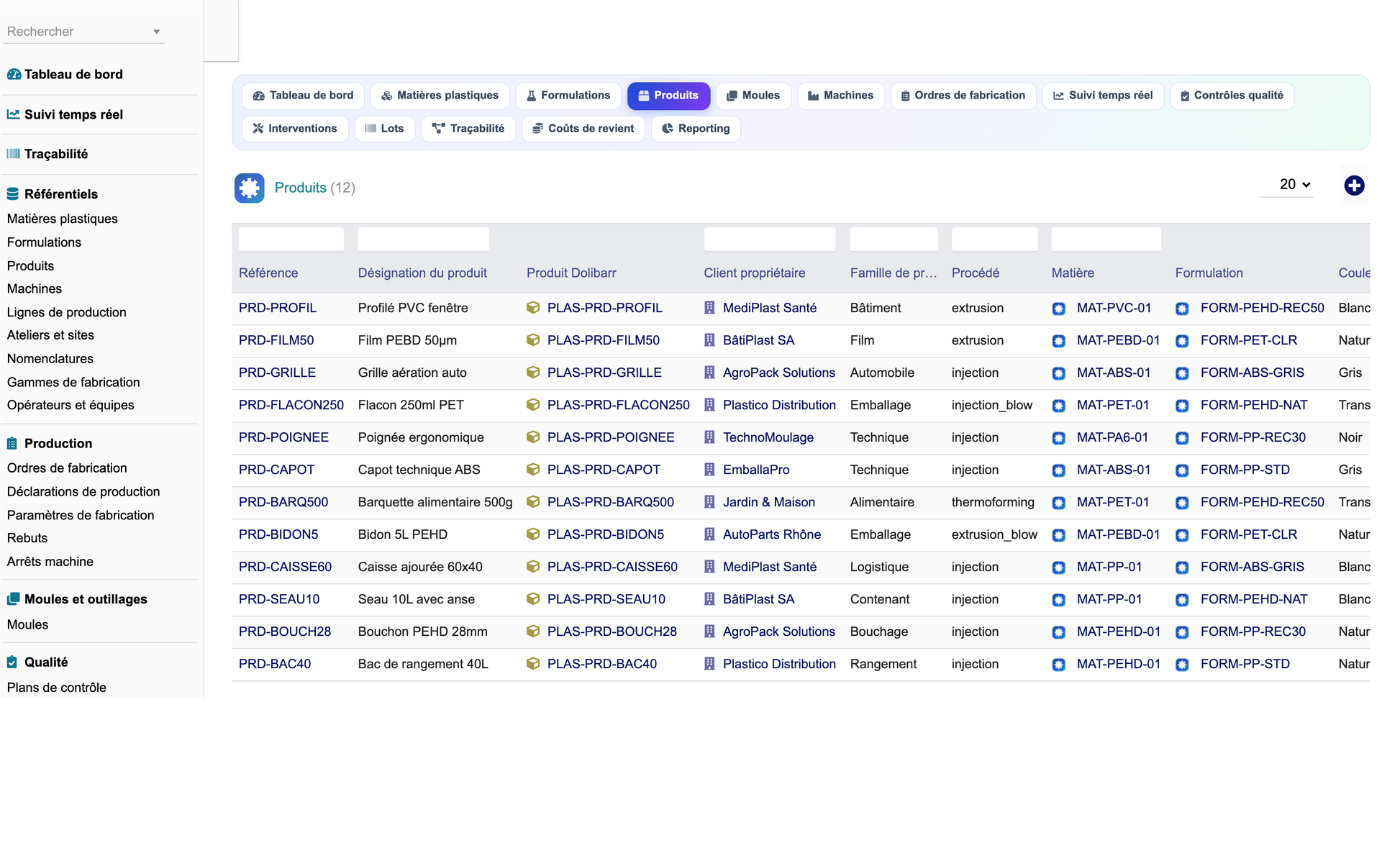

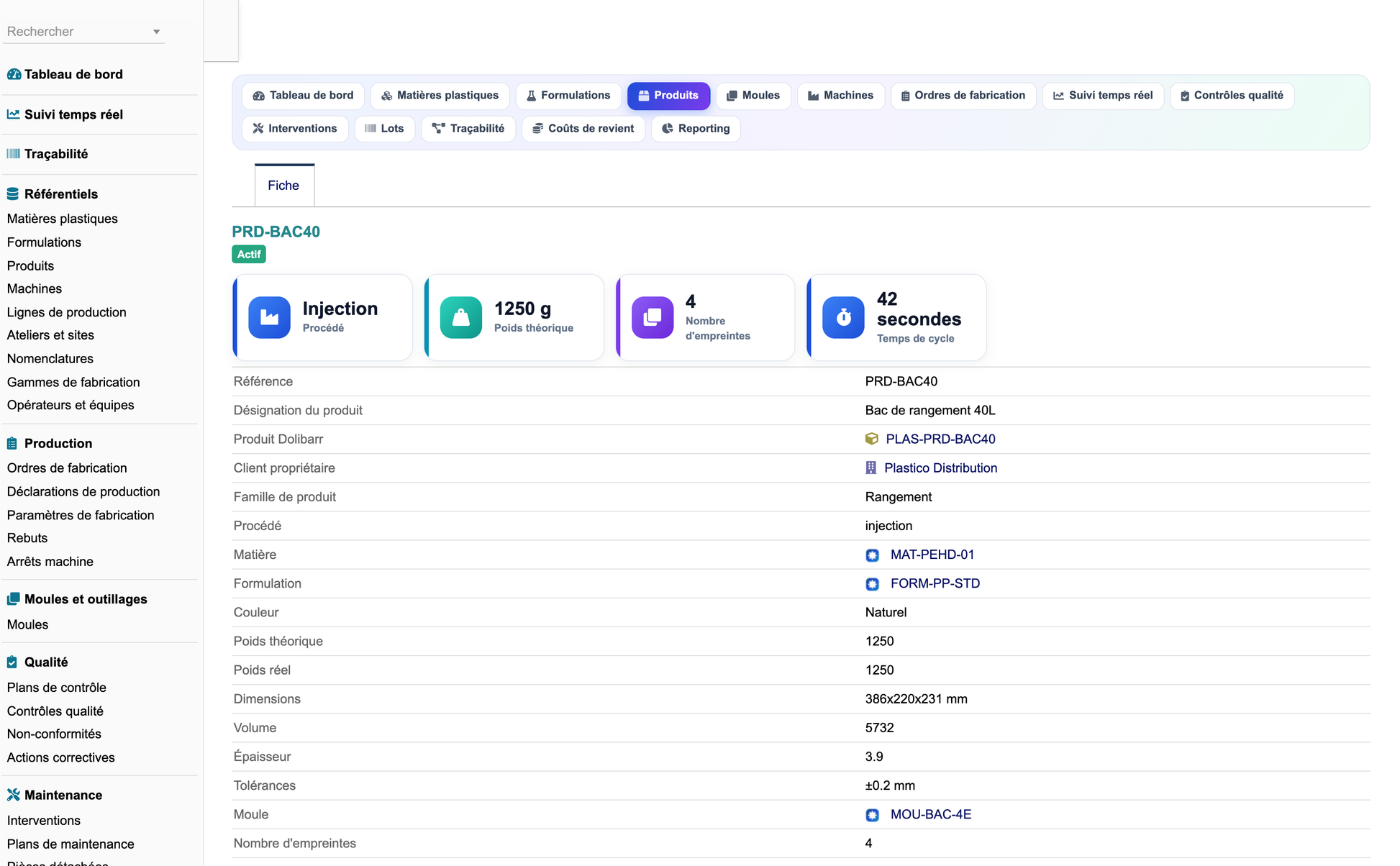

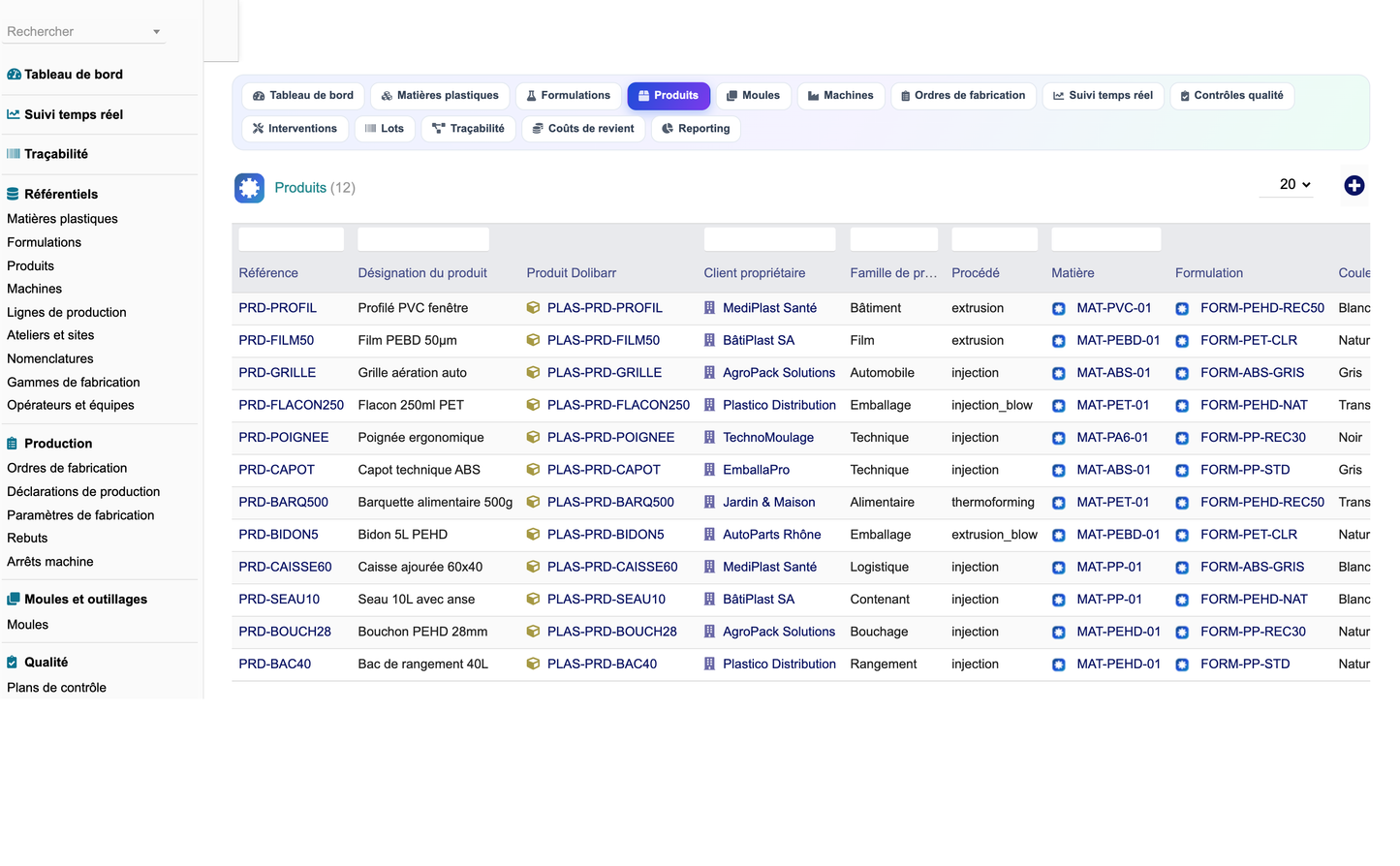

·       Products linked to native Dolibarr products, with process, material, mould, theoretical/real weight, dimensions, cavities, cycle time and version.

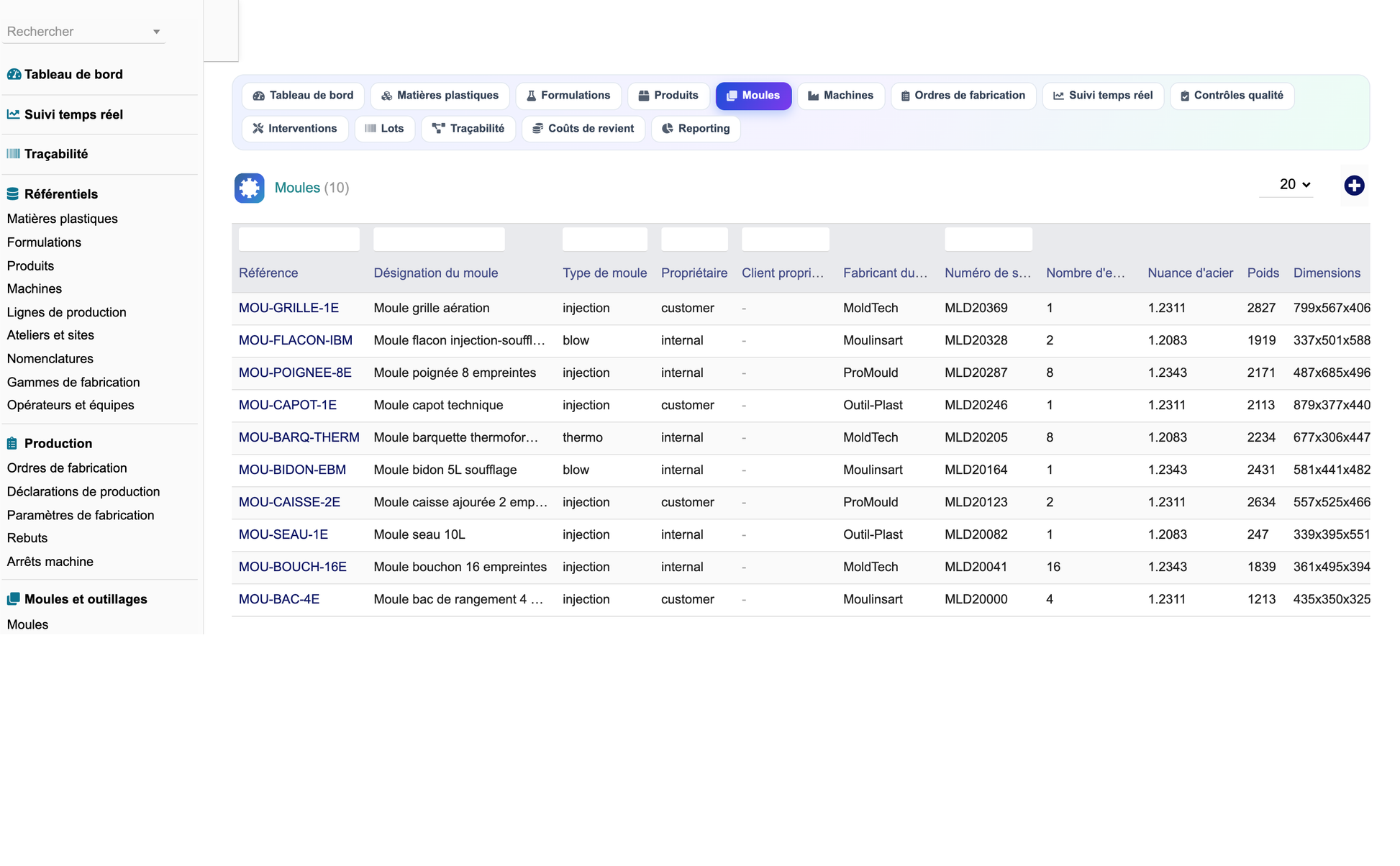

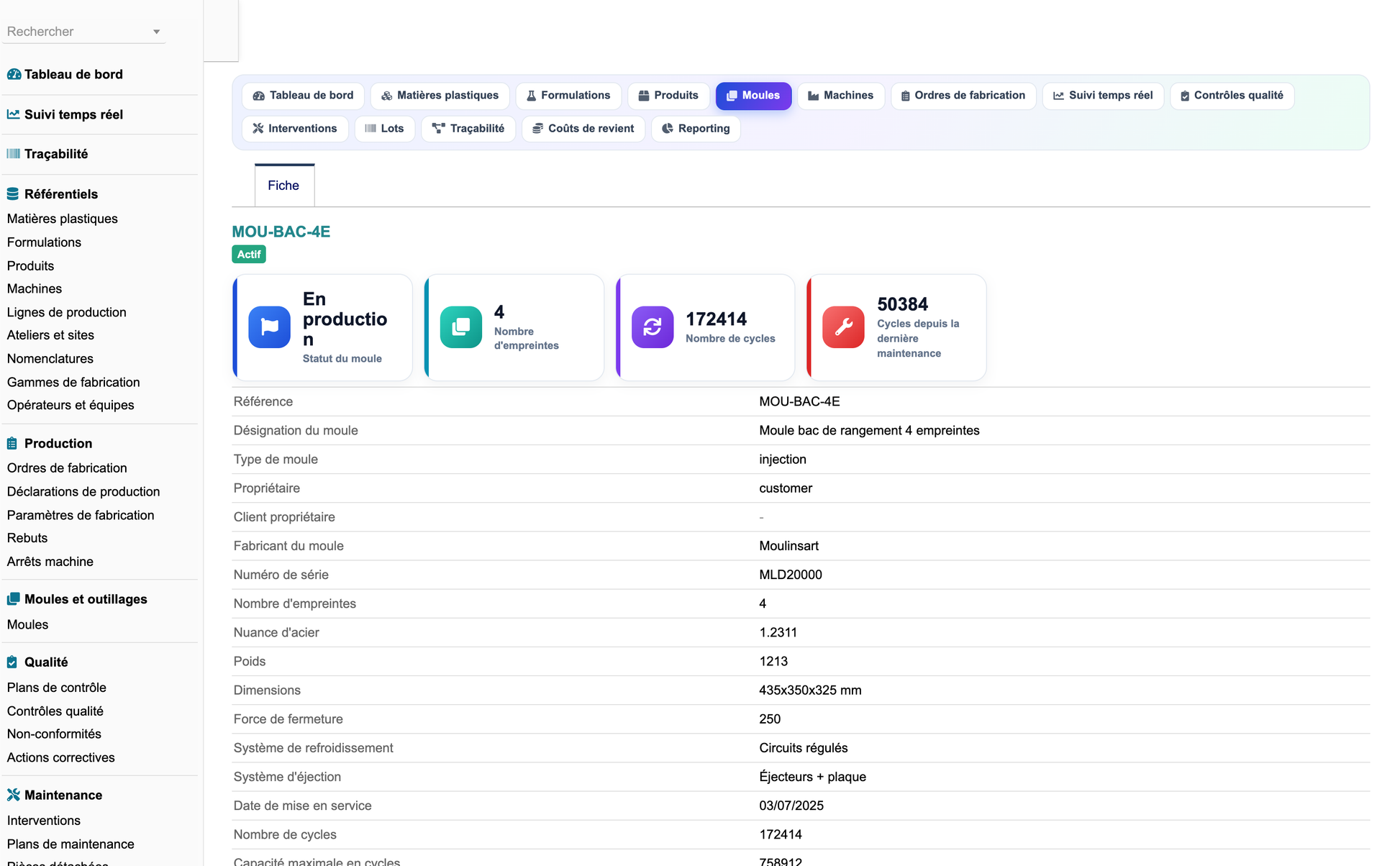

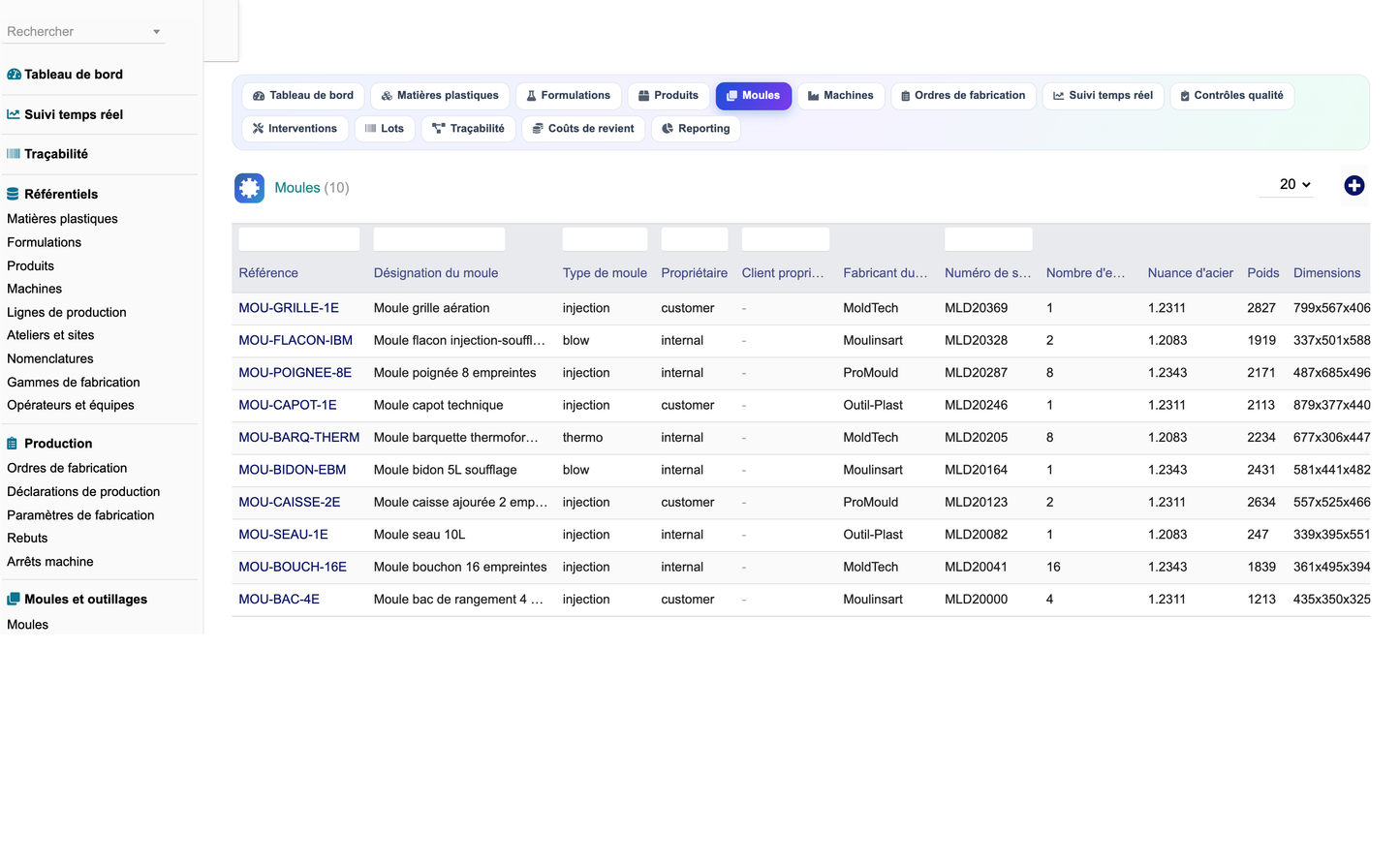

·       Moulds and tooling: type, owner, maker, cavities, clamping force, cooling/ejection systems, cycle counters, maintenance interval and lifecycle status.

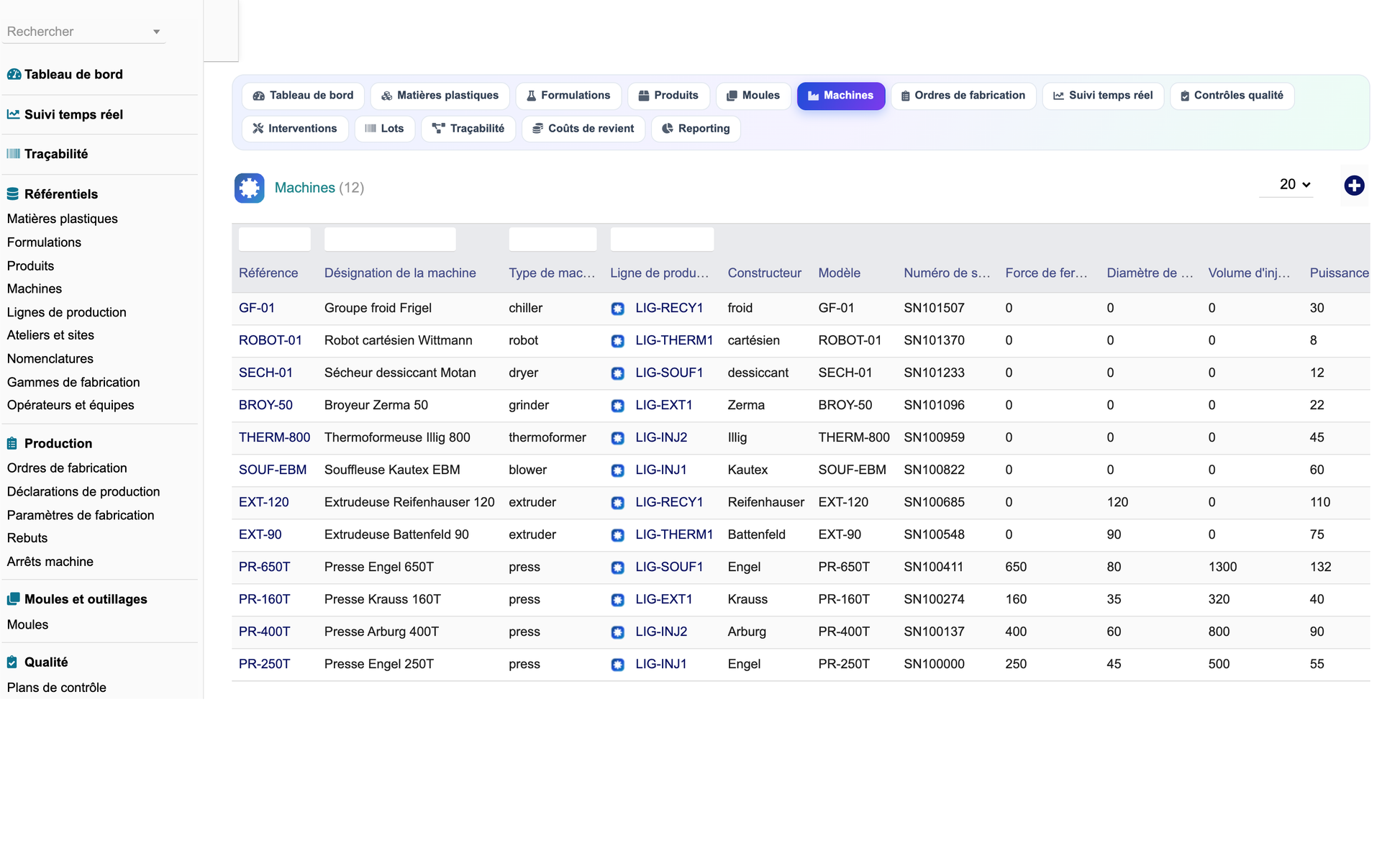

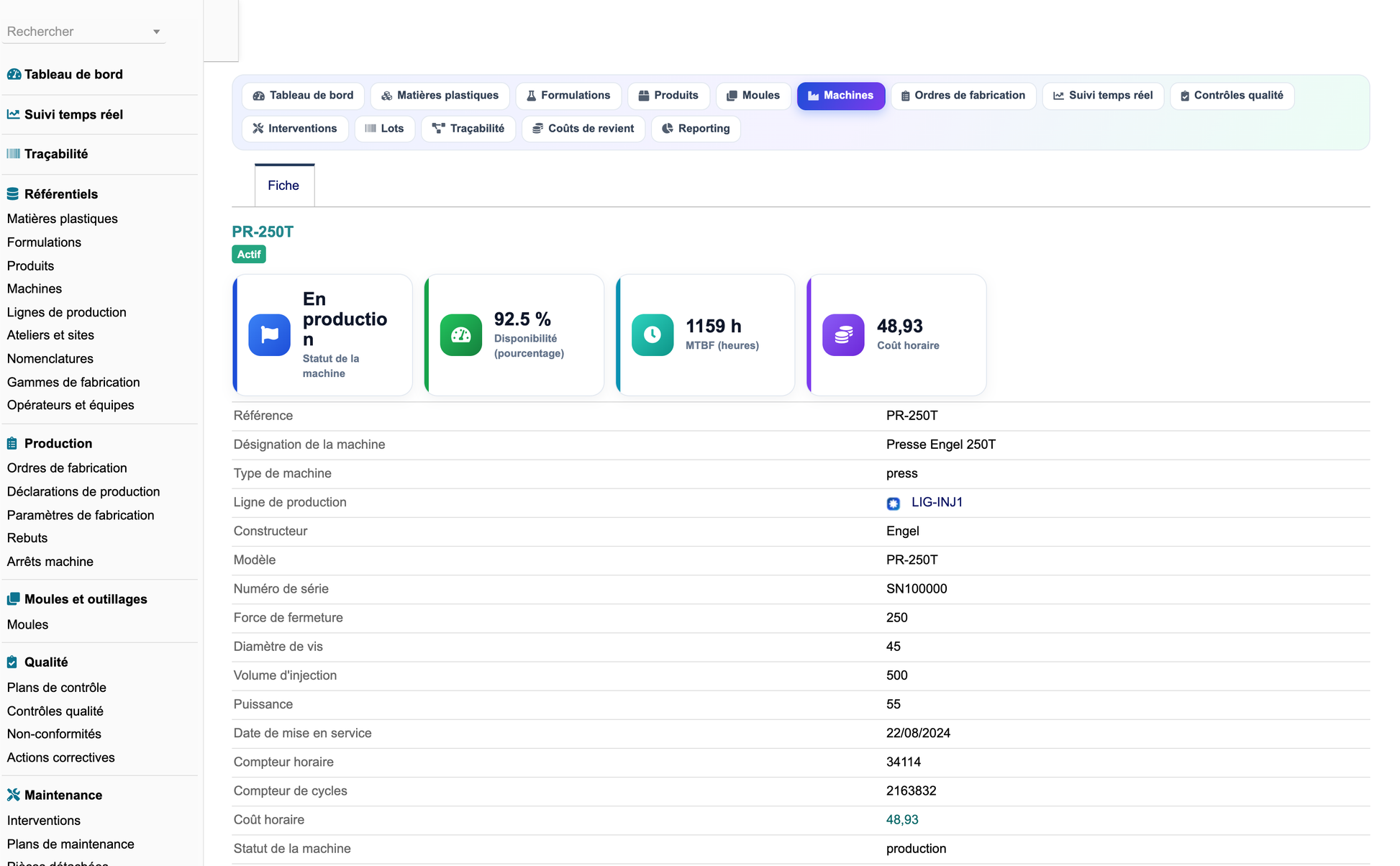

·       Machines: injection presses, extruders, blow moulders, thermoformers, robots, dryers, dosers, grinders, chillers, compressors, with availability, MTBF/MTTR and live status.

·       Production lines, workshops and sites, operators and teams.

6. Production (MRP / GPAO)

·       Multi-level bills of materials (virgin material, recycled material, colorant, additives, inserts, packaging) with loss rate and substitute material.

·       Manufacturing routings: material preparation, drying, dosing, mixing, feeding, transformation, cooling, demoulding, cutting, deburring, assembly, decoration, control, packaging, palletising — each with machine, setup and cycle time, rate and cost.

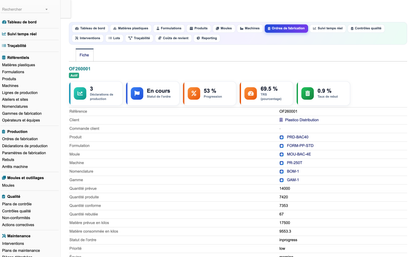

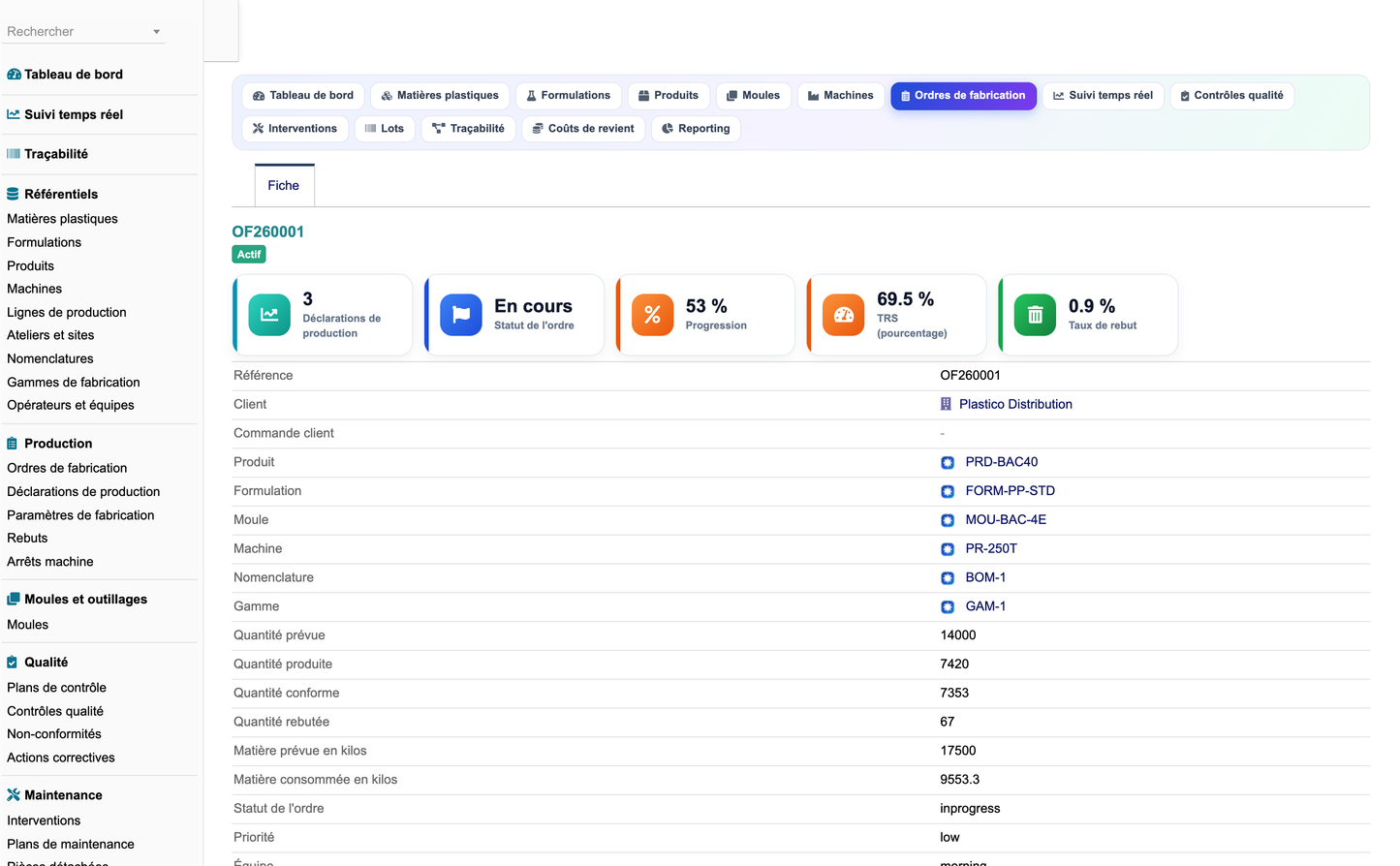

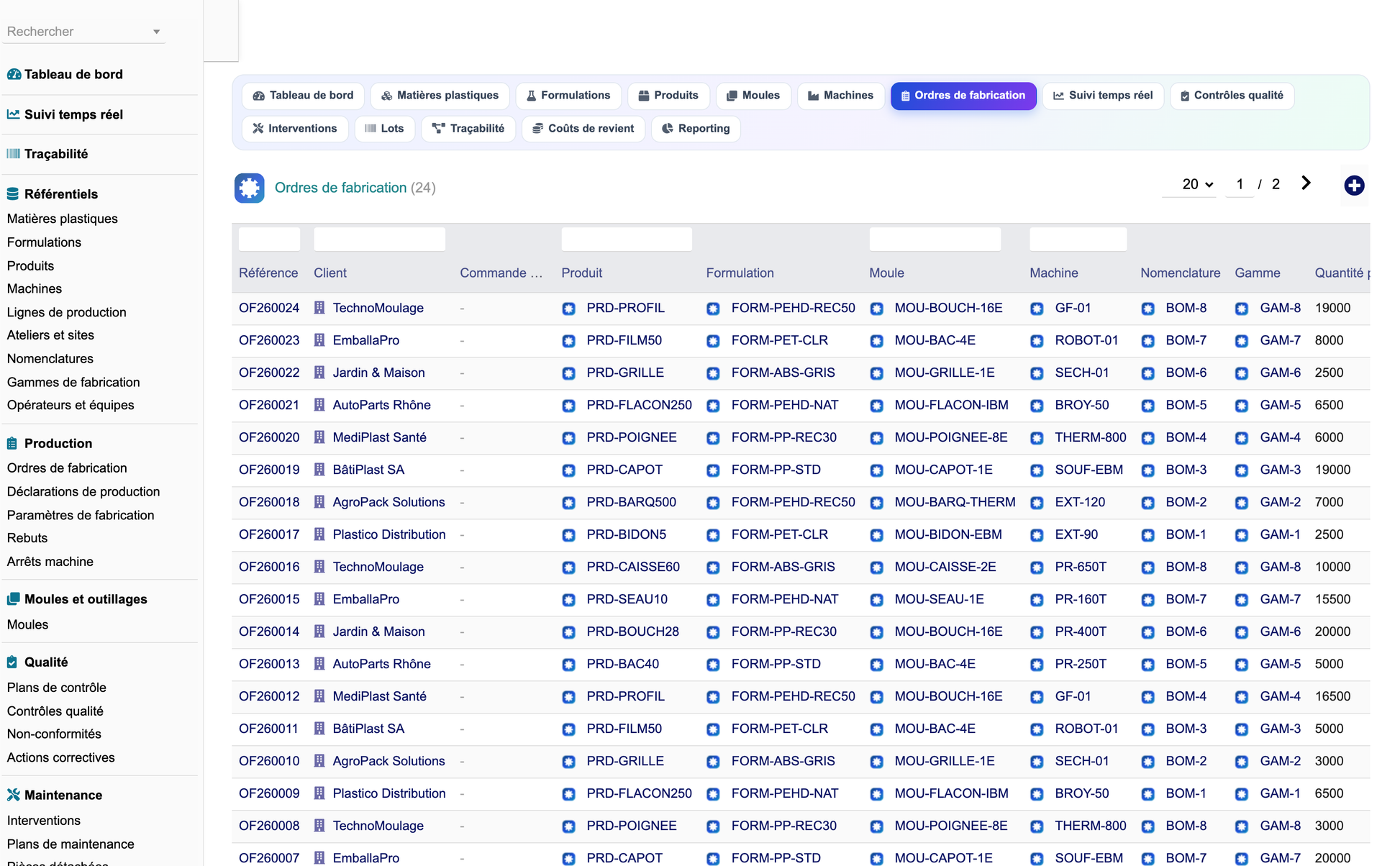

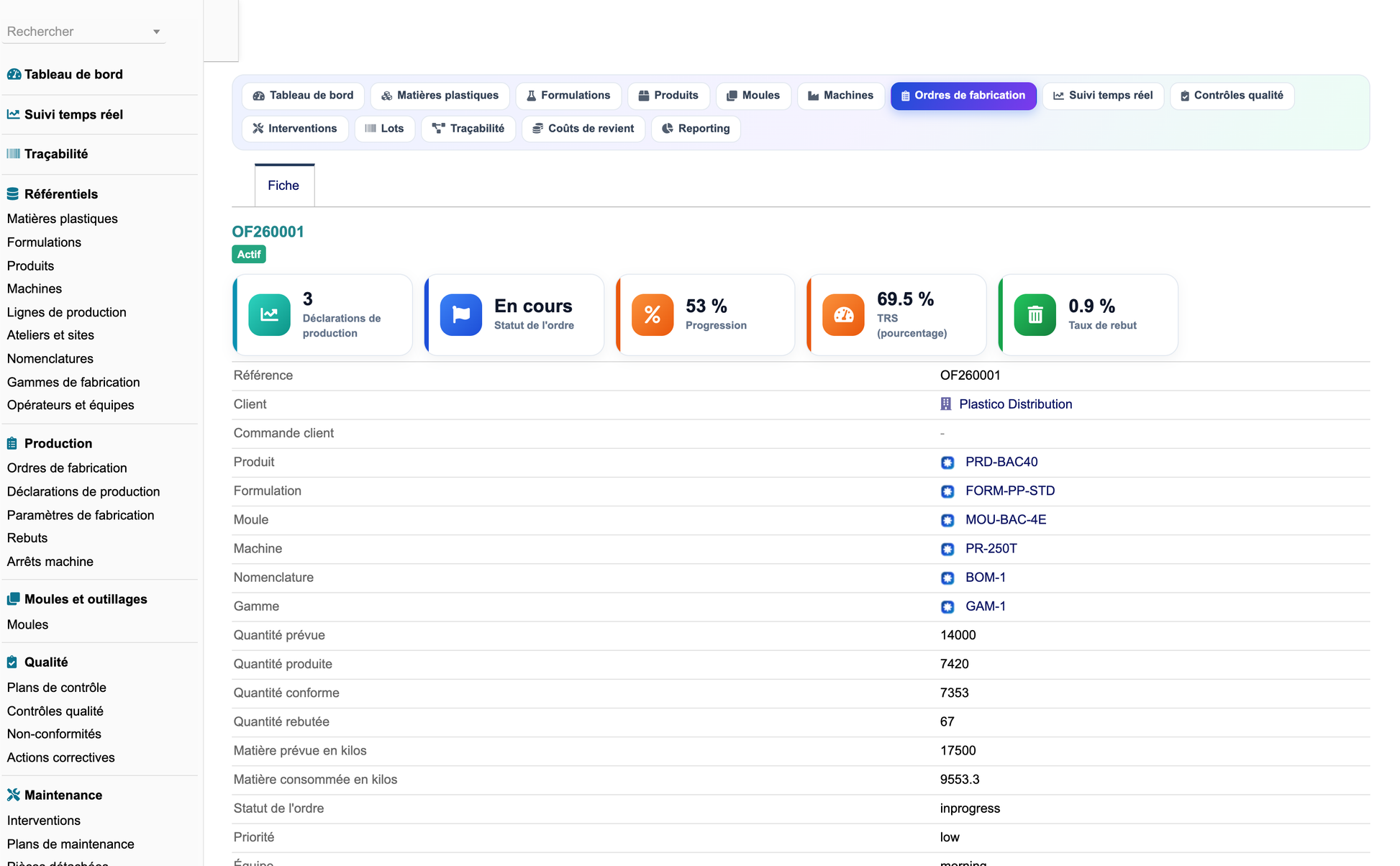

·       Manufacturing orders with a full lifecycle (draft, planned, validated, materials reserved, in preparation, ready, launched, in progress, suspended, finished, controlled, closed, cancelled).

·       Real-time production declarations, process parameters (zone temperatures, mould temperature, injection/holding pressure, injection speed, holding/cooling time, cycle time, clamping force, screw speed, back pressure, dosing, blow pressure, line speed, energy).

·       Scrap records by product, order, machine, mould, cavity, cause and destination; machine stops by cause and type.

7. Quality

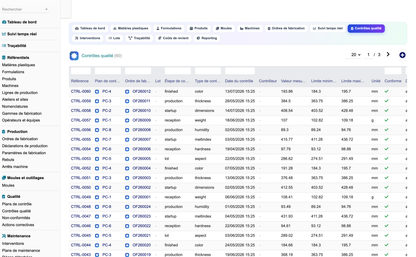

·       Control plans for raw materials, blends, production start-up, in-process, finished goods, lots and shipments.

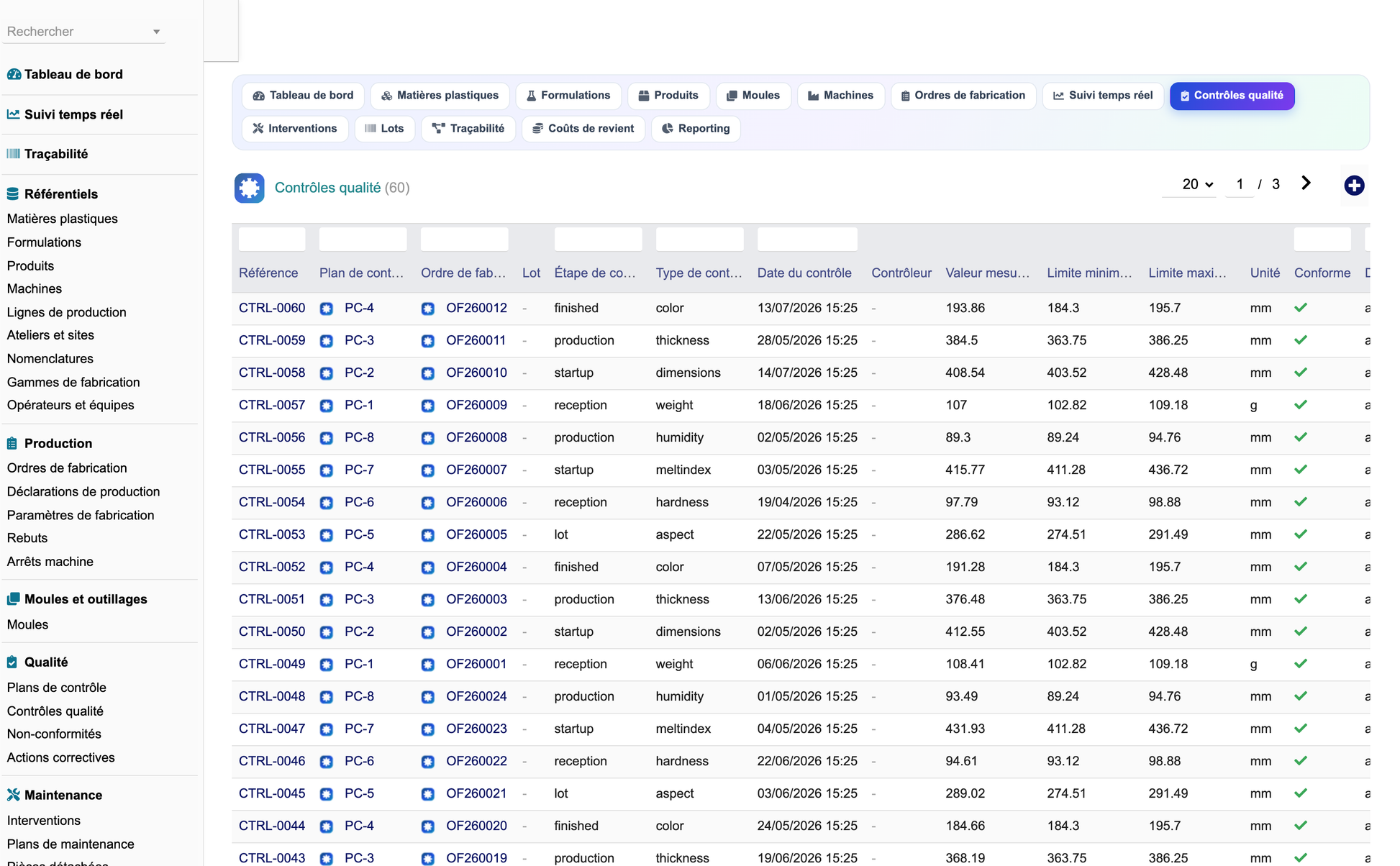

·       Controls: weight, dimensions, thickness, colour, appearance, strength, hardness, tightness, tensile, impact, temperature, melt flow index, humidity, material and packaging conformity.

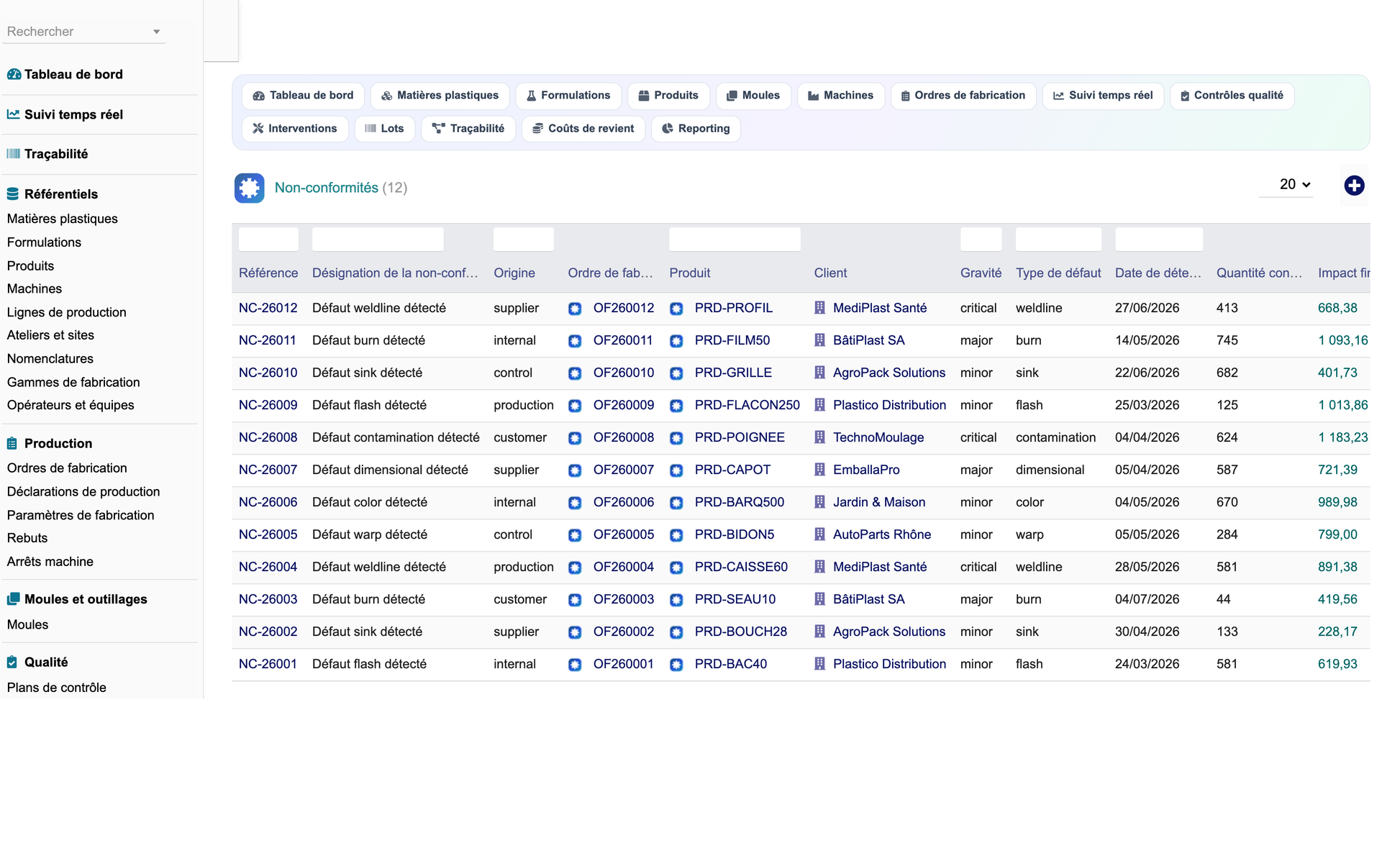

·       Non-conformities (internal, supplier, customer complaint) with severity, defect type, affected quantity, financial impact and root cause.

·       Corrective and preventive actions (CAPA), concessions and conformity certificates.

8. Maintenance (CMMS / GMAO)

·       Preventive, corrective and condition-based maintenance on machines and moulds.

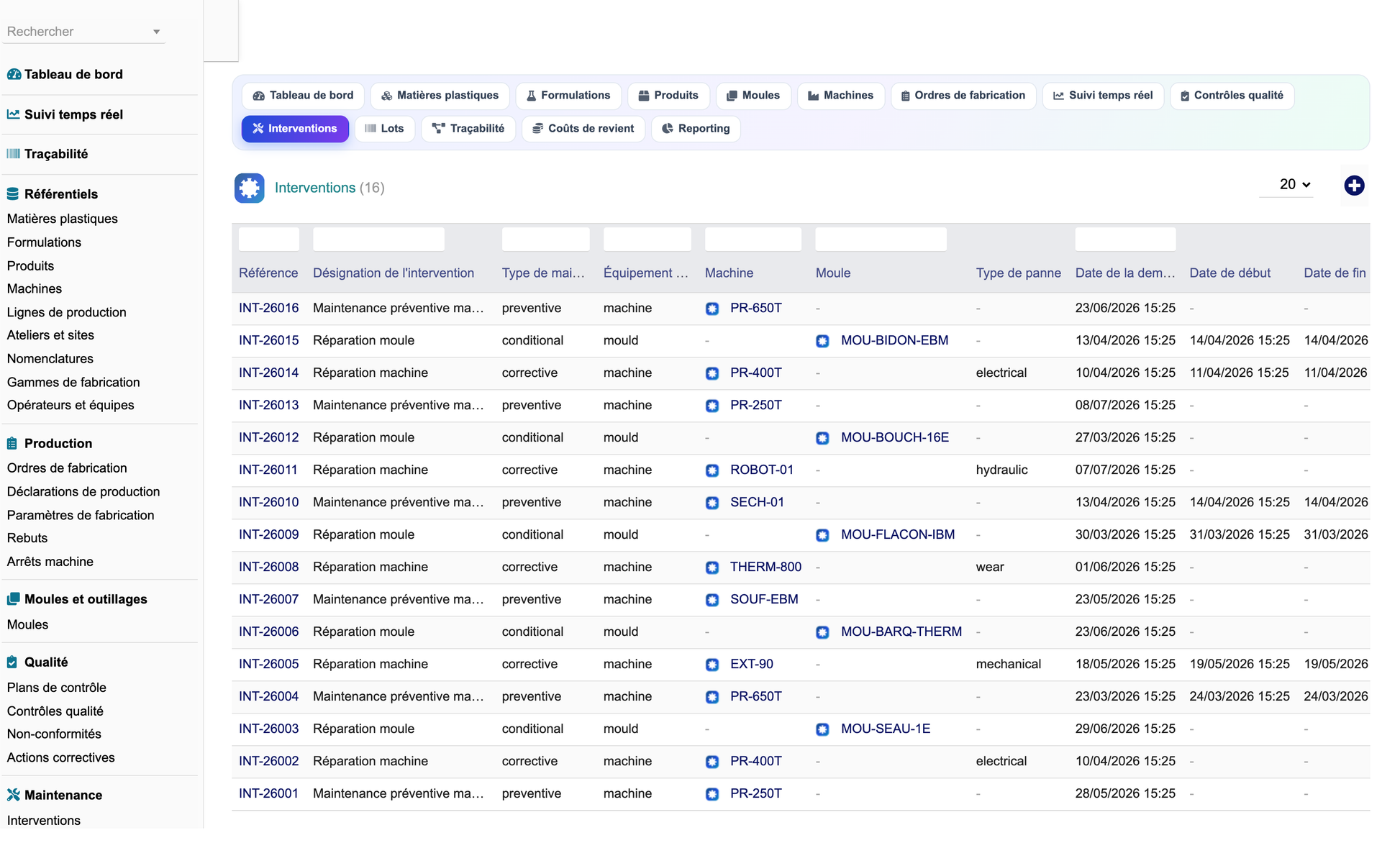

·       Work orders, breakdowns, technicians and providers, spare parts, costs and downtime.

·       Preventive plans triggered by calendar, hour counter or cycle counter; MTBF, MTTR and availability indicators.

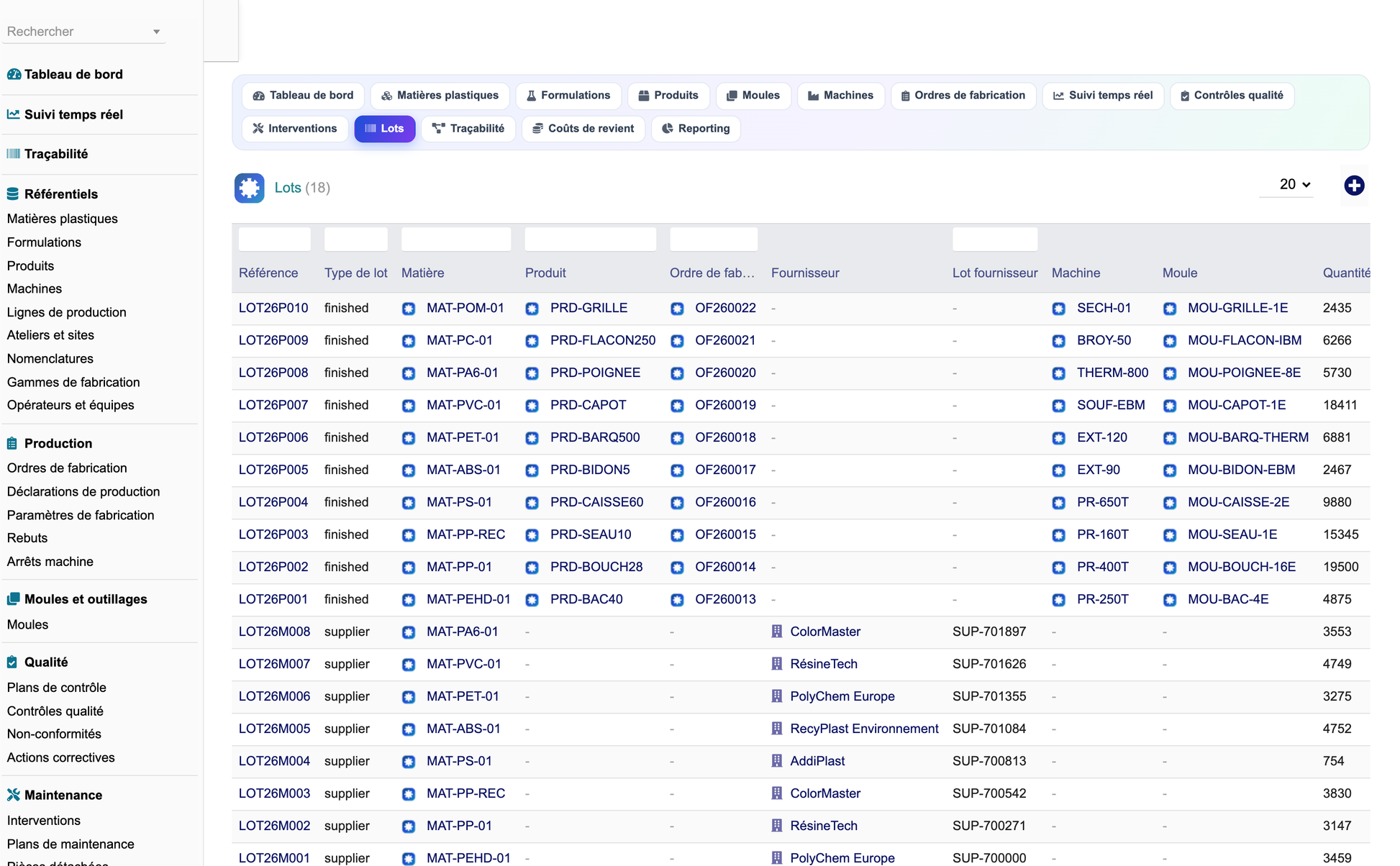

9. Stock and traceability

·       Lots for supplier materials, internal materials, blends, semi-finished and finished products, regrind and waste.

·       Lot statuses: quarantine, released, blocked, consumed, shipped, expired; production and expiry dates.

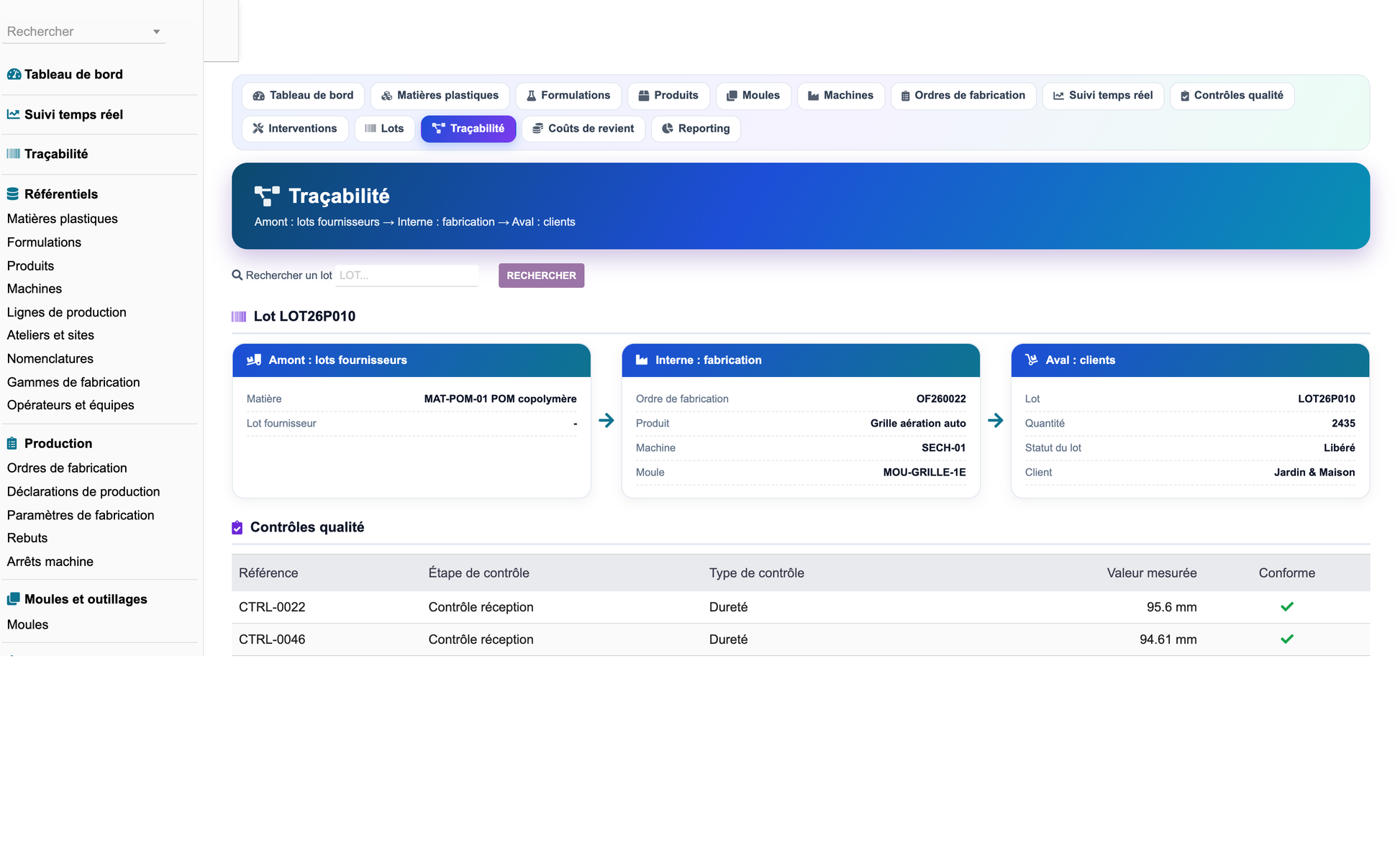

·       One-click traceability chain: supplier lot -> material -> manufacturing order -> machine / mould -> finished-product lot -> customer, with the linked quality controls.

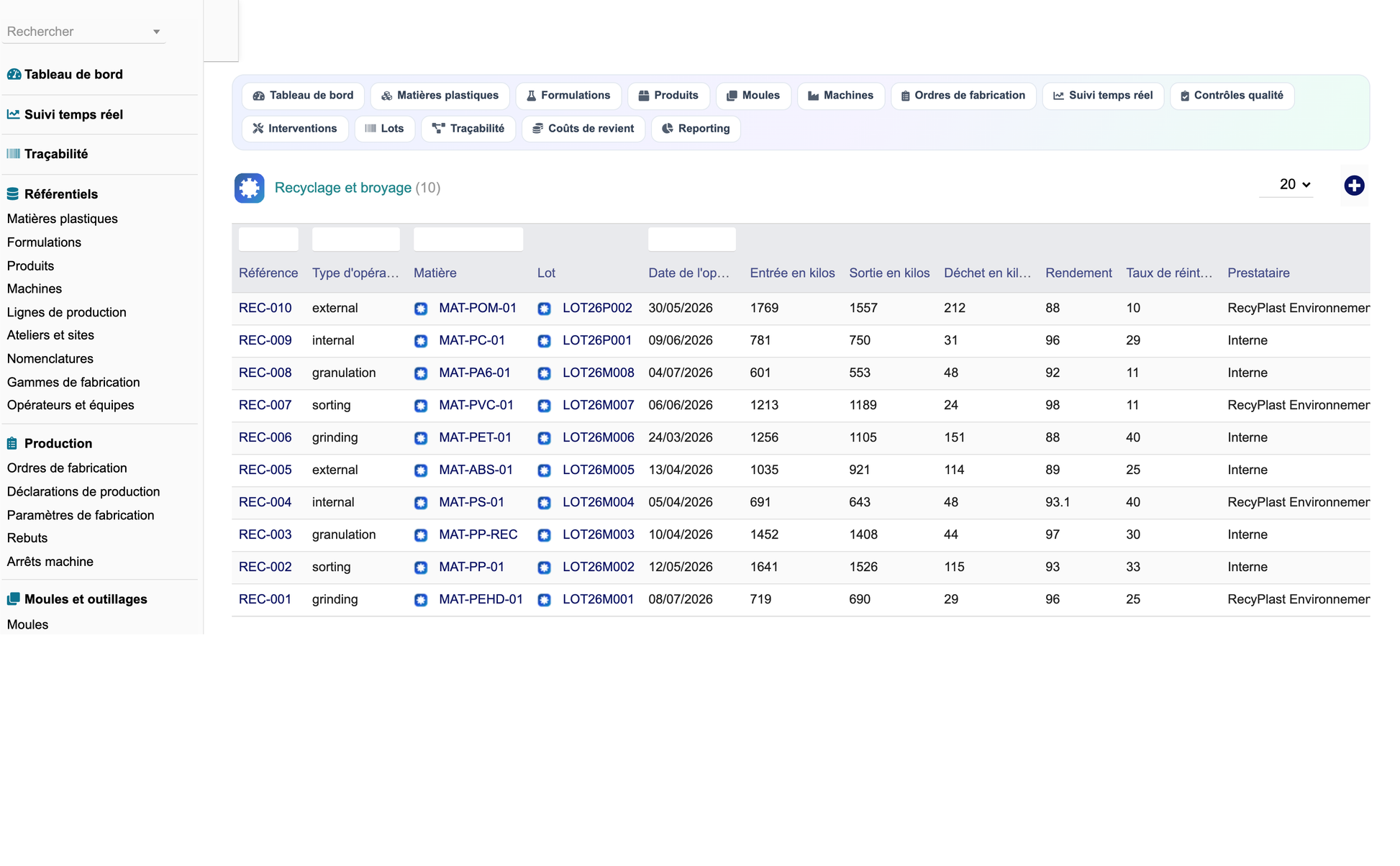

·       Recycling and grinding operations with input/output/waste, yield, reintegration rate, provider and recovery certificate.

10. Purchasing, sales and cost

·       Approved-supplier register with conformity rate, on-time rate, rating, audit and certificate expiry.

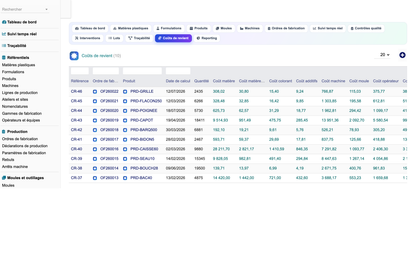

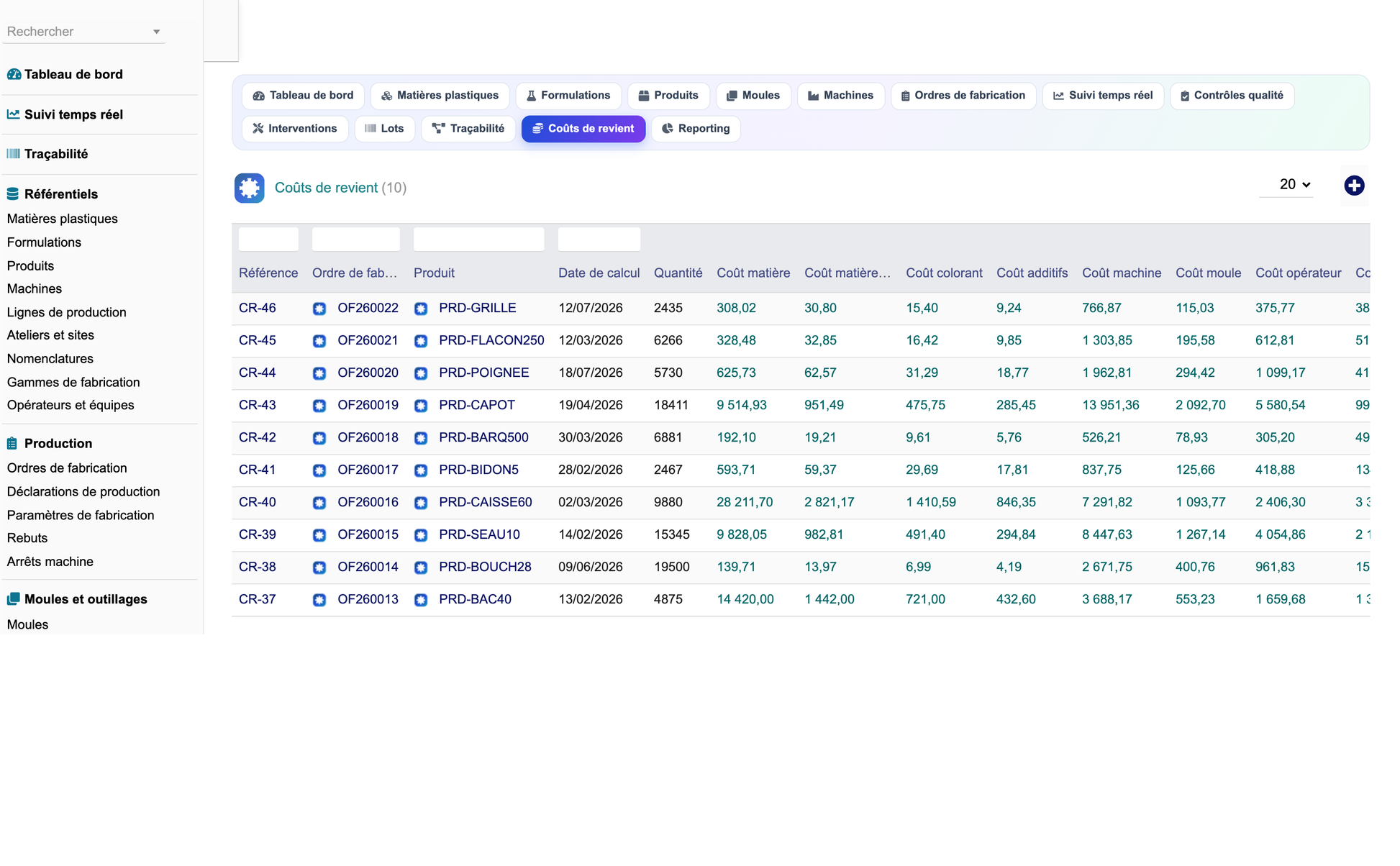

·       Cost-price calculation: material, recycled material, colorant, additive, machine, mould, labour, energy, maintenance, quality, packaging, logistics, scrap and overhead; total cost, unit cost, invoiced price and margin.

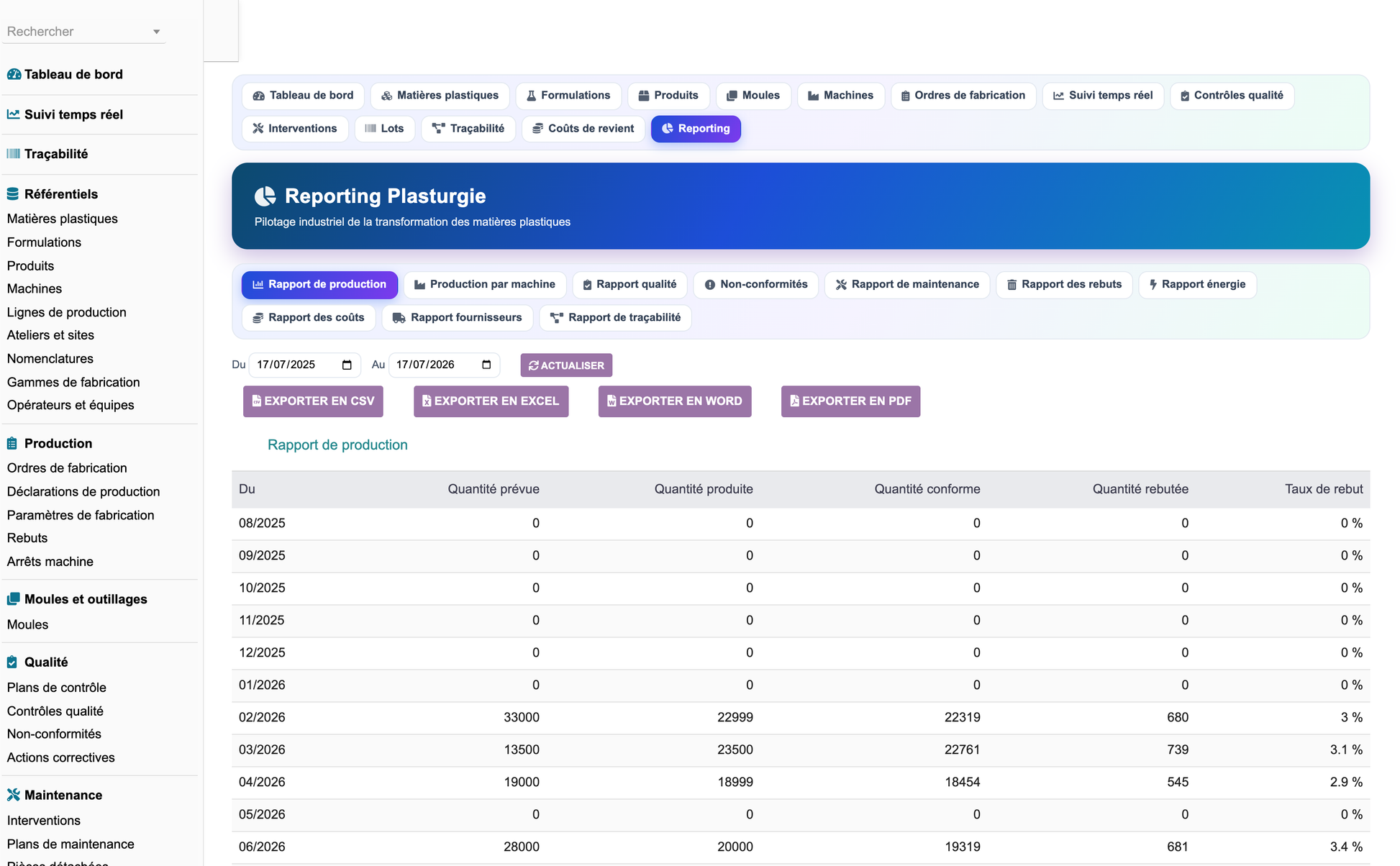

11. Reporting

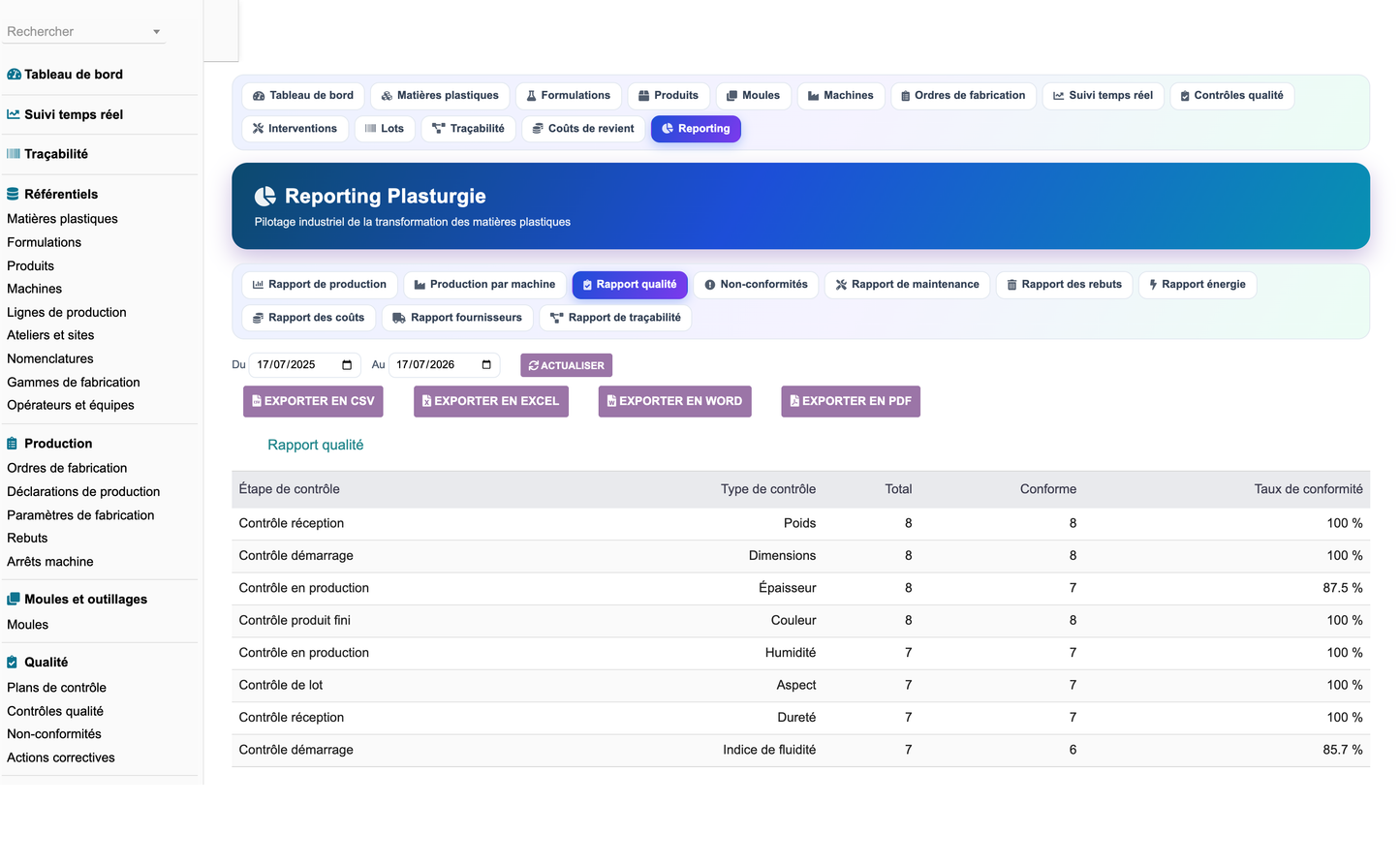

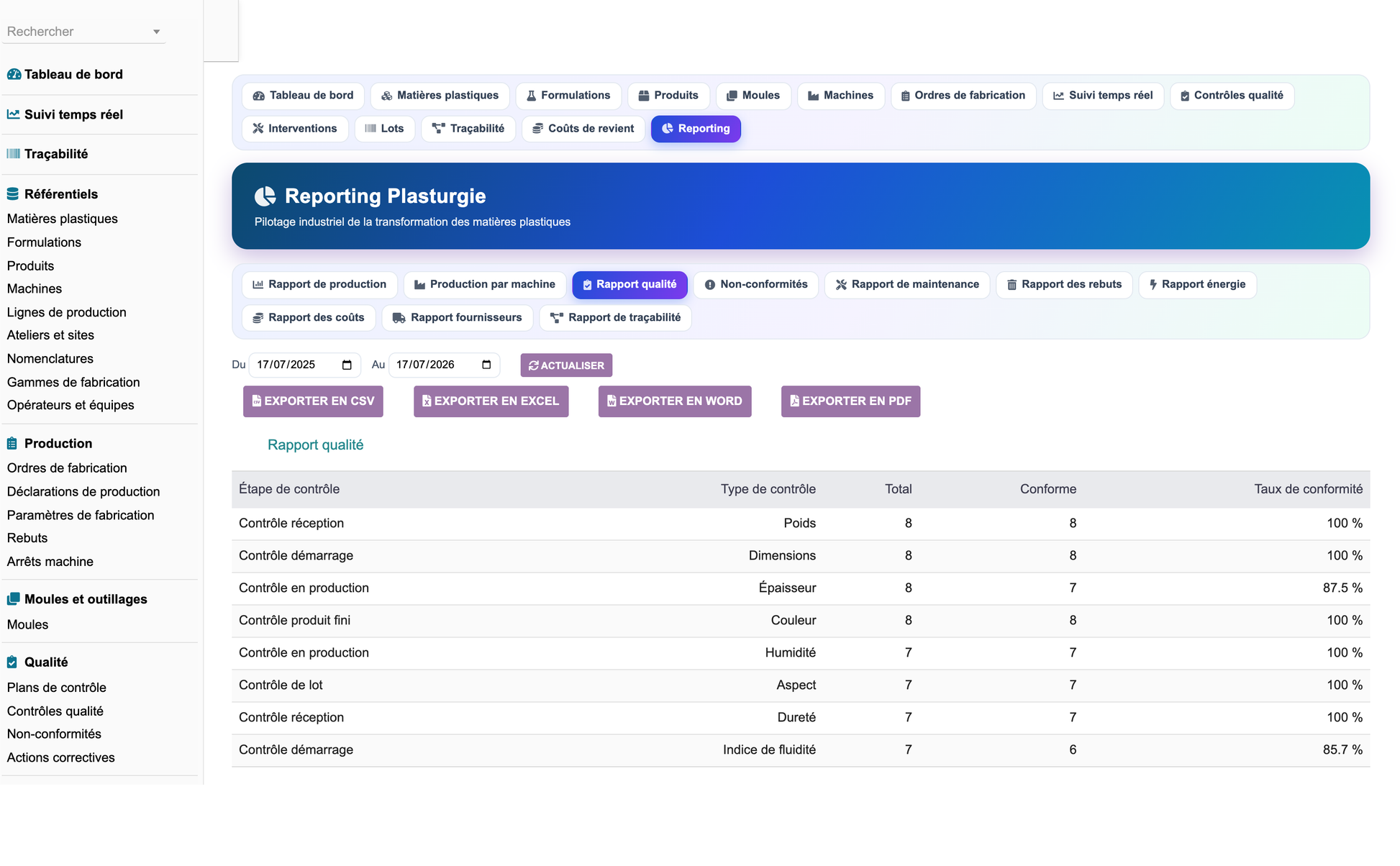

·       Reports on production, by machine, quality, non-conformities, maintenance, scrap, energy, cost, suppliers and traceability.

·       Multi-criteria date filters; export to CSV, Excel, Word and PDF.

12. REST API

·       Secured REST API (token authentication, permission-gated) exposing every object type, plus an aggregated production-KPI endpoint.

·       Sort-field whitelisting, entity isolation and technical-field cleaning on output.

13. PDF documents and automation

·       PDF models including the manufacturing-order traveler sheet (fiche suiveuse) and a generic record sheet, available from every object card.

·       Daily cron job raising alerts for lots reaching expiry and preventive-maintenance plans falling due.

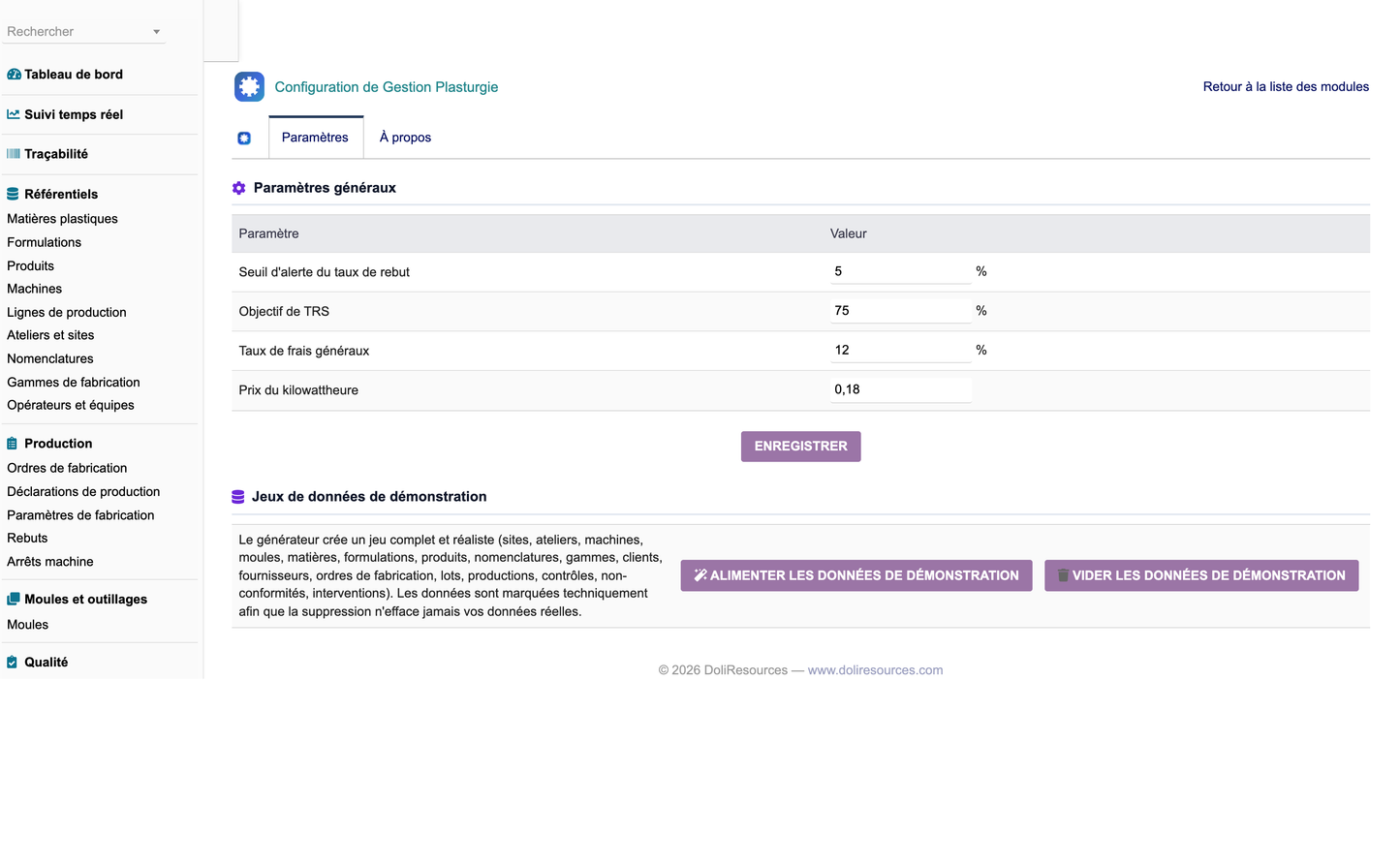

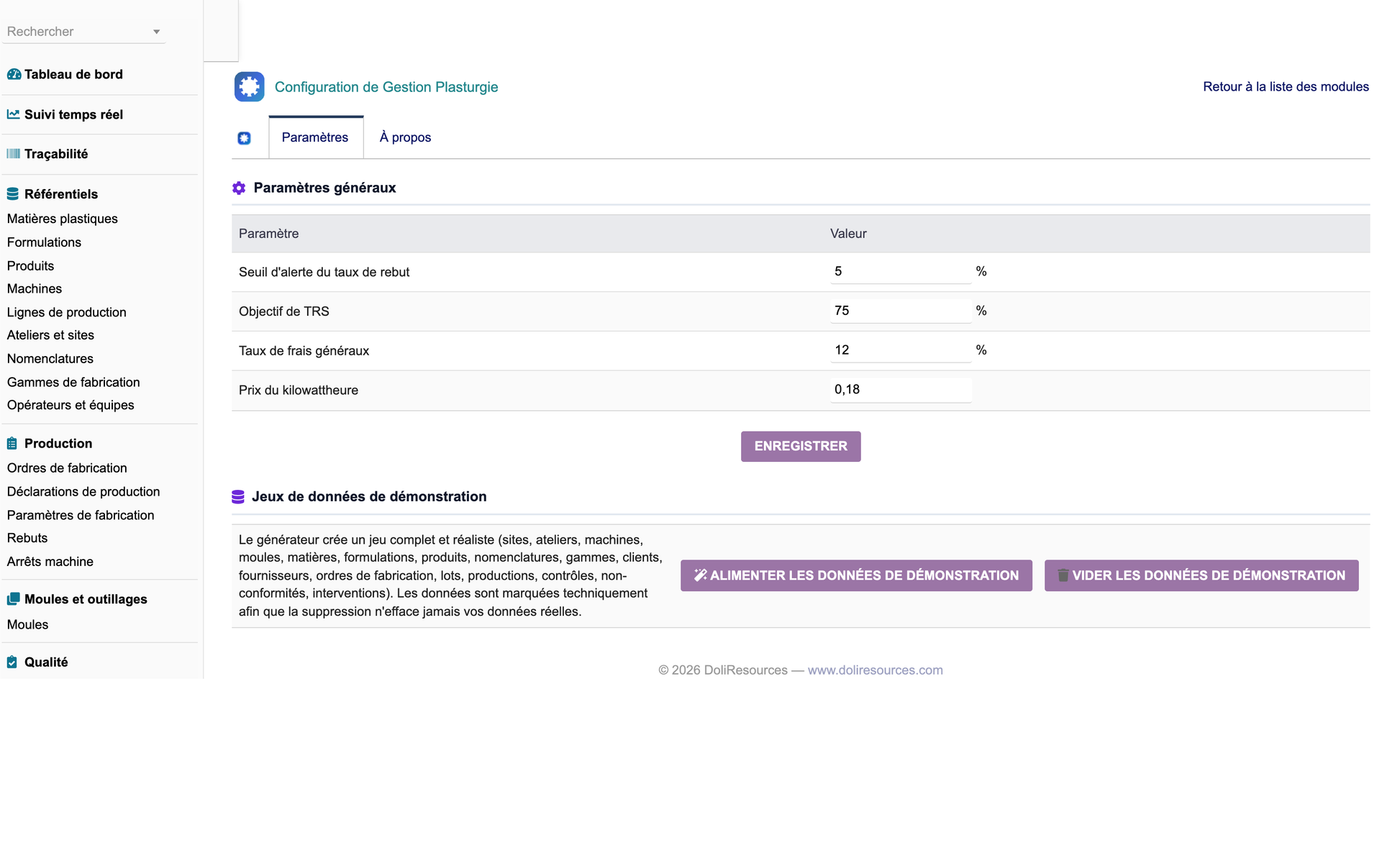

14. Demonstration data

A realistic, FK-coherent demonstration dataset can be installed and removed from the module configuration (workshops, machines, moulds, materials, formulations, products, BOMs, routings, customers, suppliers, manufacturing orders, production declarations, controls, non-conformities, work orders, lots, recycling, costs and energy).

All demonstration rows are technically tagged (import_key = PLASDEMO) so that removal never deletes real records.

15. Security and performance

·       CSRF and XSS protection, prepared/escaped queries, data validation, permission checks, action logging and API protection.

·       Optimised SQL with indexes, pagination, AJAX and cached charts.
